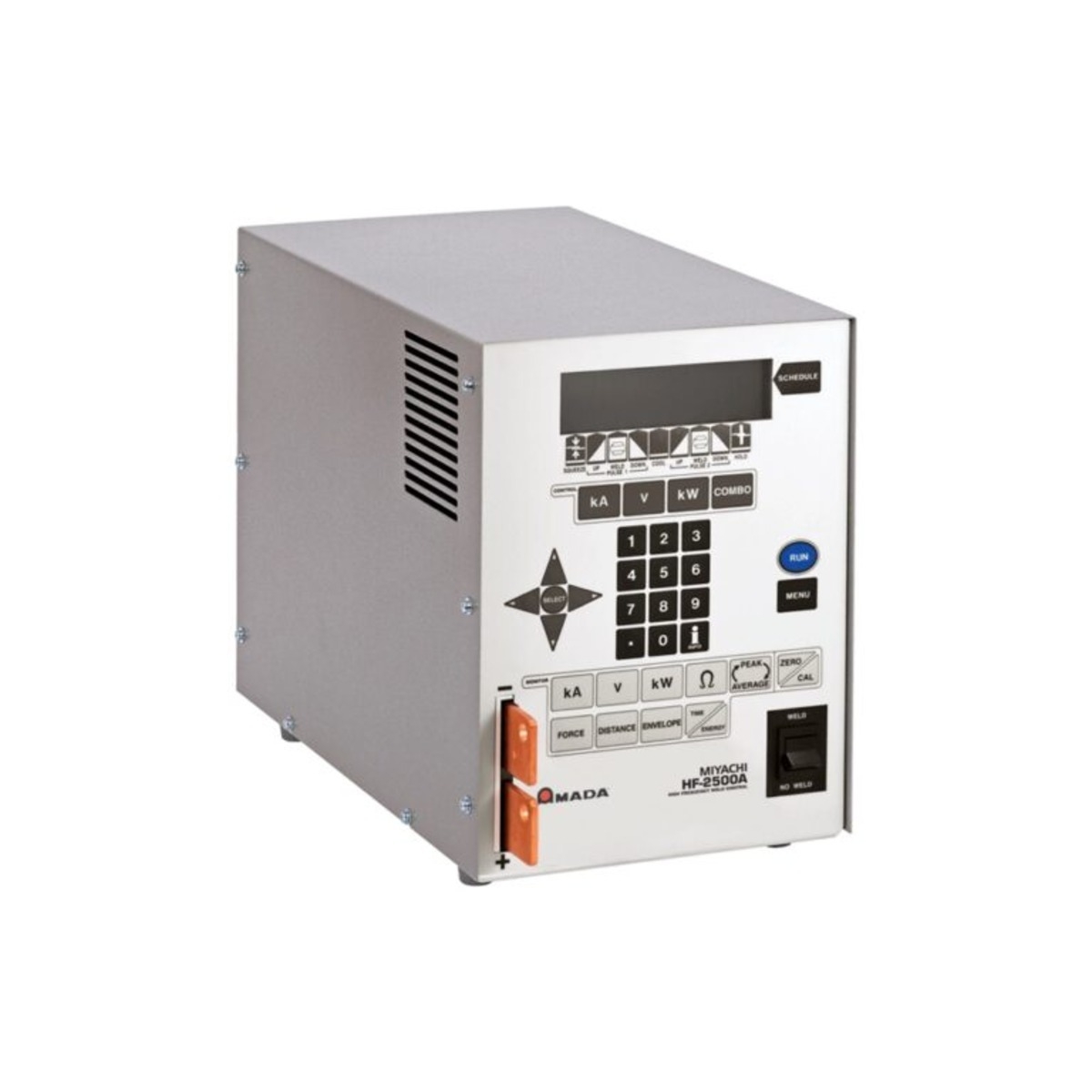

AMADA – High Frequency Welding Control – HF-2500A/ HF-2700A
The HF-2500A high frequency inverter spot welder addresses the challenges of micro welding for a wide range of applications. Precise control of weld energy with high speed closed loop feedback and weld quality tools ensure high yields for the most demanding welding applications.
Built in the USA, the HF-2500A high frequency inverter spot welder may be used in conjunction with one of our many weld heads as a single operator benchtop resistance welder and is also well-suited for integration into semi or fully automated resistance welding systems.
Key Features
- Constant current, voltage, and power modes
- Monitors energy and resistance
- 2400 A maximum
- 25 kHz feedback
- Active Part Conditioning (APC)
- Pre-Weld Check
- Weld to Limits
Technical Specifications
| Technology | High Frequency Inverter | |
|---|---|---|
| Output Range | Amps: 100 – 2,400 | |
| Volts: 0.2 – 10 | Volts: 0.2 – 10 | |
| kW: 0.05 – 10 | kW: 0.05 – 10 | |
| Weld Period Range (ms) | 0.1-10, 10-99 | |
| Output Control Mode | Current, voltage, power | |
| Open/ Closed Loop | Closed | |
| Built in Monitor | Yes | |
| Automation Ready | Yes | |
| Input Power | 192 – 264 VAC, 25A | |
| 320 – 440 VAC, 20A | 320 – 440 VAC, 20A | |
| 384 – 528 VAC, 13A | 384 – 528 VAC, 13A | |
| Single or 3 phase | 3 phase | |
| Size (L x W x H) | 18 in x 9 in x 12.8 in (460 mm x 230 mm x 325 mm) | |
| Weight | 54 lb (25 kg) | |
| For further details, please refer to enclosed brochure. | ||
