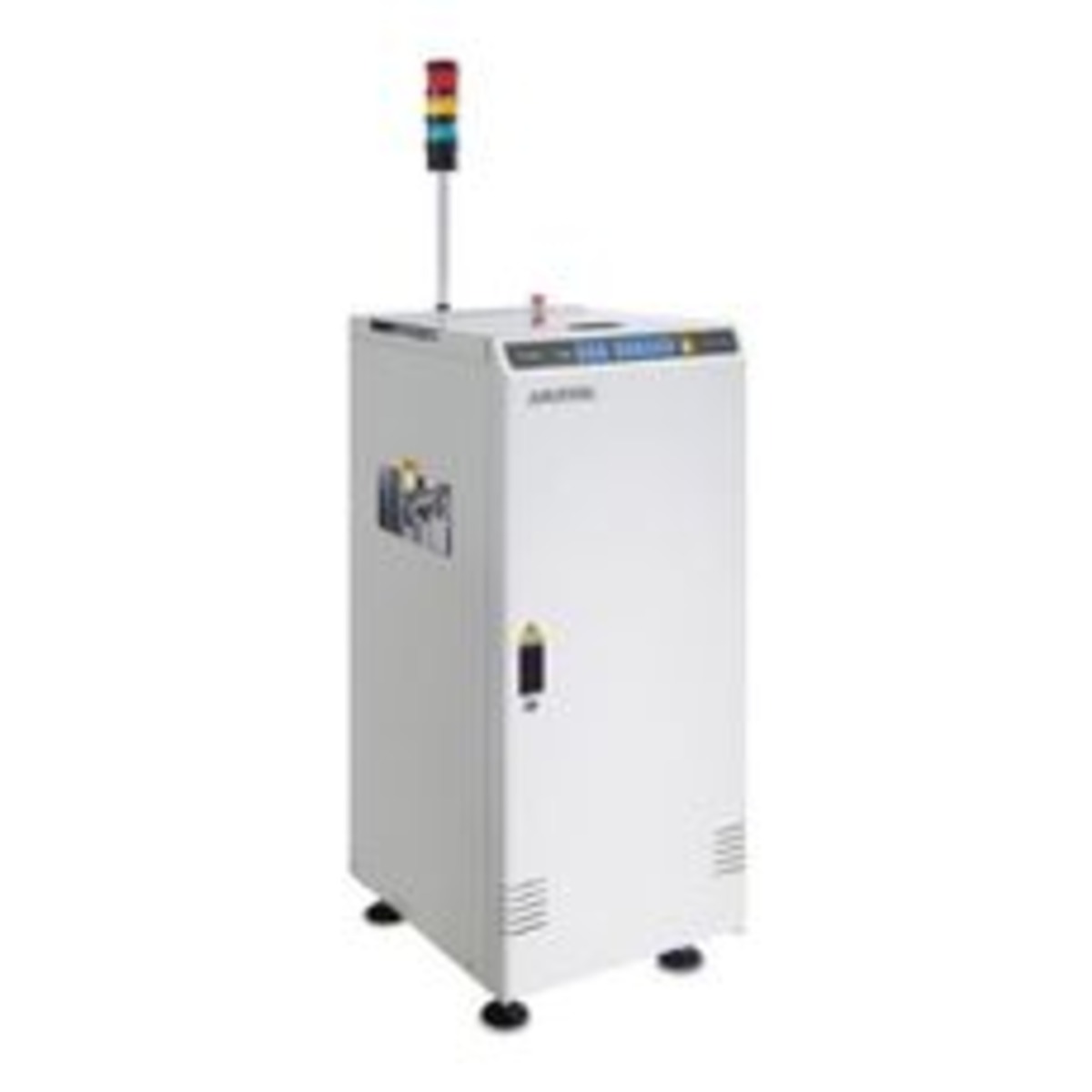

Nutek – Bare Board Loader With Pass Through Mode – Standard Series

Bare Board Loader With Pass Through Mode is used for loading of bare PCBs to the production line.

Inquiry Now

Overview

Features

Specifications

Technical Specifications

Maximum PCBs Height220 mm
Cycle TimeAverage 10 seconds
Power Source100, 230VAC 1Ph
Power Consumption150VA max.
Air Pressure6 bar
Air Consumption90 ltr/min. max.
For further details, please refer to enclosed brochure.

Available Models

Model No.SizeMachine Dimension (mm)
L x W x H
Fixed Point to Front
Dimension (X)
Weight
(Approximately)
NTM0200-MM500 x 730 x 1330 mm234 mm110 kg
NTM0200-LL653 x 870 x 1330 mm234 mm140 kg
NTM0200PM (Pass through)M500 x 730 x 1330 mm234 mm110 kg
NTM0200PL (Pass through)L653 x 870 x 1330 mm234 mm140 kg
For further details, please refer to enclosed brochure.

Key Features

  • Surrounded with covers to provide highest level of safety
  • Top safety cover can be opened for easy access to hardware during maintenance
  • User friendly ‘soft touch’ LED membrane control panel
  • Adjustable suction positions provide better grips of PCBs
  • Smooth and parallel width adjustment
  • Small machine footprint

Key Industries

  • Semiconductor, Solar & Electronics
