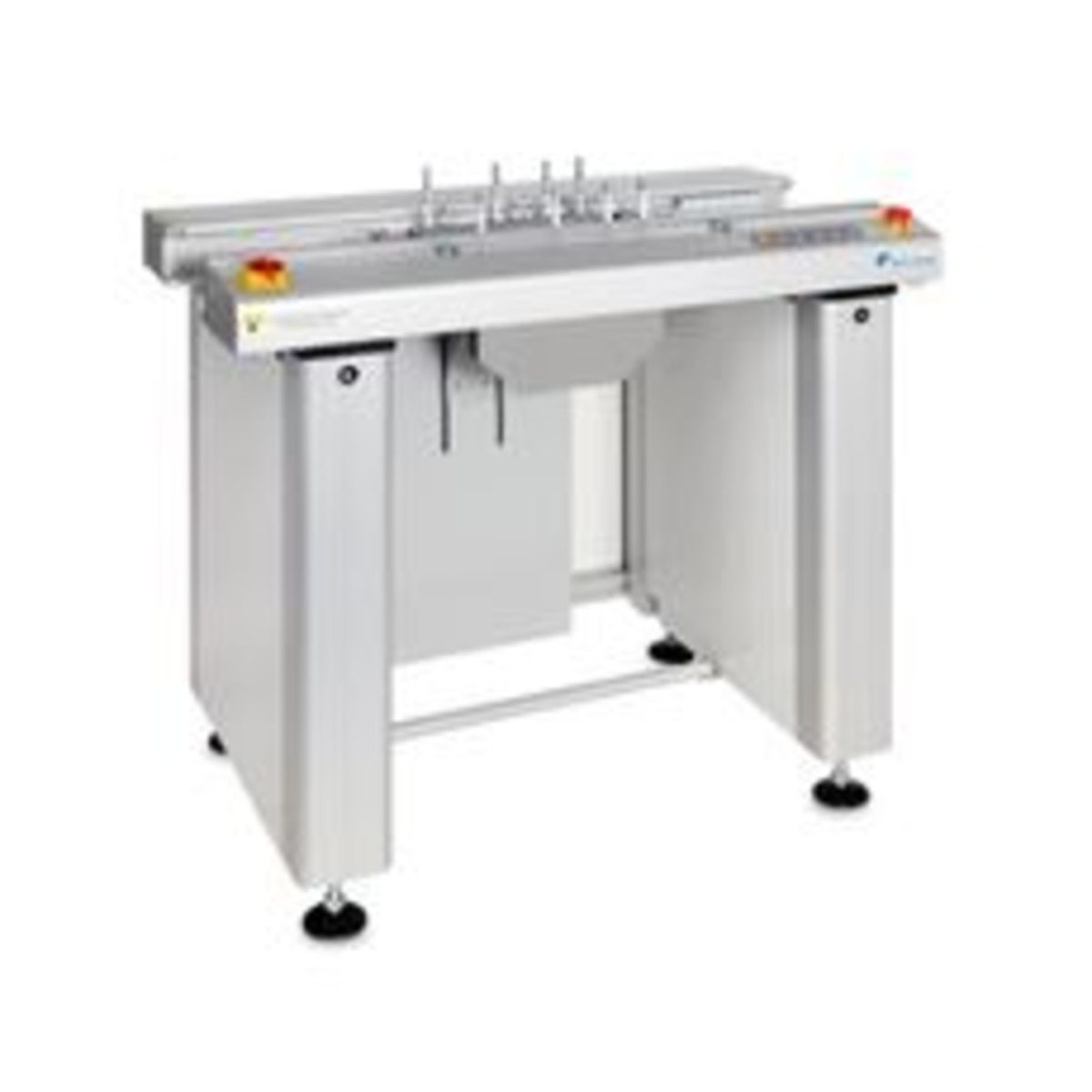

Nutek – PCB Reject Conveyor – Standard Series
Faulty boards can be lifted up for visual inspection without interrupting the PCBs flow.
Technical Specifications
| Conveyor Concept | Belt | |
| Conveyor Speed | 0.5 – 14 m/min. or specify | |
|---|---|---|
| Power Source | 100, 230VAC 1Ph | |
| Power Consumption | 150VA max. | |
| Air Consumption | 10 Itr/min. max. | |
| For further details, please refer to enclosed brochure. | ||
Available Models
| Model No. | Size | Machine Dimension (mm) L x W x H | Fixed Point to Front Dimension (X) | Weight (Approximately) | |
|---|---|---|---|---|---|
| NTM2500-M | M | 1000 x 667 x 980 mm | 186 mm | 80 kg | |
| NTM2500-L | L | 1000 x 824 x 980 mm | 186 mm | 90 kg | |
| For further details, please refer to enclosed brochure. | |||||
Key Features
- User friendly ‘soft touch’ LED membrane control panel
- Includes ‘reject’, ‘inspect’ and ‘pass through‘ modes
- Modular design
- Stability enhanced by ‘robust design’
- Ergonomically designed arm rest
- Smooth and parallel width adjustment
- Different lengths available upon request
- Variable speed control
- SMEMA compatible
- Patented (SG Patent No.: 91261)
Key Industries
- Semiconductor, Solar & Electronics
