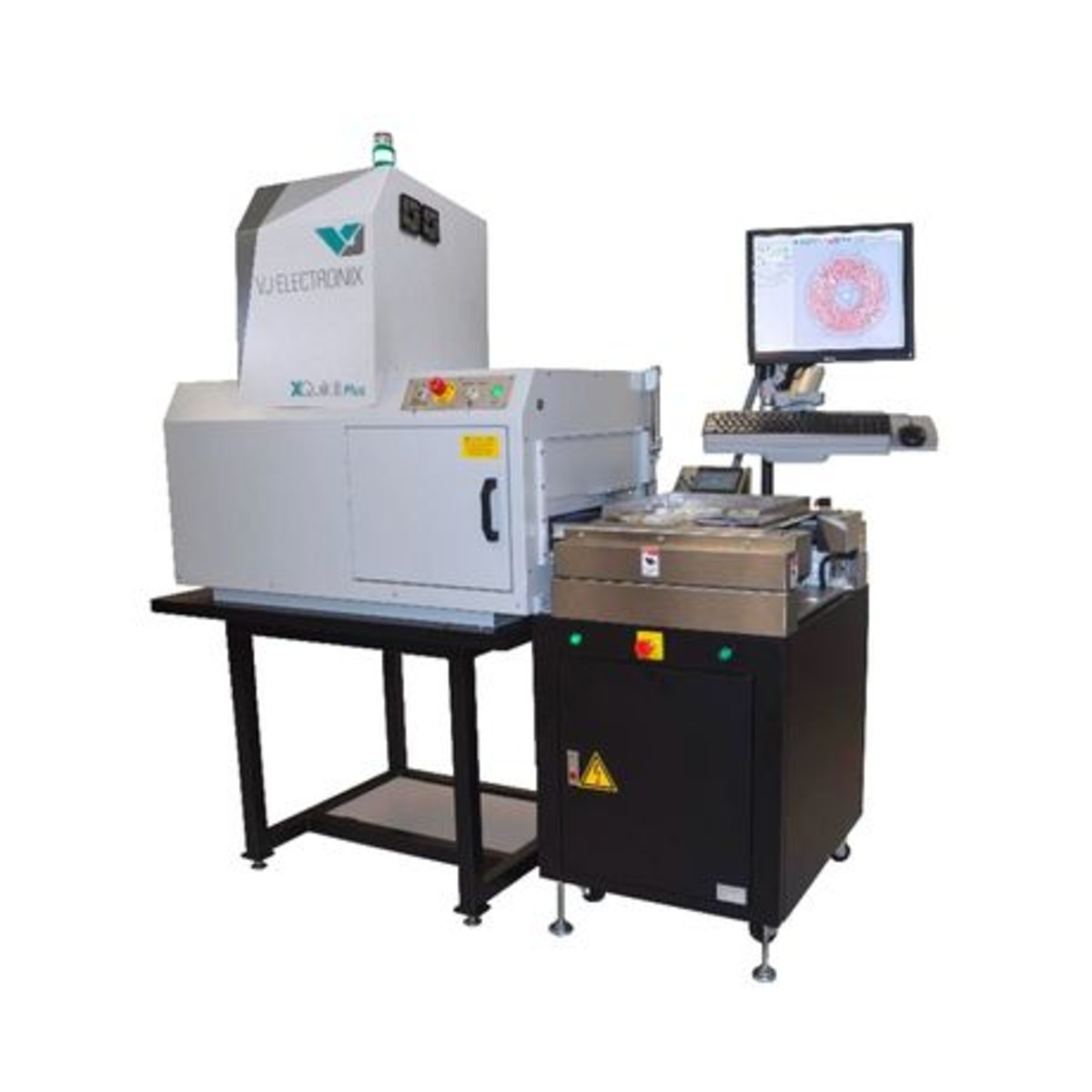

VJ Electronix – XQuik II Plus Autoload
The system’s advanced detection algorithms automatically recognize components without the need for cumbersome models, libraries, or cloud connection, making it quick and simple to use. Unique imaging technology provides the greatest count accuracy and reliability.
The XQuik’s flexible MES interface is easily configured to communicate with any inventory control system. Automatic detection determines whether a single, or up to four small reels are loaded, and keeps track of reel location, eliminating the risk of operator error.
Technical Specification
| Machine Footprint | 39 x 43 x 93in (1000 x 1080 x 2360mm) |
| Machine Weight | 2400lb (1100kg) |
| Maximum Power | 1000W |
| Electrical Connection | 100 – 250 VAC |
| Imaging Resolution | 100µm |
| Power/Voltage/Current | 180W / 70kV / 3.5 mA |
| Certification | IEC, CE, & FDA |
| For further details, please refer to enclosed brochure. |
Key Features
- One button operation
- Reel location and size automatically detected
- Automatic recognition of components
- Automatic inventory updates to your MES
- Scanning of (4) 7” reels simultaneously
- Scanning of 13” or 15” reels
- Industrial PC: Microsoft Windows 10
Key Industries
- Semiconductor, Solar & Electronics
