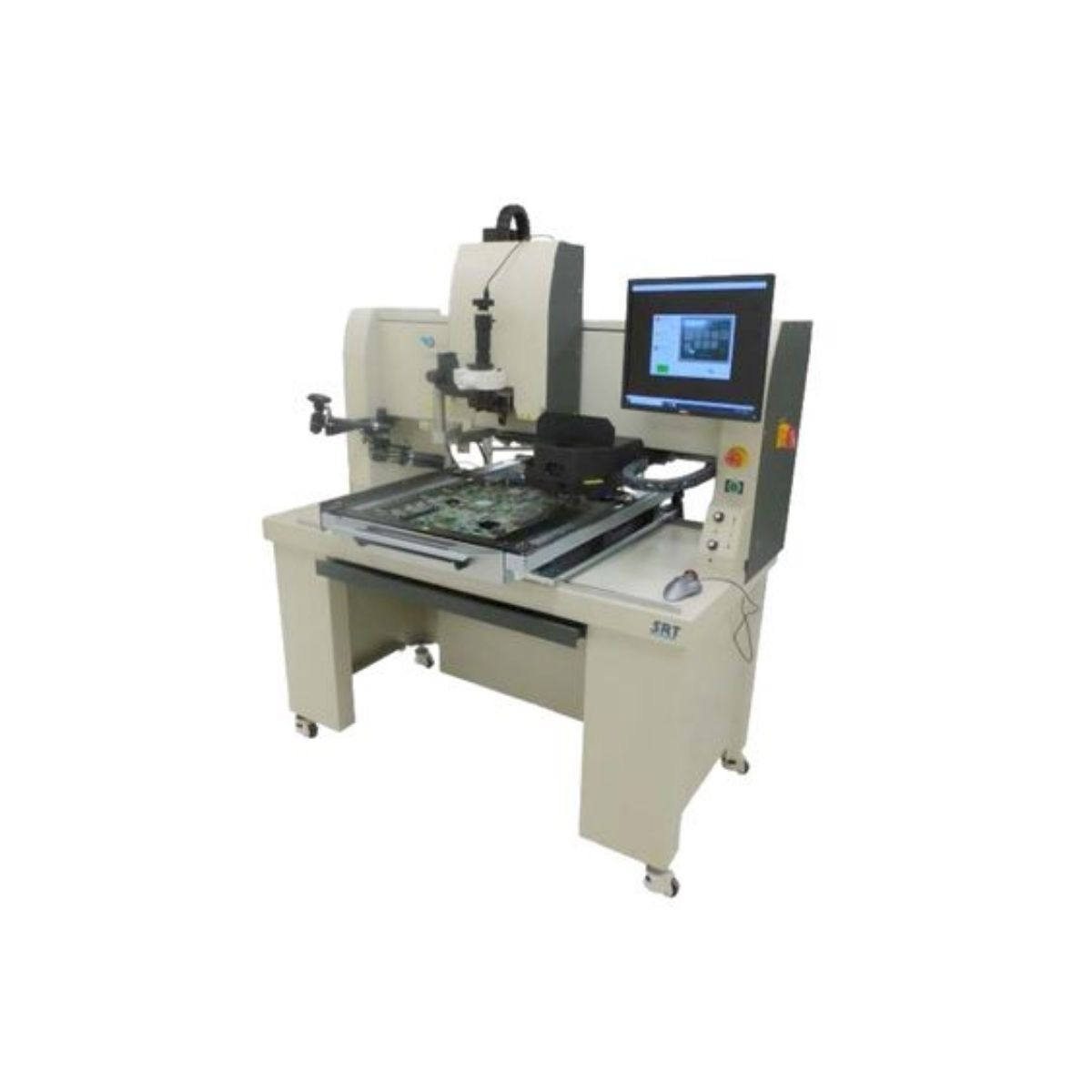

VJ Electronix – Summit 1800i
The most installed rework system in the world. The Summit 1800i is capable of handling boards up to 22″x30” and components as small as 01005. Built with easy-to-use 1-2-3-GO software, operation of this rework system is simple and intuitive. Efficient convection heating provides high thermal throughput, uniformity, and a repeatable rework process. Proprietary software provides product traceability, profile analysis, and sharing of profiles between VJE systems.
Technical Specifications
| Placement | 0.0005” (12u) mean + 3σ |
| Top Heater | 1.6 kW – Convection Top Heater with 2.2 kW Boost Heat Mode |
| Bottom Heater | 4.0kW/7.8kW Convection Bottom Heater |
| Max. Board Size | 455 x 560mm (560 x 760mm optional) |
| Min. Component Size | 1005 |
| For further details, please refer to enclosed brochure. |
VJE Summit 1800i
Key Features
- Easy-To-Use Auto Profiling Software
- Simple Component-to-Site Alignment
- Repeatable Thermal Performance
- Automatic Non-Contact Site Scavenging
- MES Interface
- Available Tooling for Any Surface Mount Component
Key Industries
- Semiconductor, Solar & Electronics
