AMADA – Pneumatic Active Welding System – OP-AWS3
Active Welding System 3 Pneumatic
Formerly known as AWS3

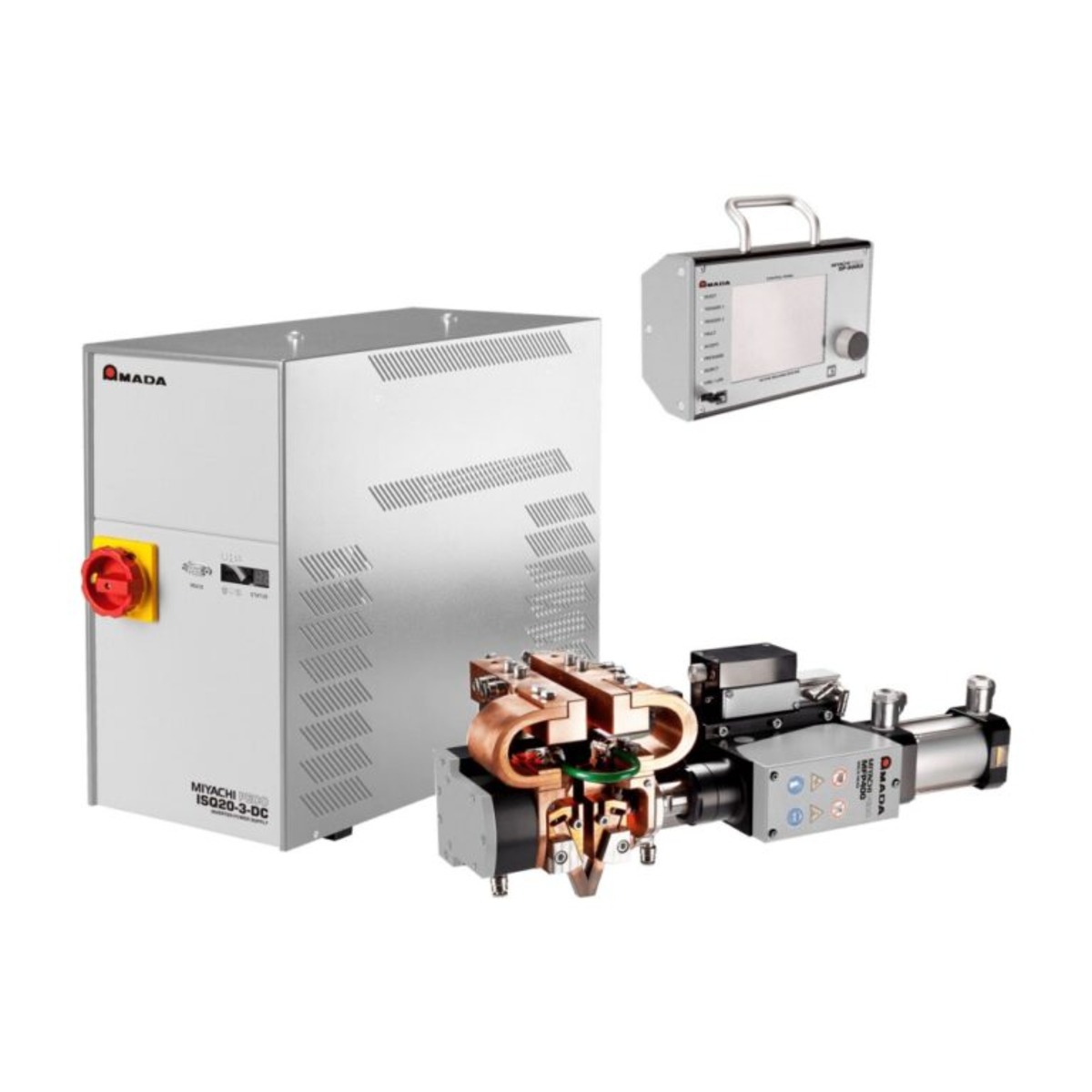

The OP-AWS3 Active Welding System combines pneumatic weld heads / weld pincers (F- and FP-series) with an inverter power supply (ISQ-series) all in one unique system. Its various interfaces make OP-AWS3 an easy to integrate system for automation. The complete system is an integrated solution providing process control, monitoring and quality analysis all in one.

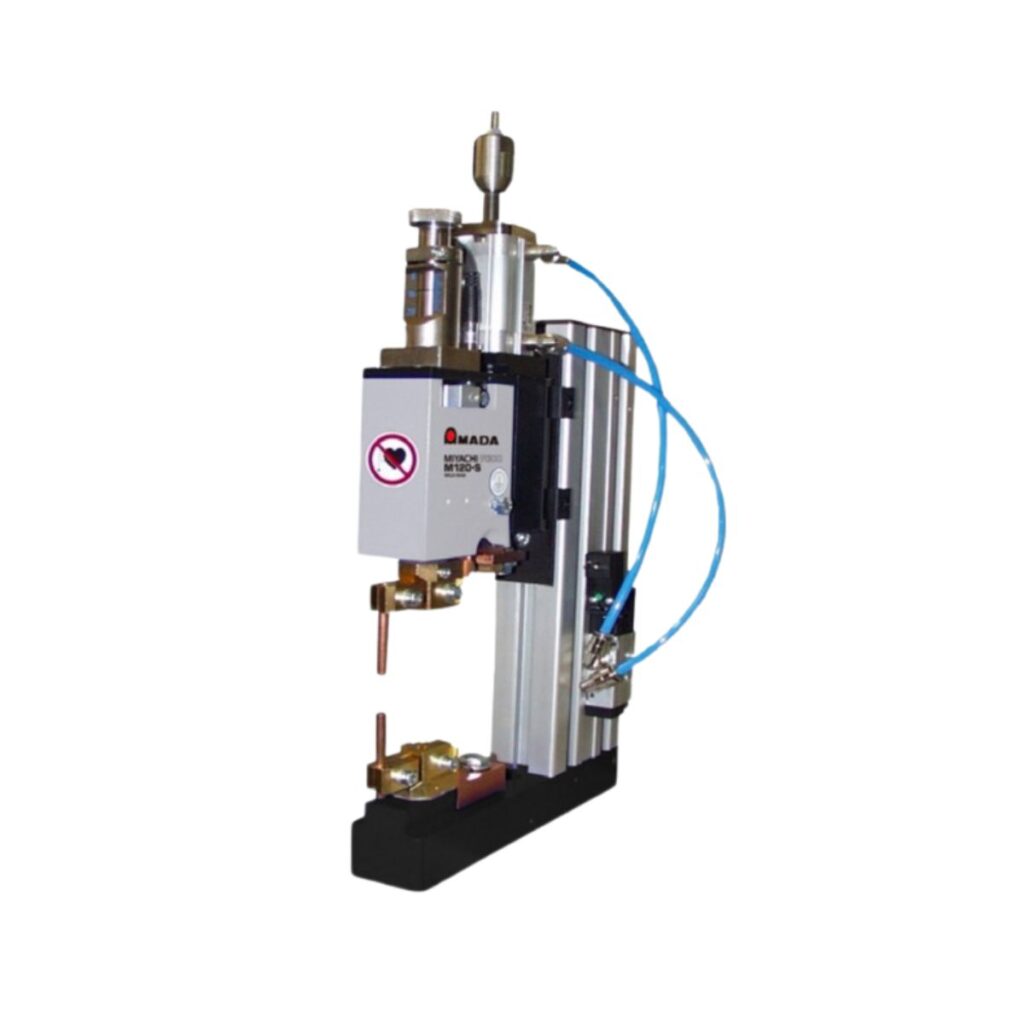

OP-AWS3 is a fully integrated resistance spot welding solution providing process control, monitoring and quality analysis all in one. The system features an MFP motorized weld head or pincer head and an ISQ high frequency inverter power supply.
OP-AWS3 may be used alone as a benchtop system or easily integrates into an existing production line.
Technical Specification
| ISQ20-3 and ISQ20-6 | ISQ20-10 and ISQ20-20 | ||
|---|---|---|---|
| Weld current type | Controlled DC inverter current | AC or DC inverter | |
| Configuration | Compact version w/integrated transformer, voltage sensor cable 19” plug-in unit ISQ20-MFC (optional) | Compact version w/voltage sensor cable; transformer not included | |
| Supply voltage | 3 x 400 V 3 x 230 V 3x 440 – 480 V | 3 x 400 V 3x 440 – 480 V | |
| Mains frequency | 50-60 Hz | 50-60 Hz | |
| Current measurement | Integrated toroidal coil (Rogowski coil) | external toroidal coil | |
| Weld transformer | internal | external | |
| Environment temp. | 0-40 °C | 0-40 °C | |
| Cooling | Air-cooled, external transformer water-cooled | Air-cooled, external transformer water-cooled | |
| Legal approval | CD | CD | |
| For further details, please refer to enclosed brochure. | |||
Available Models
| AWS3 Pneumatic Standard | AWS3 Pneumatic Displacement & Force | ||
|---|---|---|---|
| Features: Graphical waveform | x | x | |
| Features: SPC | x | x | |
| Features: Process monitoring | static, dynamic | static, dynamic | |
| Control: Two separate weld heads(figure 5) | x | x | |
| Control: Force monitoring | x | ||
| Control: Displacement monitoring | x | ||
| For further details, please refer to enclosed brochure. | |||
Brand
