VJ Electronix – Apogee 90
The APOGEE 90 was built to fulfill the need for an affordable and reliable inspection system with advanced features for defect detection, failure analysis, and NDT in production environments.
The system is capable of capturing the highest clarity 2D & 2.5D x-ray images that provide operators with confidence in their findings.
Technical Specification
| Stage/Sample Size | 18.1” x 18.1” (460 x 460mm) |
| Max. Inspection Area | 17”x17” (430mm x 430mm) |
| Field of View | 2.875”x2.875” (73mm x 73mm) |
| Imaging Speed | 10 FPS/Location |
| System Footprint | 47 x 55.5 x 71 inches (1200 x 1400 x 1800 mm) |
| System Weight | 1452Kg (3200lbs) |
| Power Requirement | 100 – 240 VAC (50/60 Hz), 4.2A @ 120V and 2.3A @ 220V |
| For further details, please refer to enclosed brochure. |

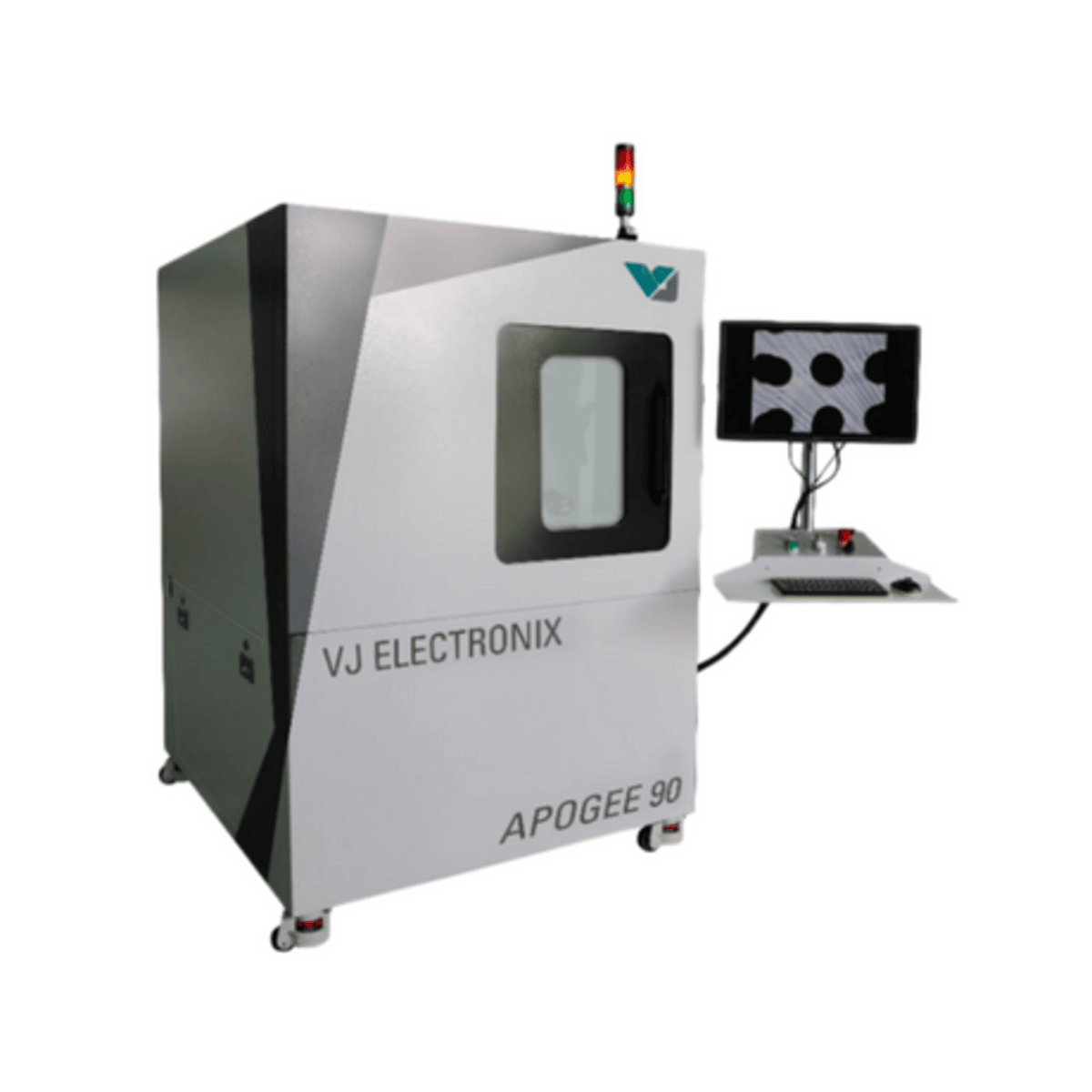

Apogee 90 Electronics X-ray Inspection System
Key Features
- Powerful 90kV Sealed Microfocus X-ray Tube
- 4µm Focal Spot
- Oblique Angle Inspection up to 45°
- High Resolution 5” Digital Flat Panel Detector
- 6-Axis Motion Control
- Programable Automated Inspection Sequences
- Valuable Image Enhancement & Processing Tools (ie. Averaging, Contrast, Exposure, 9x Filters, Pseudo3D)
- Real-time Image Visualization & Image Capture
Key Industries
- Semiconductor, Solar & Electronics
We are an advanced electronics manufacturing equipment supplier providing intelligent imaging applications, X-ray inspection, PCB rework solutions and services for…
