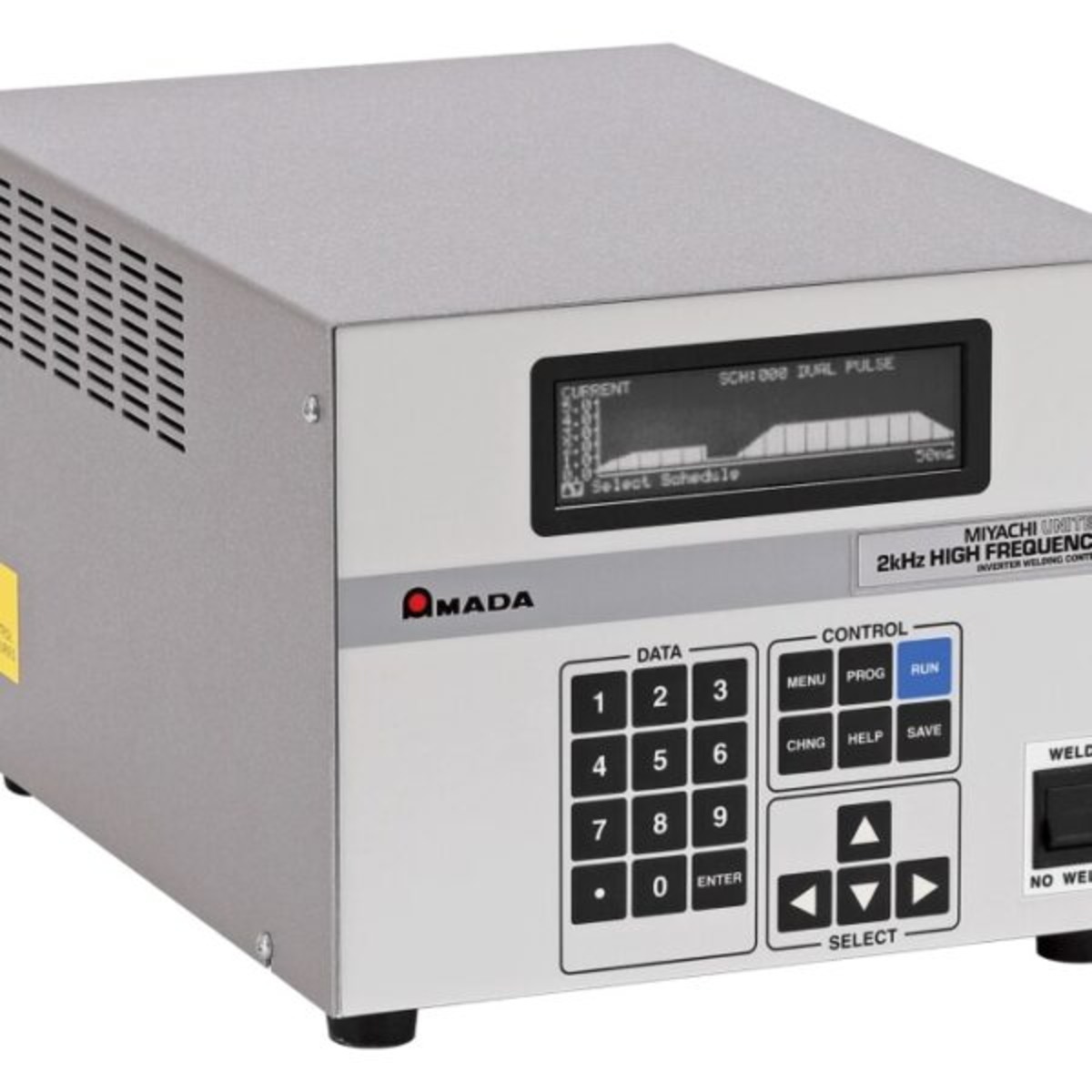

AMADA – High Frequency Inverter – HF2
HF2 is a 2kHz, state-of-the-art high frequency inverter welding power supply used to join small parts at high speed. Built in the USA, the HF2 High Frequency Inverter Spot Welder, is a high speed digital adaptive feedback controls weld current, voltage, or power, providing better weld consistency as compared to traditional AC or CD technologies.
HF2 may be used in conjunction with one of our many weld heads as a single operator benchtop unit and is also well-suited for integration into semi or fully automated resistance welding systems.
Key Features
- High Frequency Inverter Welder DC Technology
- High Speed Feedback Control System for Weld Current, Voltage, or Power
- Graphical and Alpha-numeric User Interface
- Input/Output Communication Ports for Automation Integration
Technical Specifications
| Technology | High frequency inverter | |
| Output Range | Amps: 50-4,000 Volts: 0.1 – 5.0 kW: 0.10 – 9.99 | |
|---|---|---|
| Weld Period Range (ms) | 2000 | |
| Output Control Mode | Current, voltage, power | |
| Open/ Closed Loop | Closed | |
| Built in Monitor | No | |
| Automation Ready | Yes | |
| Input Power | 208 or 230 VAC, 30A 380 or 460 VAC, 30A | |
| Single or 3 phase | 3 phase | |
| Size (L x W x H) | 15 in x 10.5 in x 8.5 in (381 mm x 267 mm x 216 mm) | |
| Weight | 42 lb (19 kg) | |
| For further details, please refer to enclosed brochure. | ||
