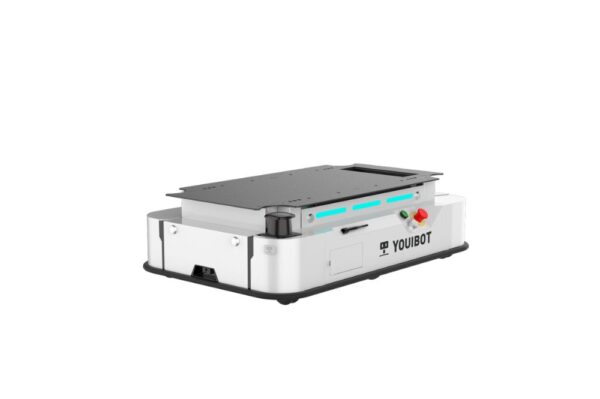

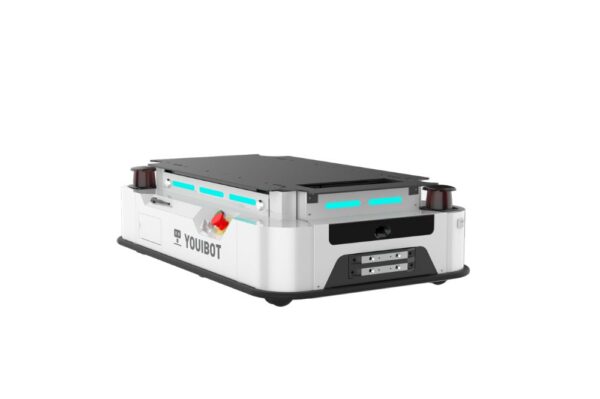

Youibot – Platform Series – P200

MALAYSIA

DKSH Technology Sdn. Bhd.
B-11-01, The Ascent, Paradigm, No. 1, Jalan SS7/26A,
Kelana Jaya 47301 Petaling Jaya, Selangor
Malaysia

+60 3 7882 8711

Email

Platform Series P200 Brochure

Versatile solution with general-purpose interfaces support over 10 kinds of top modules and cobot to tackle any material transport tasks in warehouses, cleanrooms, and production lines.

Technical Specifications

Design Feature	For Integration
Run Time	8h
Size	1016652290mm
Weight	180 kg
Maximum Payload	200 kg
Navigation Mode	Laser SLAM
Navigation Accuracy	Positioning accuracy: ±10 mm; Angle accuracy: ±1°
Turning Diameter	1130 mm

Key Features

Highly flexible integrated interface provides the possibility of multiple functions.
Stable and supportive integral structural design provides easy debugging and integration.
Fully enclosed safety design enables real-time human-robot collaboration in operation.
With customizable sound and light systems for customizable notification in different scenarios.
Concealed debugging panel improves the ease of quick troubleshooting.

Benefits

Multiple types of integrated interfaces: including IO signal interface; Ethernet interface; WLAN; power supply interface
Dual radar design meets 360° all-around plane detection
Meets multiple certification standards

Description

High Adaptability Interface Design

The P200 features top-panel external integration interfaces for I/O, Ethernet, WLAN, power supply, and signal lines when integrated into a superstructure. These interfaces connect the upper integrated components (IPC, PLC, battery, BMS module), allowing unified management, control, and distribution of signals and energy supply. This design ensures the P200 satisfies various inquiries over a significant area after transformation through integration.

Monolithic Structure Design

The P200 upper panel and component mounting positions are designed as an integrated structure, isolated from the power wheel and housing design. While ensuring that the core drive capability of the P200 will not be affected during maintenance or integration, it can meet the stable installation of the upper integrated structural components and the feasibility of connecting to each control key component during integration.

Multi-system Cooperative Control

P200 facilitates streamlined integration in the realm of basic AMR operating and dispatch systems. It connects with sensors, cobots, upper PLC, and other control systems during the integration process. The integrated control at the operating level alleviates the development workload for chassis interfaces with new components. Leveraging the standard P200 chassis, integration can be directly performed to meet specified functional requirements.

P200 Is a Versatile Solution Designed To Handle Complicated Material Handling Tasks in the Manufacturing Facilities

Key Industries

Semiconductor, Solar & Electronics

Brand

YOUIBOT Robotics is a world-leading mobile robot solution provider. We are proud of our Fusion SLAM navigation mobile robots and intuitive software products. Youibot provides integrated turnkey solutions for clients across automotive, FMCG, consumer electronics, semiconductors and warehousing. We build mobile robots specifically for reliable automation solutions that drive business efficiency and growth. We’re trusted by over 250 clients and over 40 local partners across APAC, Europe, America and MENA. We’ve deployed 5000+ AMR for industry leaders such as Michelin, Meta, DHL, TMSC, etc.
