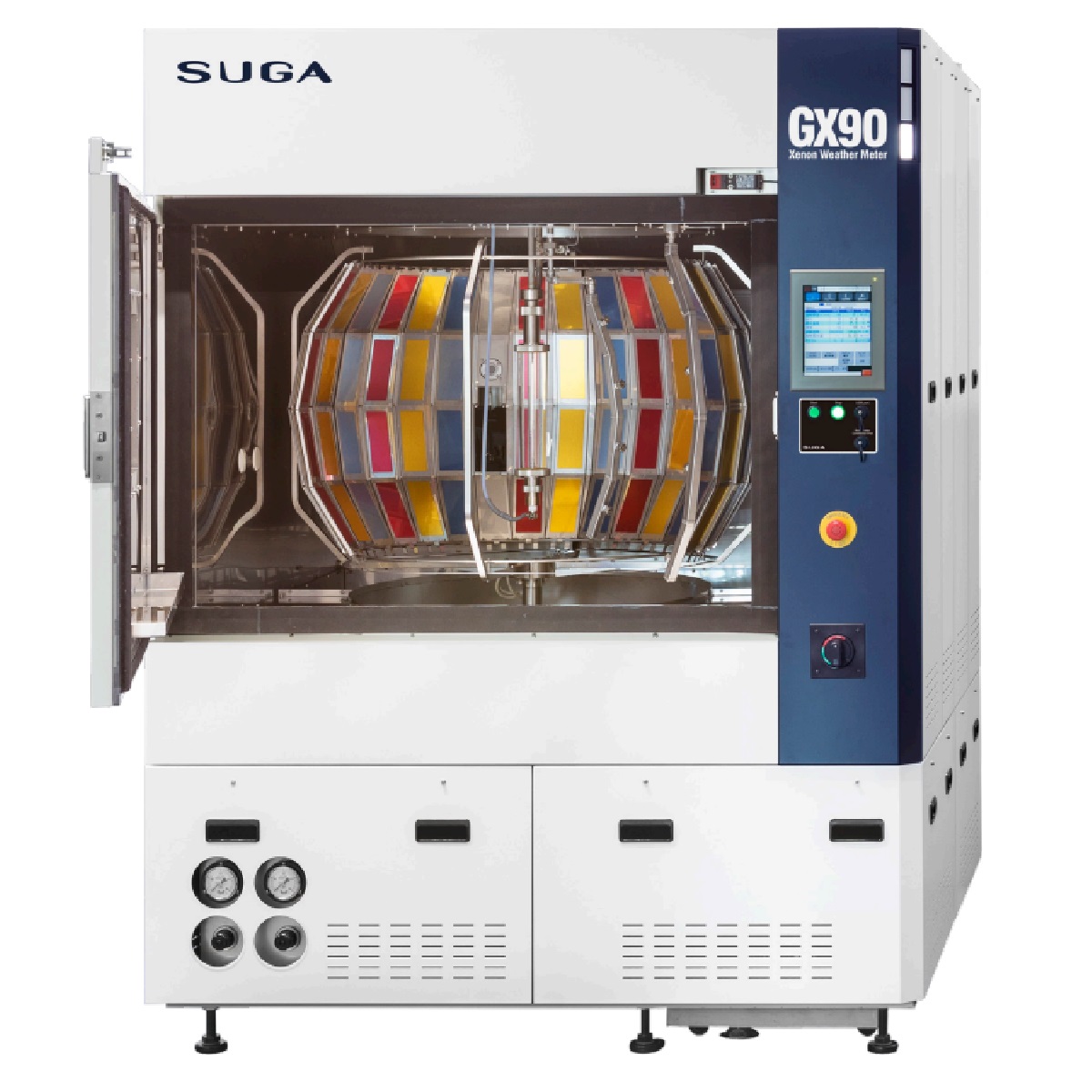

Suga – Xenon Weather Meter GX90
GX90 is able to test 126 specimens at one time. The newly developed 9.0kW long arc xenon lamp is World’s No.1 long-life light source, Lamp life: 3000 hours.
GX90 is able to test 126 specimens at one time. The newly developed 9.0kW long arc xenon lamp is World’s No.1 long-life light source, Lamp life: 3000 hours. In case of test condition 60W/m2 (300-400nm), Daylight Filter, BPT63°C, 50%rh.
Technical Specifications
| Performance | |
|---|---|
| Light | BPT 63 – 89°C (depending on irradiance) / Humidity 50%rh (depending on test condition) Capable of synchronous control of black panel temperature and chamber air temperature (depending on test condition Irradiance, etc) |
| Light+ specimen spray (rain) | CAT 38°C |
| Dark | CAT 38°C, 95%rh |
| Dark+ specimen spray (rain) | CAT 40°C, 95%rh |
| Dark+ back spray (dew) | CAT 38°C |
| Dark+ both sides spray | CAT 38°C |
| Control accuracy | ±2°C, ±5%rh |
| Light source, filter irradiance | Xenon lamp (water-cooled) 9.0kW: 1 unit / Daylight filter, Window glass filter with daylight filter: 40 – 100W/m2 (300-400nm) received at specimen surface |
| Specimen rack diameter | Approx. Φ960mm |
| Specimen dimension, number | 150 x 70 x 1mm, 126pcs |
| Construction | |
| Test chamber dimension | Approx. 108(W) x 106(D) x 78(H)cm, composed of SUS316L |
| External dimension | Approx. 148(W) x 175(D) x 205(H)cm |
| Operating weight | Approx. 1300kg (including step-down transformers) |
| Utility | |
| Electric Capacity | Three-phase 400V approx.. 65A (50Hz), ELB:75A |
Key Features
- Able to test 126 specimens at one time
- 9kW long arc xenon lamp with a long illuminant part irradiates wide range uniformly
- 4 stage specimen holders that increased specimen number by 21 pcs, compared to same size xenon weather meter (model: X75)
- SUGA Spiral Air System keeps the temperature and humidity conditions uniform throughout the test chamber
- World’s No.1 long-life light source, Lamp life: 3000 hours
- In case of test condition 60W/m2 (300-400nm), Daylight Filter, BPT63°C, 50%rh
- Automatic calibration of irradiance on the specimen surface
- The calibration radiometer (standard accessory) that is attached to the specimen rack can measure irradiance and radiant exposure, and the calibration result is automatically transmitted to GX90 to avoid human errors such as “input mistakes”
- Traceability by international standard ISO/IEC 17025
- ISO/IEC 17025 compliant calibration certificate can be issued for radiometer, platinum resistance thermometer, pressure gauge for spray
SUGA, established in 1920, has been specialized in manufacturing Weather Meters, Corrosion Test Instruments and Optical Property Measuring Instruments. Any…
