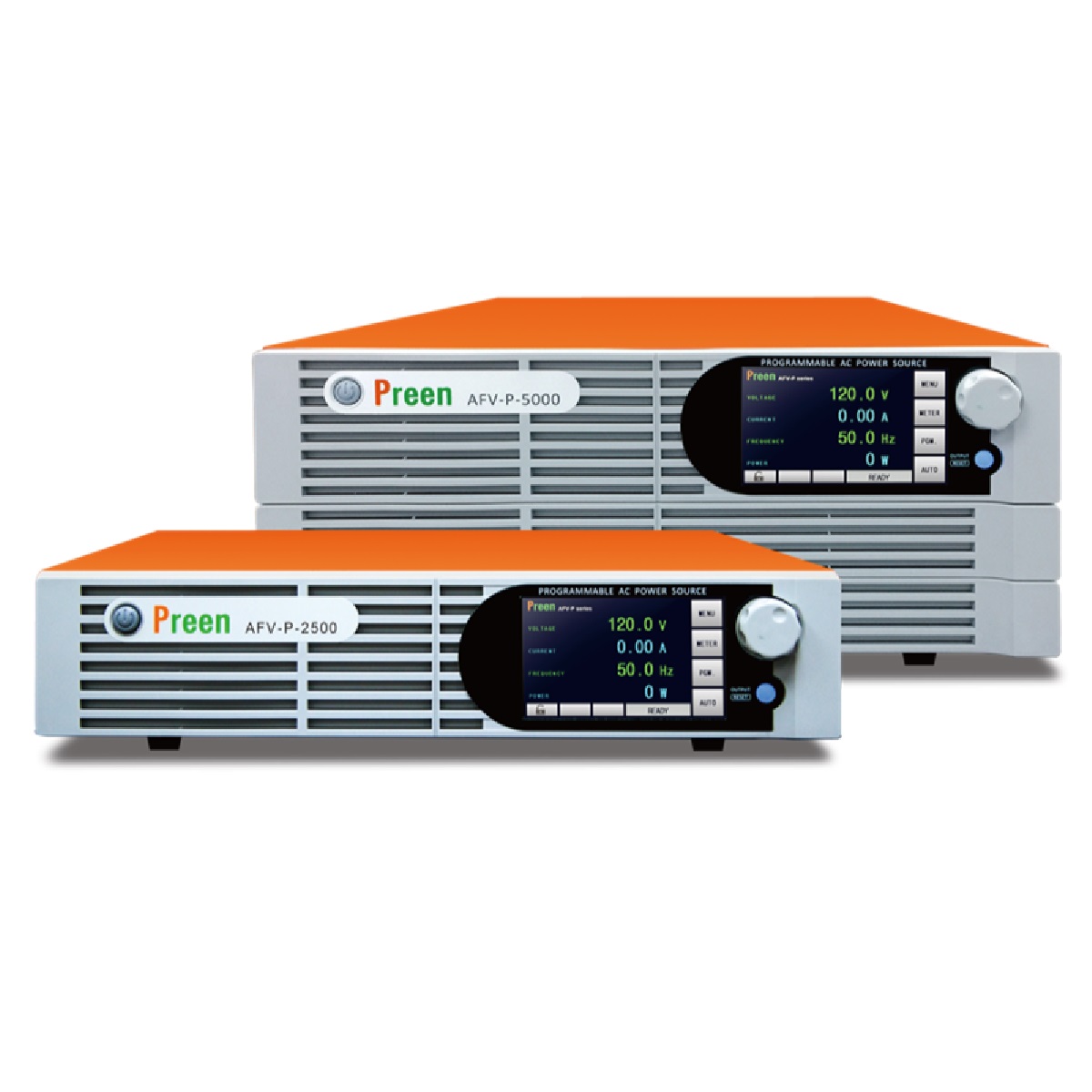

Preen – AFV-P Series High Performance Programmable AC Power Source
AFV-P Series is a programmable AC power source with DC output and precision measurement. This compact power source provides clean power with THD less than 0.3% at 5-100 Hz and it delivers output voltage of 0-310 V and frequency of 15-1000Hz (opt. 5-2000 Hz).
AFV-P Series is a programmable AC power source with DC output and precision measurement. This compact power source provides clean power with THD less than 0.3% at 5-100 Hz and it delivers output voltage of 0-310 V and frequency of 15-1000Hz (opt. 5-2000 Hz). It is ideal for commercial, defense and aerospace test applications from quality assurance, design verification, ATE to mass production.
Technical Specifications
| Output Power | Single Phase: 600VA / 1.25kVA / 2.5kVA/ 5kVA | ||||||
|---|---|---|---|---|---|---|---|
| Output Voltage | 0~155V (Low Range) 0~310V (High Range) 0~620V, 0~1240V (opt.) | ||||||
| Output Frequency | A ver.: 5~2000Hz B ver.: 15~1000Hz | ||||||
| THD | ≦ 0.3% at 5~100Hz, ≦ 0.5% at 101~500Hz, ≦ 0.8% at 501~1000Hz, ≦ 1.5% at 1001~1500Hz, ≦ 2% at 1501~2000Hz (Resistive Load) | ||||||
| Load Regulation | ≦ 0.07% F.S. (Resistive Load) | ||||||
| Crest Factor | ≧ 3 | ||||||
| Inrush Current | ≧ 4.5/ opt. 9 times of max.output current (rms) | ||||||
| Response Time | ≦ 300 μs | ||||||
| DC Output Voltage | 0~210V / 0~420V | ||||||
| Input Voltage | AFV-P-600 & AFV-P-1250: 98~132VAC / 196~264VAC AFV-P-2500 & AFV-P-5000: 196~264VAC (opt. 175-235VAC) | ||||||
| Input Frequency | 47~62Hz (opt 400Hz) | ||||||
| Interfaces | Standard: RS232 / RS485 / Ethernet / USB / PLC Reomte In & Out Optional: GPIB / Analog | ||||||
| Dimensions (HxWxD) | AFV-P-600 & AFV-P-1250: 89 x 442 x 495 mm AFV-P-2500: 89 x 442 x 650 mm AFV-P-5000: 176 x 442 x 665 mm | ||||||
| Weight | AFV-P-600: 16kg (35.27bs) AFV-P-1250: 20kg (44.09bs) AFV-P-2500: 31.3kg (69lbs) AFV-P-5000: 61.5kg (135.58lbs) | ||||||
Key Features
- Compact and high power density: 600VA to 2500VA is only 2U and 5000VA is 4U.
- AC source with DC output: extend the applications to DC testing.
- Wide output voltage of 0-310V and output frequency of 15-1000Hz (opt. 5-2000Hz).
- THD is only under 0.3 % when output power is under 100 Hz.
- Ideal for inrush current: capable of delivering up to 4.5/opt. 9 times of peak current and verify compliance with the ATX 3.0 standard.
- Start/End phase angle: users can define the start and end phase angle from 0° to 359°.
- Current foldback feature: have output current maintain constant based on the load which output voltage varies.
- STEP and RAMP function: ideal for voltage and frequency variation tests and effectively reduces the inrush current during motor startup.
- TRANSIENT generation provides users an easy setup for power line disturbance (PLD) simulation.
- Free control software and LabVIEW driver: allow users to easily program and remotely control.
- Users can quickly set and view the parameters via 5 5-inch touch panel or rotary knob, which provides an easy operation and measurement display.
- High slew rate: less than 300 μs from 0~90% output voltage.
