ODA – PTA Series
Small Sized – Designed to be mounted in a Standard 19inch Rack

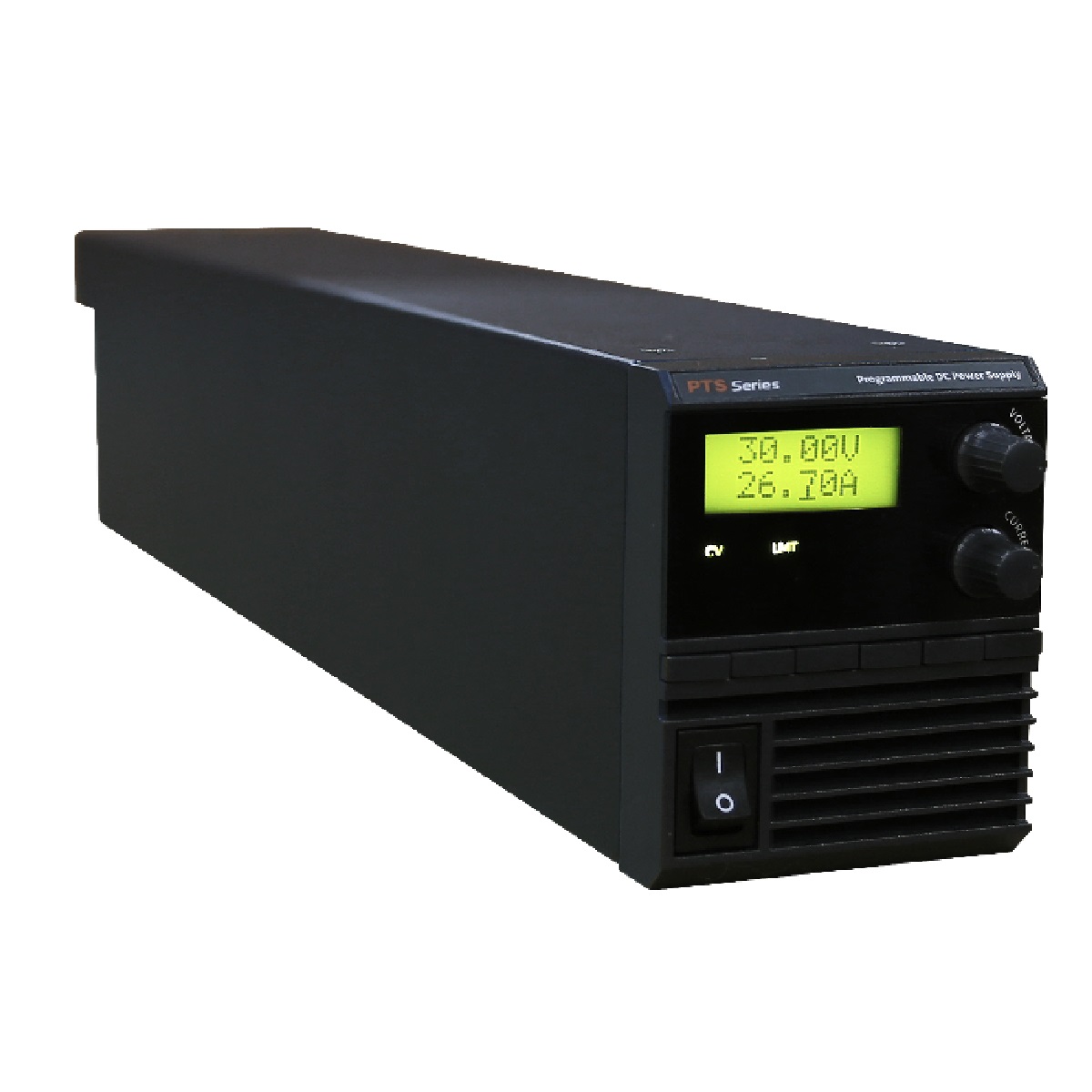

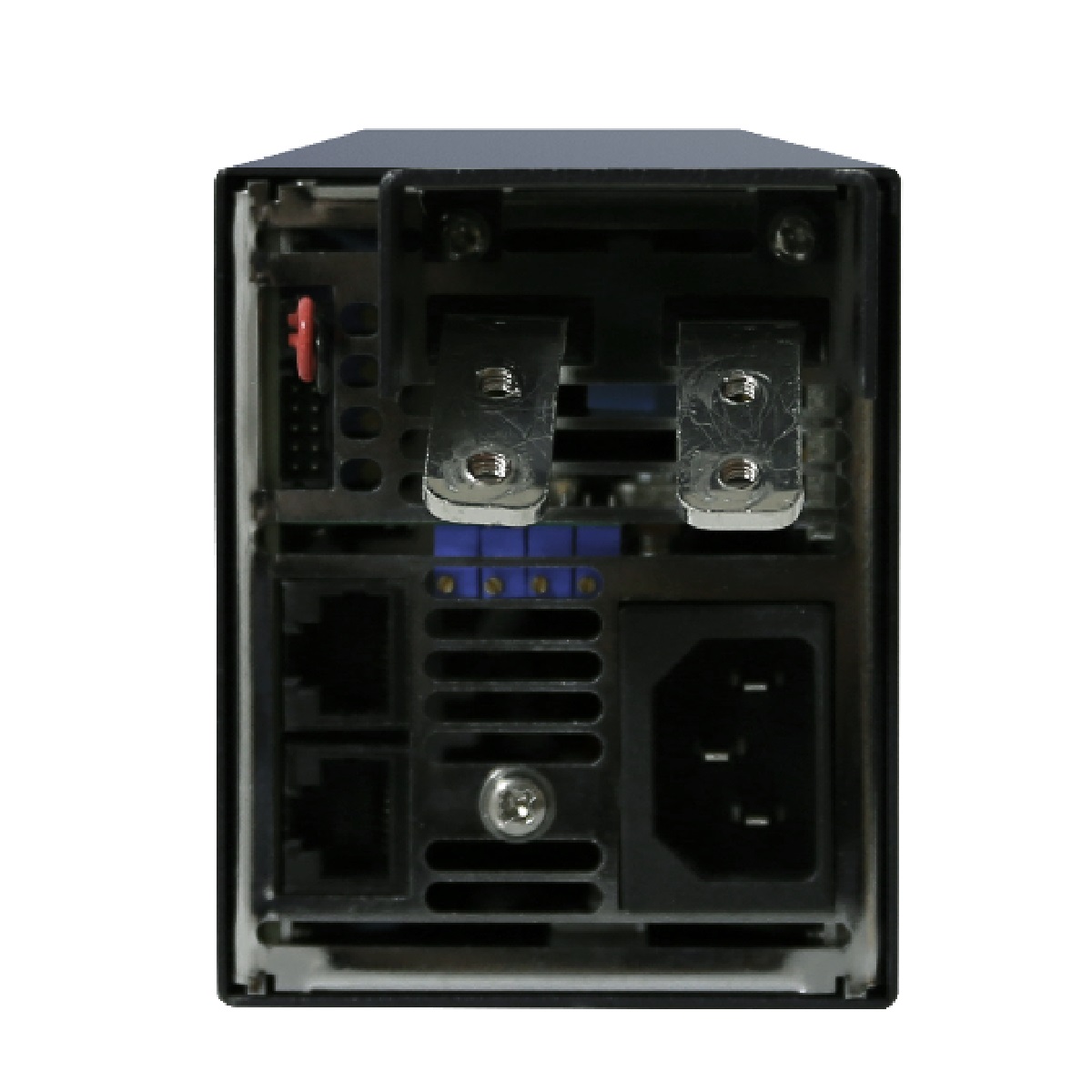

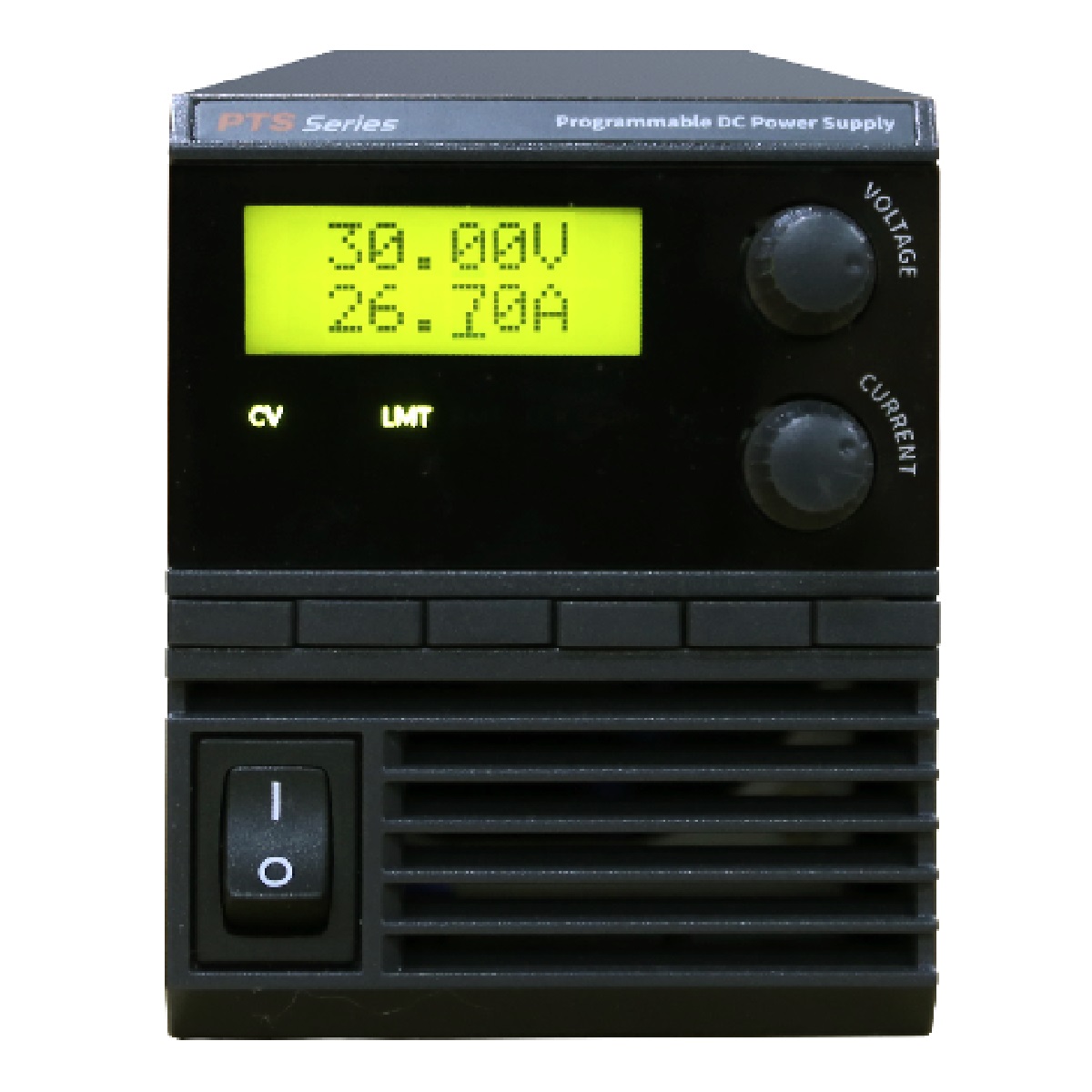

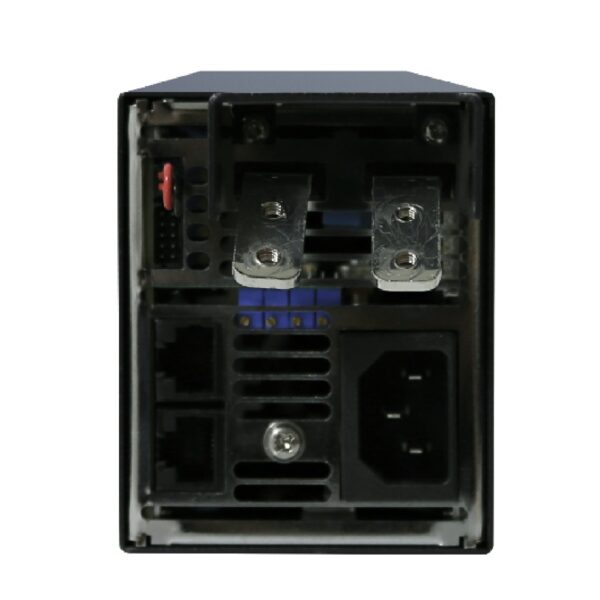

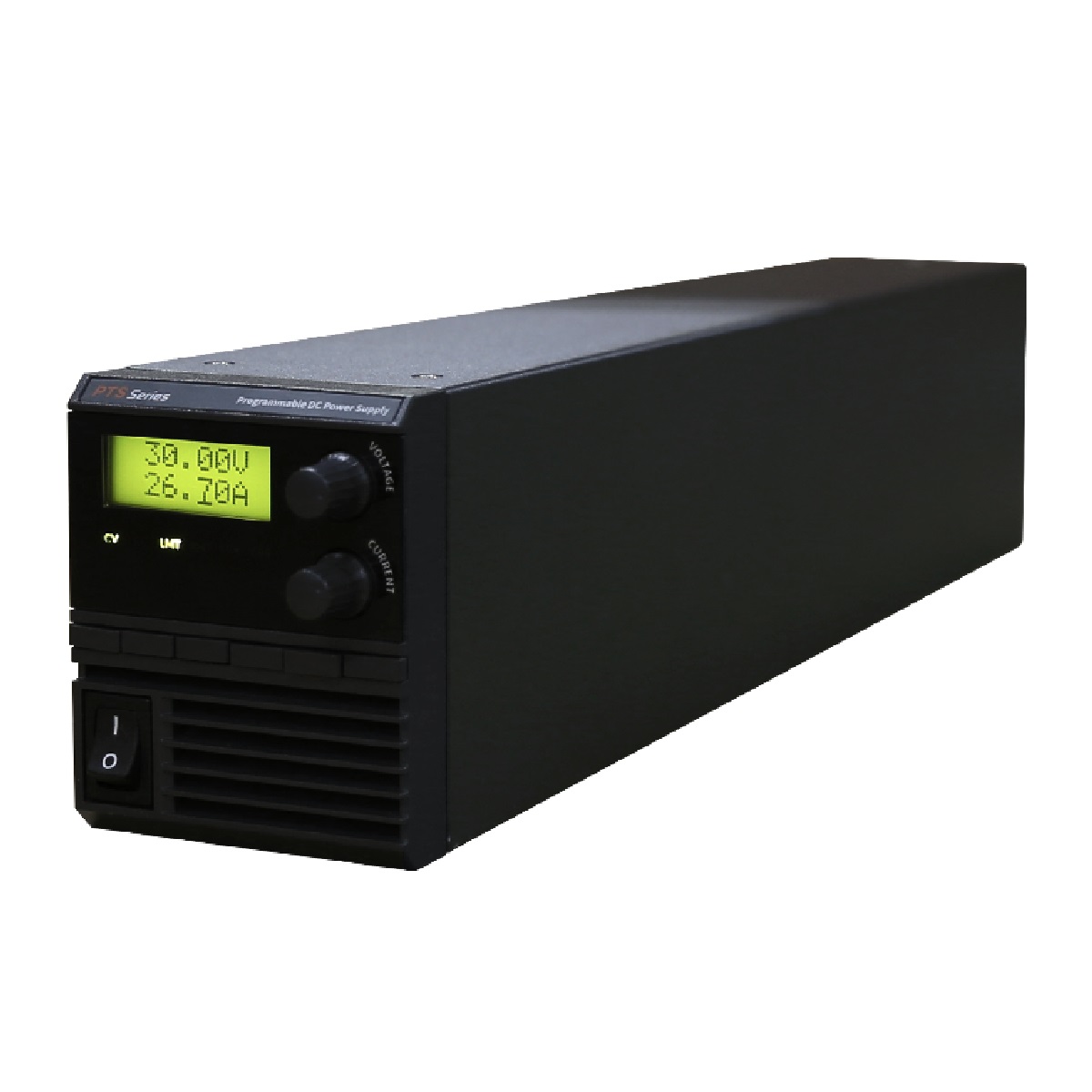

PTS Series is a compact-sized switching-type programmable DC Power Supply with high efficiency, quick response, and stable output. As PTS Series is capable of 800W output, it offers various line-ups from 30V ~ 200V output voltage. It provides RS-232C and RS-485 communication that are compatible with SCPI (Standard Commands for Programmable Instruments).
Technical Specifications
| Size | 2U | ||||||
|---|---|---|---|---|---|---|---|
| Voltage | 30V | 40V | 50V | 60V | 80V | 100V | 200V |
| Current | 26.6A | 20A | 16A | 13.3A | 10A | 8A | 4A |
| Display Resolution | 4Digit 10mV or 100mV | ||||||
| Line & Load Regulation | ≤0.01% | ||||||
| Programming Accuracy | 0.5%+offset | ||||||
| Ripple & Noise | Output 30V (8mVrms/60mVp-p) | ||||||
| Rise Time (Full Load) | 50mS | ||||||
| Falling Time (Full Load) | 25mS | ||||||
| Power Factor (Full load) | ≥ 0.98 | ||||||
| Transient Response Time | 1mS | ||||||
| Efficiency (Full load) | ≥ 85% | ||||||
| Size WxHxD | 70 x 86 x 380 mm | ||||||
| Weight | 2.5kg | ||||||
Key Features
- Compact Size
- PTS Series is designed with two times higher capacity and a smaller size compared to previous PT Series
- Protection Mode
- OVP and OCP functions protect both the unit and the load by cutting off the output when overvoltage or overcurrent is detected. Therefore, it can be used safely under long hours of testing regardless of human errors.
- Memory Store and Recall
- Even for non-engineers, they can handle the test by simply recalling the stored memory for the test. Also, the recall function can be used for various tests, such as a reliability test.
