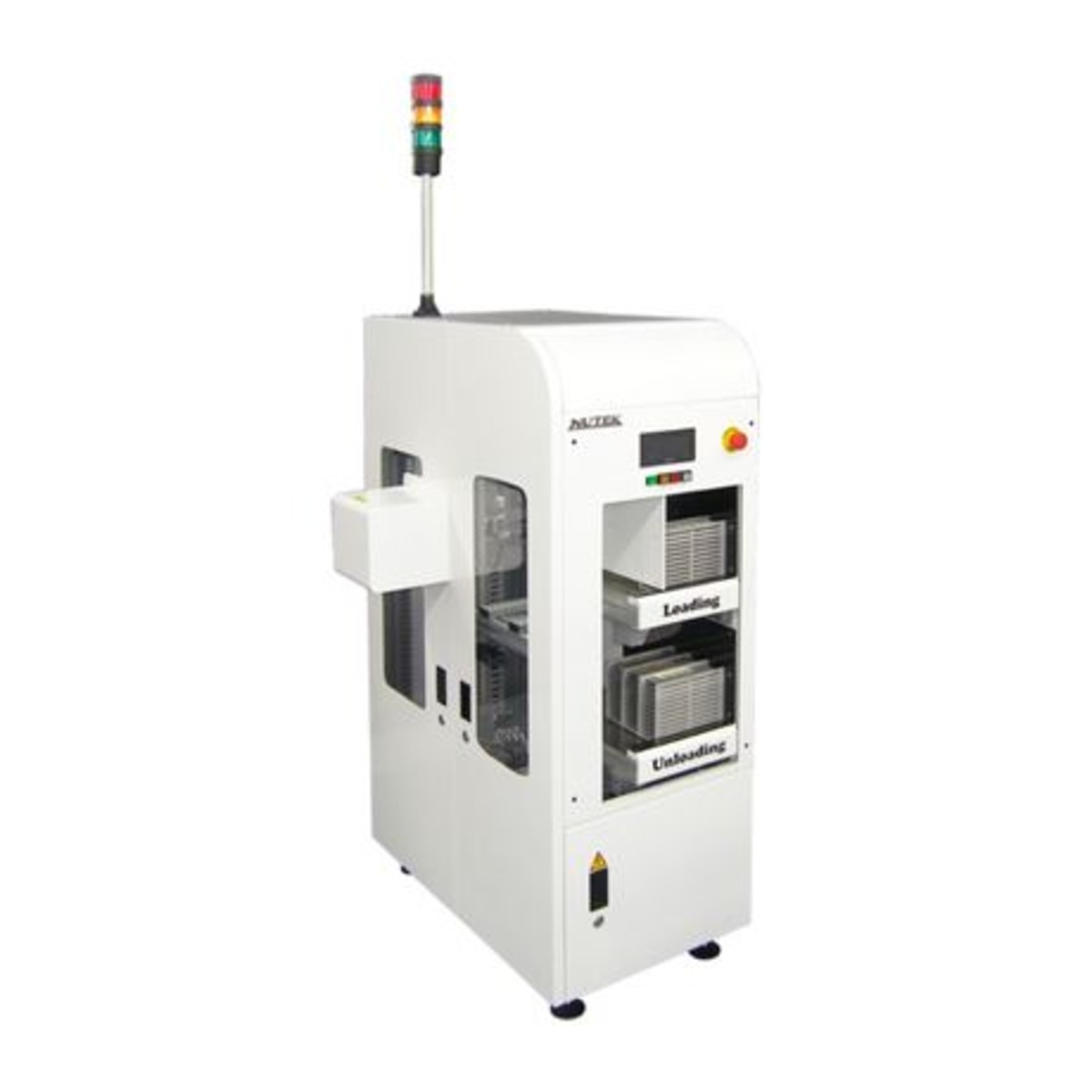

Nutek – High Speed Mini Loader
This unit is used for loading of substrates, leadframes or carriers.
Technical Specifications
| Magazine | Specify upon order | |
| No. of Magazines | Depends on magazine type | |
|---|---|---|
| Loading Time | Average 5 seconds | |
| Magazine Change-over Time | Average 20 seconds | |
| Indexing Pitch | 1 – 4 (5mm pitch) or specify | |
| Power Source | 100, 230VAC 1Ph | |
| Power Consumption | 850VA max. | |
| Air Pressure | 4 – 6 bar | |
| Air Consumption | 10 It/min. max. | |
| For further details, please refer to enclosed brochure. | ||
Available Models
| Model No. | Size | Machine Dimension (mm) L x W x H | Fixed Point to Front Dimension (X) | Weight (Approximately) | |
|---|---|---|---|---|---|
| NTM4412LM | M | 753 x 989 x 1571 | 530 mm | 210 kg | |
| For further details, please refer to enclosed brochure. | |||||
Key Features
- Applicable to various substrates, leadframes or carriers
- “Servo control” lifting motion
- High speed and precise indexing
- Machine size depends on the type of magazine used
- Stores up to 10 different types of magazine dimensions
- Stainless steel magazine guide
- Pneumatic pusher’s pressure regulated
- Easy loading or unloading of magazines
- User friendly touch screen panel
- SMEMA compatible
Key Industries
- Semiconductor, Solar & Electronics
