NanoCellect – Verlo Image – Guided Cell Sorter
The VERLO™ Image-Guided Cell Sorter is providing conventional flow cytometry and cell sorting along with the ability to perform imaging analysis to identify and sort cells based on morphology, subcellular localization and more.
The VERLO™ instrument expands the capabilities of gentle benchtop microfluidic cell sorting. With two lasers and nine colors, plus 3 label-free parameters, it maintains simple workflows for either bulk sorting or single-cell dispensing into 96- or 384-well plates with an integrated cell dispensing and sample cooling.
Technical Specifications
| Scatter sensitivity | < 1.5 μm by FSC or BSC |
| Scatter resolution | Resolves lymphocytes, monocytes and granulocytes |
| Fluorescence sensitivity | < 200 MESF FITC (488 nm laser) < 250 MESF PE (561 nm laser) |
| Fluorescence resolution | 9-peak separation with SPHERO™️ Rainbow Calibration Particles |
| Analysis speed | 2,000 events/second |
| Sorting | 1- and 2-ways |
| Back-to-back sorting speed | 200 events/second |
| Absolute counts | Yes |
| Volumetric counts | Yes |
| Warm-up time | Less than 1 minute |
| Sorting purity | Up to 99% purity |
| VERLO Dimensions | 18 in H x 40 in W x 18 in D (45.7 cm H x 101.6 cm W x 45.7 cm D) |
| VERLO Weight | 150 lbs / 68 kg |
| VERLO Electrical | AC Input: 100-240V, 50-60Hz, 2A |
Key Features
Spatial Information

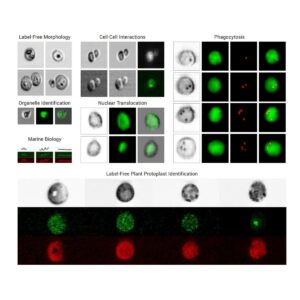

Captures images of each cell. In addition to fluorescence intensity, the VERLO provides spatial information such as cell morphology and marker localization.
Enhanced Resolution
Imaging of subcellular structures and analysis of spatial variations in brightfield, darkfield, and fluorescent images.
Increased Precision Sorting

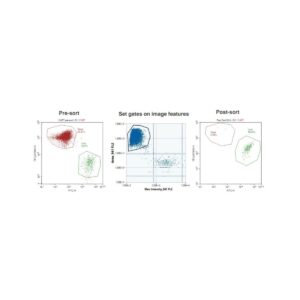

Following the acquisition and processing of cell images, imaging features are incorporated into the gating strategy to define cell phenotypes.
Multivariate Datasets
Combines high-throughput sampling with single-cell image acquisition and measures large number of features from cell images, providing more comprehensive data.
