Messmer Büchel – Short Span Compression Tester (STFI) – Model 17-36
Compression Strength

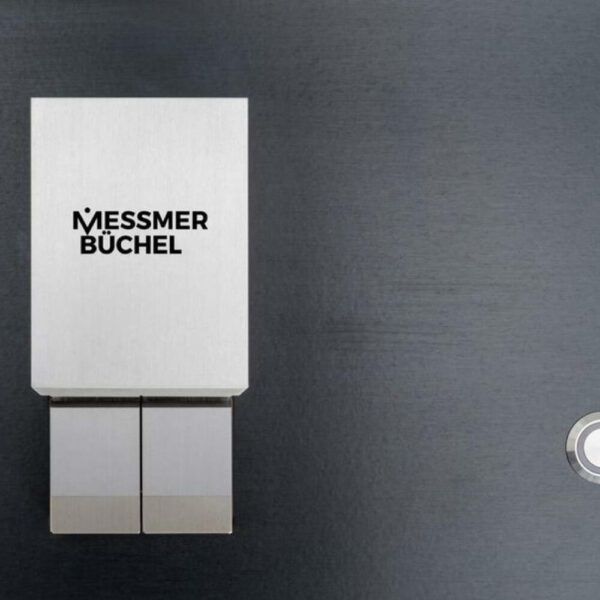

The 17-36 Short Span Compression Tester measures the compression strength of paper and board. The distance or free span can be set from 0.3 – 0.7mm (steps of 0.1). When performing a compression test on such a short distance the stability of the clamps and instrument is very important. The 17-36 Short Span directs all the forces of the clamped sample to the load cell, making it one of the most accurate instrument available on the market.
Test Results
Edgewise compressive strength also referred to as Short Span Compression (SCT) was developed in 1980 as an improved method to measure buckling and compressive failures of paper and board. Short Span Compression is considered an important property and can be used to predict the performance of container board used in the manufacture of corrugated boxes.
Technical Specifications
Model | 17-36 Series |
---|---|
Measuring units | N, kN/m, Lb and Lb/inch |
Load cell range | 250N or 500 N |
Accuracy | less than 1% of reading |
Test speed mov. Jaw | 3mm/min ± 1mm/min. |
Adjustable span | 0.3 – 0.7 mm (steps 0.1) |
Span accuracy | 0.05 mm |
Dimensions (LxWxH) | 430 x 420 x 195mm 17 x 16.5 x 8 inch |
Weight | 33 kg 73 lbs |
Key Features
Model 17-36
- Compact and modern design
- Automatic clamping of sample
- Touch screen
- Intuitive user interface

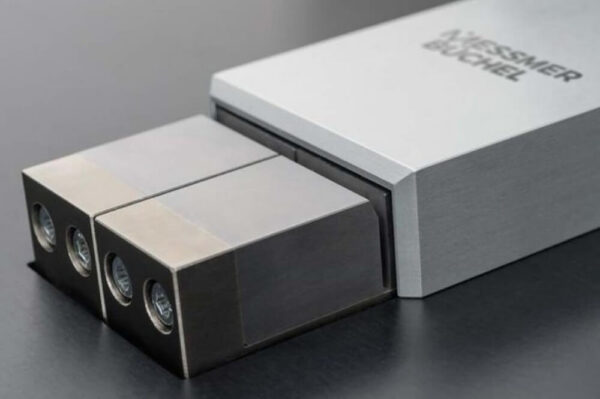

- Unique clamping mechanism
- Statistical information
- GraphMasterPro™ compatible
- Serial printer output
International Standards
- ISO 9895
- TAPPI T-826
- DIN 54518
- SCAN P46
- AS/NZ 1301.4SO RP
- BS 7325
