  • PGX+ Pocket Goniometer brochure – Messmer Büchel


Small and Easy to Handle

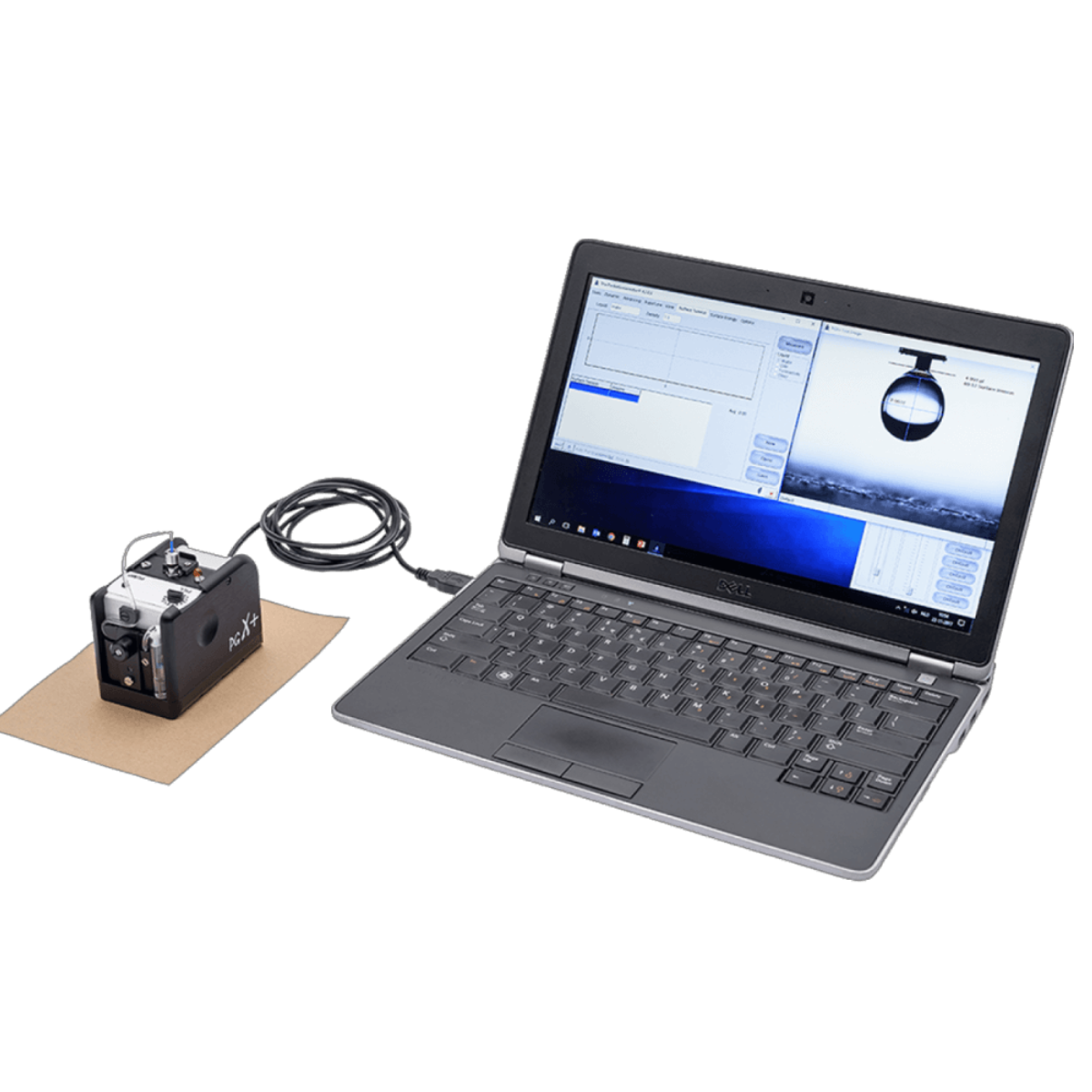

The PGX+ measures contact angle (dynamic and static), surface tension, and surface energy. The PGX+ makes a drop in µl according to the size that is set. The drop is automatically released and 80 images per second are made. The instrument is used for paper & board, solar cell panels, windshields, metal cylinders and similar surfaces. For most tests deionized water is used, however using other liquids is also possible. Contact us if you want to use any other liquids.

Test Results

During testing the instrument is connected to the special PC software. The software gives you an easy overview of the possible tests. During the test the data transferred to the computer. The pictures taken and the results can be stored and analyzed. Thanks to the direct feedback, adjustments to improve the results can easily be made.

Technical Specifications

Model68-76-00-0001
Liquid size0.5 – 10 microliter
ResultsImages and statistics
PGX+ softwareIncluded
Changing fluidsPossible
Dimensions (LxWxH)90 x 55 x 90 mm
Weight500 gram

Key Features

Model 68-76

  • Easy to handle, small sized
  • Registration with 80 frames / second
  • Purity of liquids, Surface Tension, Static and Dynamic Contact Angle
  • Multiple test fluids possible
  • Runs on every Windows computer
  • Power from USB connection
  • No sample preparation

International standards

  • TAPPI T458
  • ASTM D-724
  • ASTM D-5946

Product demo: 68-76 PGX Goniometer
