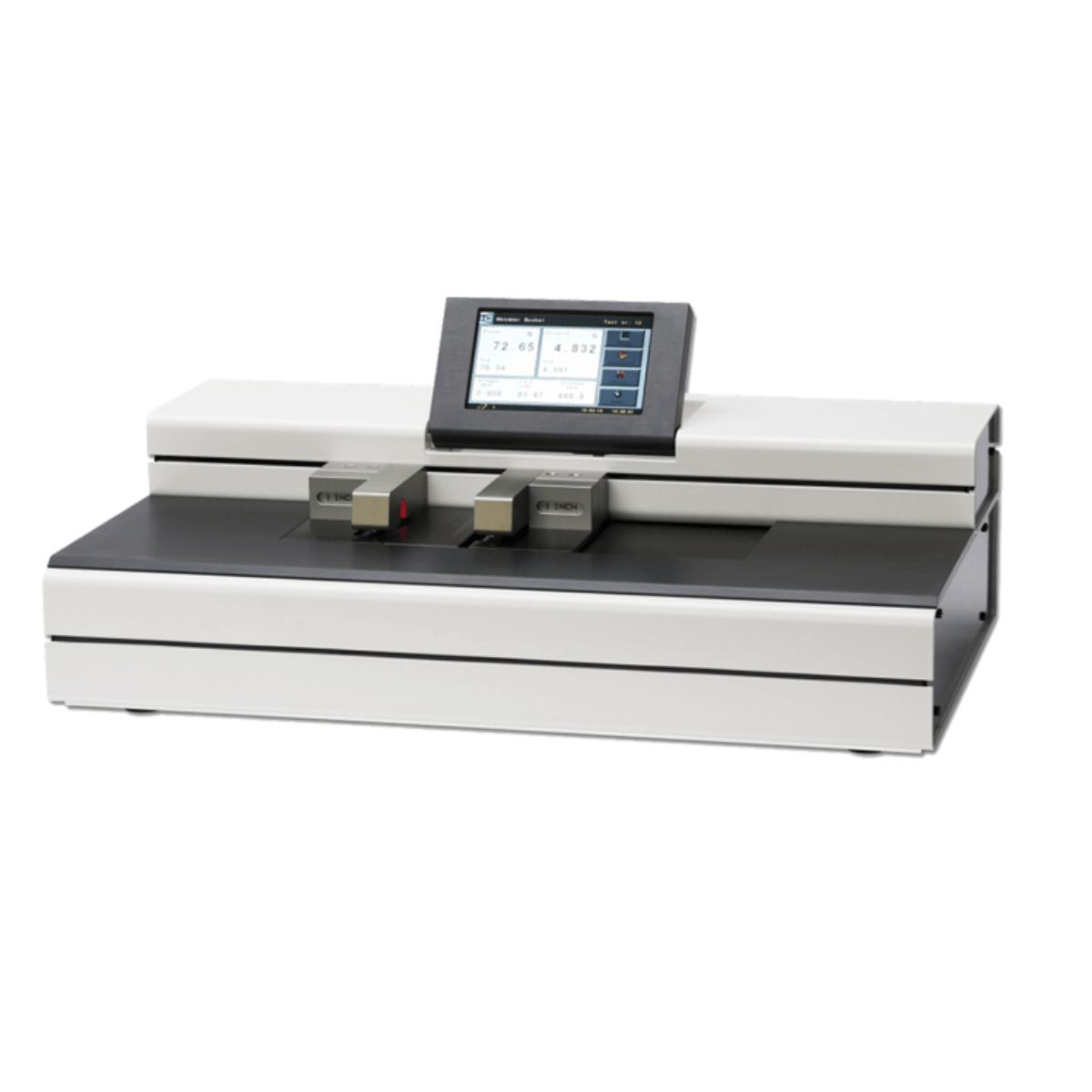

Messmer Büchel – Horizontal Tensile Tester – Model 84-56
Insert Your Sample and Test. The Horizontal Tensile Tester tests the tensile strength and elongation of a sample. After placing the sample the sensor detects the sample and the test starts. Special guides are supplied to center the sample correctly. The guides can be replaced when another test width is required. The wide workbench enables you to easily perform your tests. The auto detect option leaves your hands free to slide in your sample. The touchscreen has clear buttons makes navigation quick and easily. As an option, the instrument can be adapted for wet test according to ISO 12625-5.
Test Results. After the tests the values are shown in a graph and in statistical values. The main results are force, strain, T.E.A, elongation and force, and there is a wide range of other results. The instrument is equipped with an overload protection and can be supplied with a 50, 100, 250, 500 or 1,000N load cell.
84-56 Horizontal Tensile Tester for measuring tensile properties. It is sensitive with precision to measure on tissue and strong enough to measure on packaging board.
Technical Specifications
| Model | 84-56 Series |
|---|---|
| Accuracy | 0.5% of full range, or within 0.5N whichever is greater |
| Test speed | 10 – 200mm/min (0.2 – 0.8 in/min) |
| Sample length | 50 – 180 mm (0.04 – 7 inch) |
| Sample width | 15, 25, 50, 75mm (0.5, 1, 2, 3 inch) |
| Dimensions (LxWxH) | 800 x 500 x 300 mm (31.5 x 19,7 x 11.8 in) |
| Weight | 45 kg (100 lb.) |
Key Features
Model 84-56
- Sample with of 15, 25, 50 and 75mm or ½”, 1”, 2” and 3” test width
- Test speed 10-200mm/min (0,2-0,8 inch/min)
- Sample length 50 – 180mm
- Wet test options
- Load cell ranges: 50, 100, 250, 500 or 1,000N
- Auto detect of sample
84-56 Horizontal Tensile Tester
