Kirsch – Medical Cooling
KIRSCH is the market leader for pharmaceutical refrigerators in Germany. Each refrigerator is particularly made to meet the demanding DIN 58345 regulation. Our products are market leading in temperature stability and quality.
Available Models
Technical Specifications
| Capacity | 80 l |
|---|---|
| Temperature setting (approx.) | +2 to +12 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumtion | 100 Wats |
| Normal consumption | 0,60 KW / 24 h |
| Overall dimensions | Overall dimensions |
| (incl. distance from wall) | 47 x 51 x 74 (w x d x h in cm) |
| Interior dimensions | 38 x 41 x 63 (w x d x h in cm) |
| Usable dimensions | (usable depth above 5 cm, below 15 cm less) |
| Overall dimensions with door | Overall dimensions with door |
| opened at 90° | 47 x 96 (w x d in cm) |
| Shelf size | 23 x 37,8 (w x d in cm) |
| Drawer inner dimensions | 34 x 32 x 5,6 (w x d in cm) |
| Max. loading capacity per drawer/shelf | 9,5 kg / 25 kg |
| Weight | 31 kg / 37 kg (net / gross) |
Overview
- 3 drawers, 1 shelf
- Undercounter type
- Automatic defrosting
- Melt water evaporation
- Stepless temperature selection

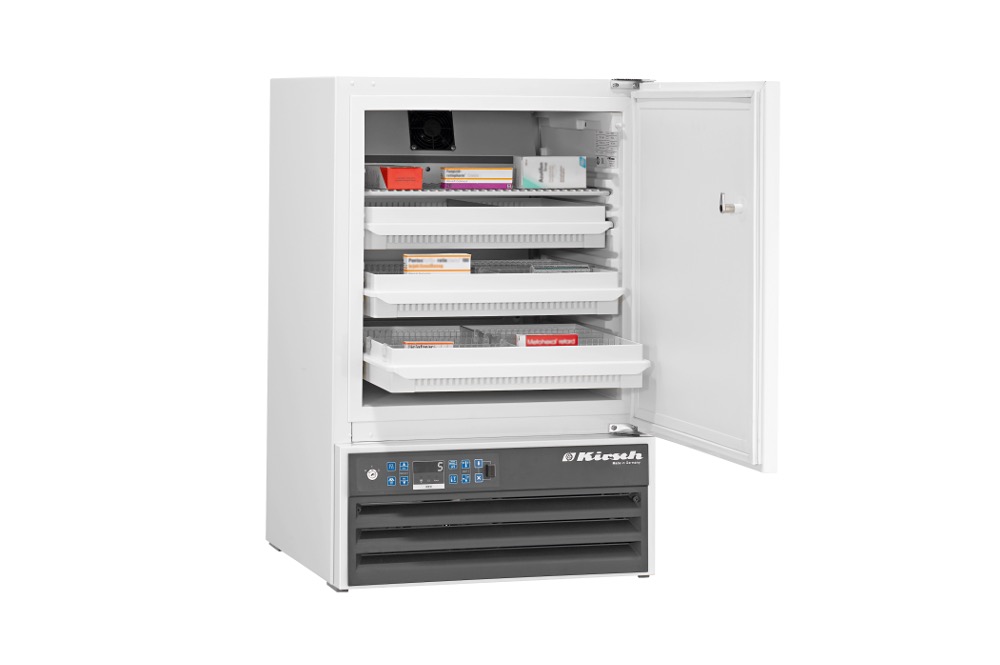

Technical Specifications
| Capacity | 95 l |
|---|---|
| Temperature Setting (approx.) | +2 to +20 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power Consumtion | 160 Watt |
| Normal Consumption | 0,65 KW / 24 h |
| Overall Dimensions | Overall dimensions |
| (incl. distance from wall) | 54 x 53,5 x 82 (w x d x h in cm) |
| Interior Dimensions | 44 x 43 x 47 (w x d x h in cm) |
| Usable Dimensions | 42 x 38 x 47 (w x d x h in cm) |
| Overall Dimensions with door | Overall dimensions with door |
| opened at 90° | 54 x 105,5 (w x d in cm) |
| Drawer Inner Dimensions | 40,8 x 32 x 5,6 (w x d x h in cm) |
| Shelf Dimensions | 43,8 x 33 (w x d in cm) |
| Max. Loading Capacity Per Drawer/Shelf | 13 kg / 25 kg |
| Weight | 46 kg / 50 kg (net / gross) |
Overview
- 3 drawers, 1 shelf, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Undercounter type
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Melt water evaporation
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- RS-485 interface for computer based temperature documentation
- Low-noise compressor

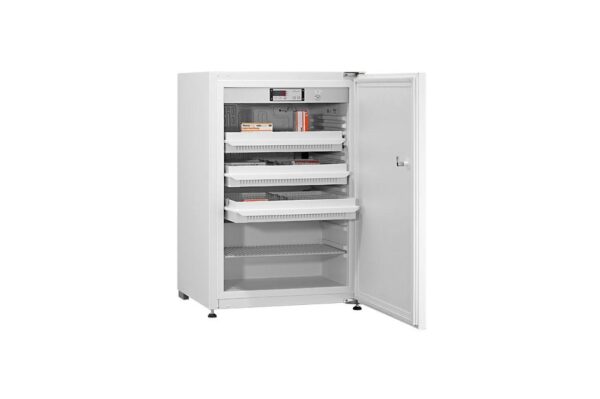

Technical Specifications
| Capacity | 120 l |
|---|---|
| Temperature setting (approx.) | +2 to +20 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumtion | 125 Watt |
| Normal consumption | 0,55 KW / 24 h |
| Overall dimensions | Overall dimensions |
| (incl. distance from wall) | 54 x 53,5 x 81 (w x d x h in cm) |
| Interior dimensions | 44 x 42 x 67 (w x d x h in cm) |
| Usable dimensions | usable depth above 5 cm, below 15 cm less, usable width 2 cm less |
| Overall dimensions with door opened at 90° | 54 x 105,5 (w x d in cm) |
| Drawer inner dimensions | 40,8 x 32 x 5,6 (w x d x h in cm) |
| Shelf dimensions | 43,8 x 24 (w x d in cm) |
| Max. loading capacity per drawer / shelf | 13 kg / 25 kg |
| Weight | 42 kg / 47 kg (net / gross) |
Overview
- 3 drawers and 1 shelf
- Recirculation air-cooling
- Undercounter type
- Automatic defrosting
- Melt water evaporation
- Digital temperature display
- Optical and acoustic warning device including power failure alarm
- Safety control prevents freezing
- Potential free contact for alarm transmission
Technical Specifications
| Capacity | 280 l |
|---|---|
| Temperature setting (approx.) | +2 to +20 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumtion | 155 Watt |
| Normal consumption | 1,00 KW / 24 h |
| Overall dimensions | Overall dimensions |
| (incl. distance from wall) | 67 x 70 x 124 (W x D x H in cm) |
| Interior dimensions | 53 x 50 x 100 (W x D x H in cm) |
| Usable dimensions | usable depth above 5 cm, below 13 cm less |
| Overall dimensions with door | Overall dimensions with door |
| opened at 90° | 67 x 130 (W x D in cm) |
| Drawer inner dimensions | 50 x 32 x 5,6 (W x D x H in cm) |
| Max. loading capacity per drawer | 16 kg |
| Weight | 78 kg / 87 kg (net / gross) |
Overview
- 5 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Melt water evaporation
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- RS-485 interface for computer based temperature documentation
Technical Specifications
| Capacity | 330 l |
|---|---|
| Temperature setting (approx.) | +2 to +20 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumtion | 155 Watt |
| Normal consumption | 1,20 KW / 24 h |
| Overall dimensions | Overall dimensions |
| (incl. distance from wall) | 67 x 63 x 181 (w x d x h in cm) |
| Interior dimensions | 53 x 45 x 128 (w x d x h in cm) |
| Usable dimensions | 53 x 40 x 128 (w x d x h in cm) |
| Overall dimensions with door | Overall dimensions with door |
| opened at 90° | 67 x 122 (w x d in cm) |
| Drawer inner dimensions | 50 x 32 x 5,6 (w x d x h in cm) |
| Max. loading capacity per drawer | 16 kg |
| Weight | 98 kg / 110 kg (net / gross) |
Overview
- 9 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Melt water evaporation
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- RS-485 interface for computer based temperature documentation
Technical Specifications
| Capacity | 460 l |
|---|---|
| Temperature setting (approx.) | +2 to +20 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumtion | 180 Watt |
| Normal consumption | 1,40 KW / 24 h |
| Overall dimensions | Overall dimensions |
| (incl. distance from wall) | 74 x 74,5 x 181 (w x d x h in cm) |
| Interior dimensions | 60 x 57 x 128 (w x d x h in cm) |
| Usable dimensions | 60 x 52 x 128 (w x d x h in cm) |
| Overall dimensions with door | Overall dimensions with door |
| opened at 90° | 74 x 139 (w x d in cm) |
| Drawer inner dimensions | 57 x 43 x 5,6 (w x d x h in cm) |
| Max. loading capacity per drawer | 24 kg |
| Weight | 130 kg / 143 kg (net / gross) |
Overview
- 10 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Melt water evaporation
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- RS-485 interface for computer based temperature documentation
- Low-noise compressor
Technical Specifications
| Capacity | 500 l |
|---|---|
| Temperature setting (approx.) | +2 to +20 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumtion | 330 Watt |
| Normal consumption | 2,45 KW / 24 h |
| Overall dimensions | Overall dimensions |
| (incl. distance from wall) | 77 x 76 x 193 – 196 (w x d x h in cm) |
| Interior dimensions | 60 x 57 x 140 (w x d x h in cm) |
| Usable dimensions | 60 x 47 x 140 (w x d x h in cm) |
| Overall dimensions with door | Overall dimensions with door |
| opened at 90° | 77 x 144 (w x d in cm) |
| Drawer inner dimensions | 57 x 39 x 5,6 (w x d x h in cm) |
| Max. loading capacity per drawer | 24 kg |
| Weight | 120 kg / 150 kg (net / gross) |
Overview
- 10 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Melt water evaporation
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- RS-485 interface for computer based temperature documentation
- Low-noise compressor
Technical Specifications
| Capacity | 500 l |
|---|---|
| Temperature setting (approx.) | +2 to +20 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumtion | 330 Watt |
| Normal consumption | 2,45 KW / 24 h |
| Overall dimensions | Overall dimensions |
| (incl. distance from wall) | 77 x 76 x 193 – 196 (w x d x h in cm) |
| Interior dimensions | 60 x 57 x 140 (w x d x h in cm) |
| Usable dimensions | 60 x 47 x 140 (w x d x h in cm) |
| Overall dimensions with door | Overall dimensions with door |
| opened at 90° | 77 x 144 (w x d in cm) |
| Drawer inner dimensions | 57 x 39 x 5,6 (w x d x h in cm) |
| Max. loading capacity per drawer | 24 kg |
| Weight | 120 kg / 150 kg (net / gross) |
Overview
- 13 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Melt water evaporation
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- RS-485 interface for computer based temperature documentation
Advantages
Depending on the individual model type, the refrigerators also feature:
- Re-circulating air cooling
- Optimized ventilation plates to minimize interior temperature differences
- Easy-to-read LED temperature display
- Automatical defrosting and melt water evaporation
- Easy accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Optical and acoustical alarm including power failure alarm
- Minimum/maximum temperature memory
- Safety device to prevent freezing
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission
- Height-adjustable drawers
- Individual drawer division with adjustable length and cross dividers.
- Low-noise compressor

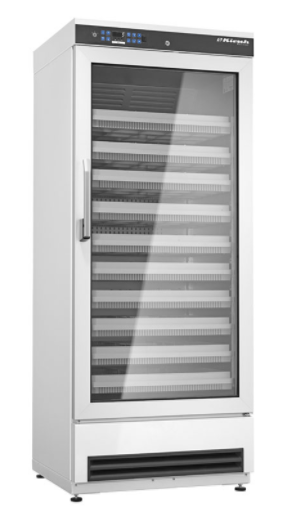

Glass doors are available for most models, as well as a decorative installation frame or door coupling fittings.
Key Industries
- Biopharmaceutical and Biotechnology
- Cosmetics & Personal Care
- Food & Beverage
- Medical
- Pharmaceutical
KIRSCH- Reliable cooling in labs and health care. Since 1865 our name has been synonymous with high-quality products which meet…
