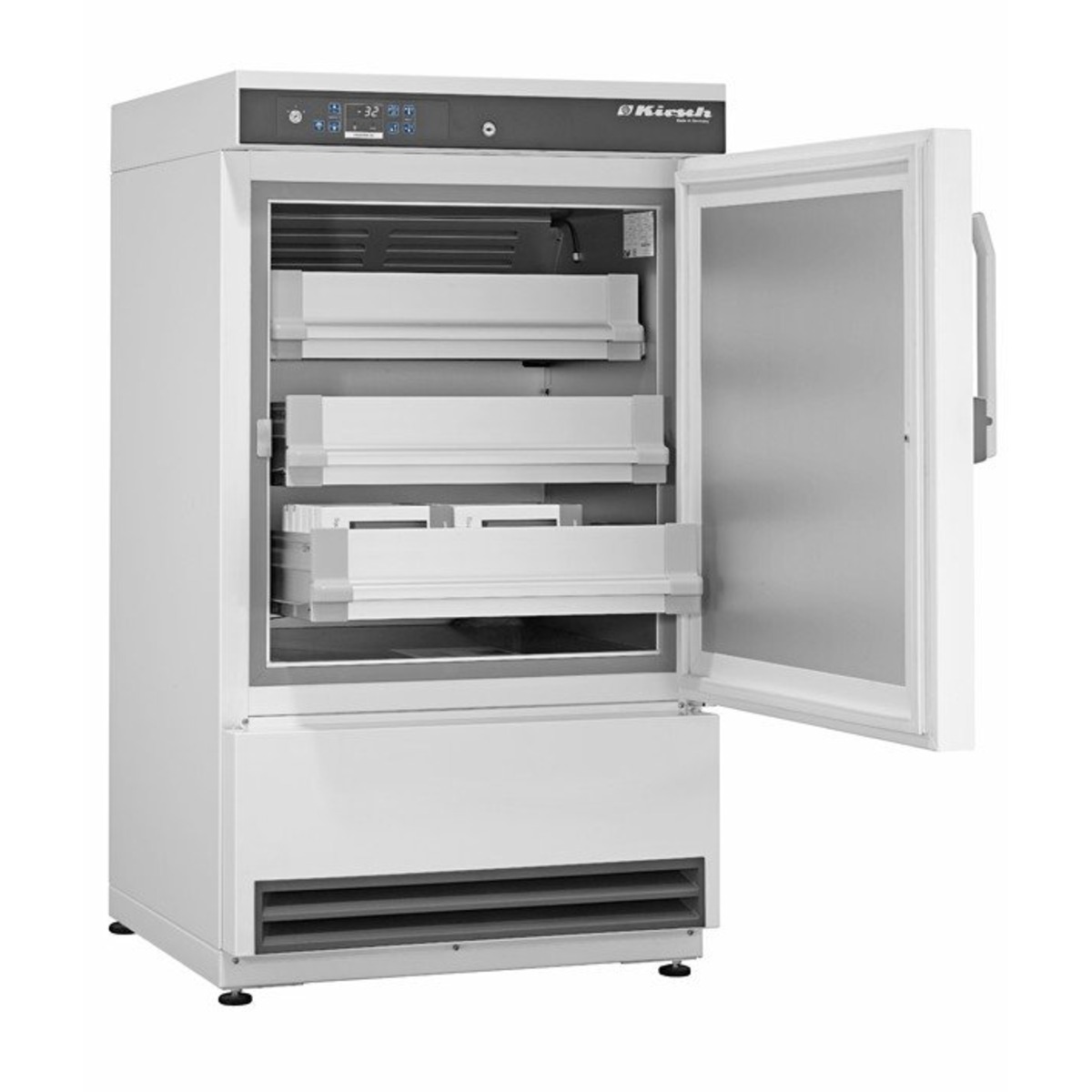

Kirsch Blood Plasma Freezer
KIRSCH is the market leader for pharmaceutical refrigerators and freezers in Germany. Each freezer is particularly made to meet the demanding DIN 58345 regulation. Kirsch products are market leading in temperature stability and quality.
Available Models
Technical Specifications
| Capacity | 170 l |
|---|---|
| Temperature setting (approx.) | -32°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 460 Watt |
| Normal consumption | 5,3 KW / 24 h |
| Overall dimensions incl. distance from wall | 70 x 77 x 122 (w x d x h in cm) |
| Interior dimensions | 55 x 52 x 60 (w x d x h in cm) |
| Usable dimensions | 52 x 41 x 47 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 70 x 136 (w x d in cm) |
| Drawer inner dimensions | 50 x 34 x 10 (w x d x h in cm) |
| Max. loading capacity per drawer | 50 kg |
| Weight | 92 kg / 105 kg (net / gross) |
- 3 aluminium drawers
- Comfort controller
- Micro-processor controlled temperature and thawing
regulation to maximize temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission
- Lockable door
Technical Specifications
| Capacity | 170 l |
|---|---|
| Temperature setting (approx.) | -41°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 460 Watt |
| Normal consumption | 5,9 KW / 24 h |
| Overall dimensions incl. distance from wall | 70 x 77 x 122 (w x d x h in cm) |
| Interior dimensions | 55 x 52 x 60 (w x d x h in cm) |
| Usable dimensions | 53 x 37 x 47 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 70 x 136 (w x d in cm) |
| Drawer inner dimensions | 52 x 32 x 10 (w x d x h in cm) |
| Max. loading capacity per drawer | 50 kg |
| Weight | 100 kg / 110 kg (net / gross) |
- 3 stainless steel drawers
- Comfort controller
- Micro-processor controlled temperature and thawing
regulation to maximize temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission
- Lockable door
Technical Specifications
| Capacity | 300 l |
|---|---|
| Temperature setting | -32°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 490 Watts |
| Normal consumption | 6,85 KW / 24 h |
| Overall dimensions incl. distance from wall | 74 x 78 x 159 (w x d x h in cm) |
| Interior dimensions | 59 x 52 x 95 (w x d x h in cm) |
| Usable dimensions | 57 x 42 x 82 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 74 x 142 (w x d in cm) |
| Drawer inner dimensions | 54 x 37 x 10 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 120 kg / 135 kg (net / gross) |
- 4 aluminium drawers
- Comfort controller
- Micro-processor controlled temperature and thawing
regulation to maximize temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Height-adjustable drawers
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission
- Lockable door
Technical Specifications
| Capacity | 500 l |
|---|---|
| Temperature setting | -32°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 730 Watts |
| Normal consumption | 9,8 KW / 24 h |
| Overall dimensions incl. distance from wall | 77 x 76 x 193 – 196 (w x d x h in cm) |
| Interior dimensions | 62 x 56 x 140 (w x d x h in cm) |
| Usable dimensions | 60 x 45 x 127 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 77 x 144 (w x d in cm) |
| Drawer inner dimensions | 56 x 39 x 10 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 161 kg / 183 kg (net / gross) |
- 4 aluminium drawers
- Comfort controller
- Micro-processor controlled temperature and thawing
regulation to maximize temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Height-adjustable drawers
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission
- Lockable door
Technical Specifications
| Capacity | 650 l |
|---|---|
| Temperature setting | -41°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 960 Watts |
| Normal consumption | 11,1 KW / 24 h |
| Overall dimensions incl. distance from wall | 83 x 102 x 197 (w x d x h in cm) |
| Interior dimensions | 62 x 76 x 131 (w x d x h in cm) |
| Usable dimensions | 59 x 65 x 118 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 86 x 177 (w x d in cm) |
| Drawer inner dimensions, upper drawer | 59 x 56 x 22 (w x d x h in cm) |
| Drawer inner dimensions, 4 drawers below | 59 x 62 x 22 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 220 kg / 260 kg (net / gross) |
- 5 stainless steel drawers
- Comfort controller
- Micro-processor controlled temperature and thawing
regulation to maximize temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission
- Lockable door
Technical Specifications
| Capacity | 300 l |
|---|---|
| Temperature setting | -32°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 490 Watts |
| Normal consumption | 6,85 KW / 24 h |
| Overall dimensions incl. distance from wall | 74 x 78 x 159 (w x d x h in cm) |
| Interior dimensions | 59 x 52 x 95 (w x d x h in cm) |
| Usable dimensions | 57 x 42 x 82 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 74 x 142 (w x d in cm) |
| Drawer inner dimensions | 54 x 37 x 10 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 120 kg / 135 kg (net / gross) |
- 5 aluminium drawers
- Comfort controller
- Micro-processor controlled temperature and thawing
regulation to maximize temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Height-adjustable drawers
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission
- Lockable door
Key Features
Advantages
- DIN 58375 compliant
- Aluminium / stainless steel drawers
- Comfort controller
- Micro-processor controlled temperature and thawing regulation to maximize
temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulating air cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Height-adjustable drawers*
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS-485 interface for computer based temperature documentation
- Potential free contact for alarm transmission.
*Except FROSTER-BL-178, FROSTER-BL-180 and FROSTER-BL-650.
Key Industries
- Biopharmaceutical and Biotechnology
- Cosmetics & Personal Care
- Food & Beverage
- Medical
- Pharmaceutical
