Idex – VHP Fittings – VHP PK Fittings

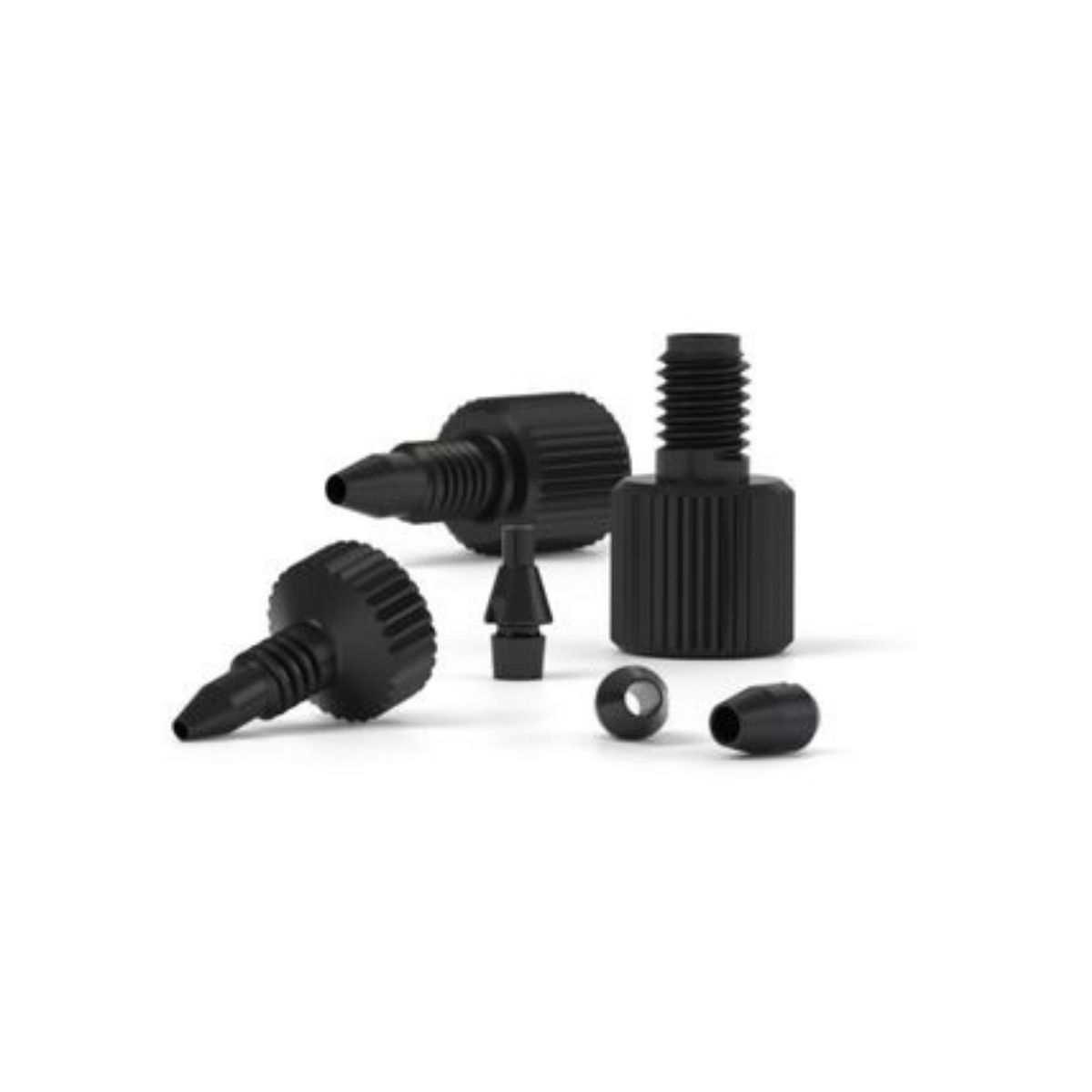

Our UHPLC fittings are manufactured from a proprietary PEEK blend (PK) which allow them to be used at higher temperatures (up to 200 °C) and higher pressures. The VHP PK One-Piece fittings are available for 10-32 coned, 6-32 coned, or M4 coned ports, and Two-Piece fittings are available to connect either 1/16 inches or 1/32 inches outer diameter tubing into 10-32 coned ports in multiple styles. VHP MicroFerrules are made from a proprietary high performance PEEK polymer blend, a material which is unique in its ability to enable the use of capillary tubing in UHPLC environments. The new high pressure MicroFerrules are available for use with 1/32 inches or 360 μm outer diameter tubing, and they are incorporated into several of our VHP products for capillary tubing.

Inquiry Now

Overview

Features

Specifications

Available Models

Our Very High Pressure (VHP) LiteTouch Fitting is manufactured from a proprietary PEEK blend (PK) which allows it to be used at significantly higher temperatures (up to 200°C). This material’s characteristics allow the ferrule to operate at much higher pressures than conventional PEEK. Our LiteTouch design is ideally suited for tubing assemblies for coned ports. The mechanical design of the ferrule effectively prevents tubes from twisting.


List of available VHP PK LiteTouch® Fittings

MaterialThread Port ConfigurationFor outer diameter tubingPressure Rating MaxOption for Pack
PK (Ferrule Assembly)10-32 Coned1/16 inches16500 psi/1140 barPack of 10 units
PK (Nut)10-32 Coned1/16 inches16500 psi/1140 barPack of 10 units
PK (Ferrule Assembly)10-32 Coned1/32 inches16500 psi/1140 bar –

VHP MicroFerrules are made from a proprietary high performance PEEK polymer blend (PK). Our PK material’s characteristics allows our MicroFerrule to operate at much higher pressures than conventional PEEK. Our unique PK blend offers the unique ability to enable the use of capillary tubing in UHPLC environments.


List of available VHP PK MicroFerrules

MaterialThread Port ConfigurationFor outer diameter tubingPressure Rating Max
PK5/16-24 Coned1/32 inches15000 psi/1035 bar
PK5/16-24 Coned360 µm15000 psi/1035 bar

Our Very High Pressure ( VHP) One-Piece Fitting is manufactured from a proprietary PEEK blend (PK) which allows it to be used at significantly higher temperatures (up to 200°C). Our PK material’s characteristics allows the one-piece fitting to operate at much higher pressures than conventional PEEK.


List of available VHP PK One-Piece Fittings

MaterialThread Port ConfigurationFor outer diameter tubingPressure Rating MaxRequired TorqueHead StyleOption for Pack
PK10-32 Coned1/16 inches12000 psi/ 827 bar8.0in-lbs. (0.90 N-m)Standard KnurlPack of 10 units
PK6-32 Coned360 µm15000 psi/1035 bar3.0 in-lbs. (0.34 N-m)Standard Micro Knurl –
PK 6-32 Coned1/32 inches15000 psi/1035 psi3.0 in-lbs. (0.34 N-m)Standard Micro Knurl, Headless Micro Knurl –
PKM4 Coned1/32 inches15000 psi/1035 bar4.0 in-lbs. (0.45 N-m)Headless KnurlPack of 10 units

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
