Idex – Degassers – Vacuum Control System

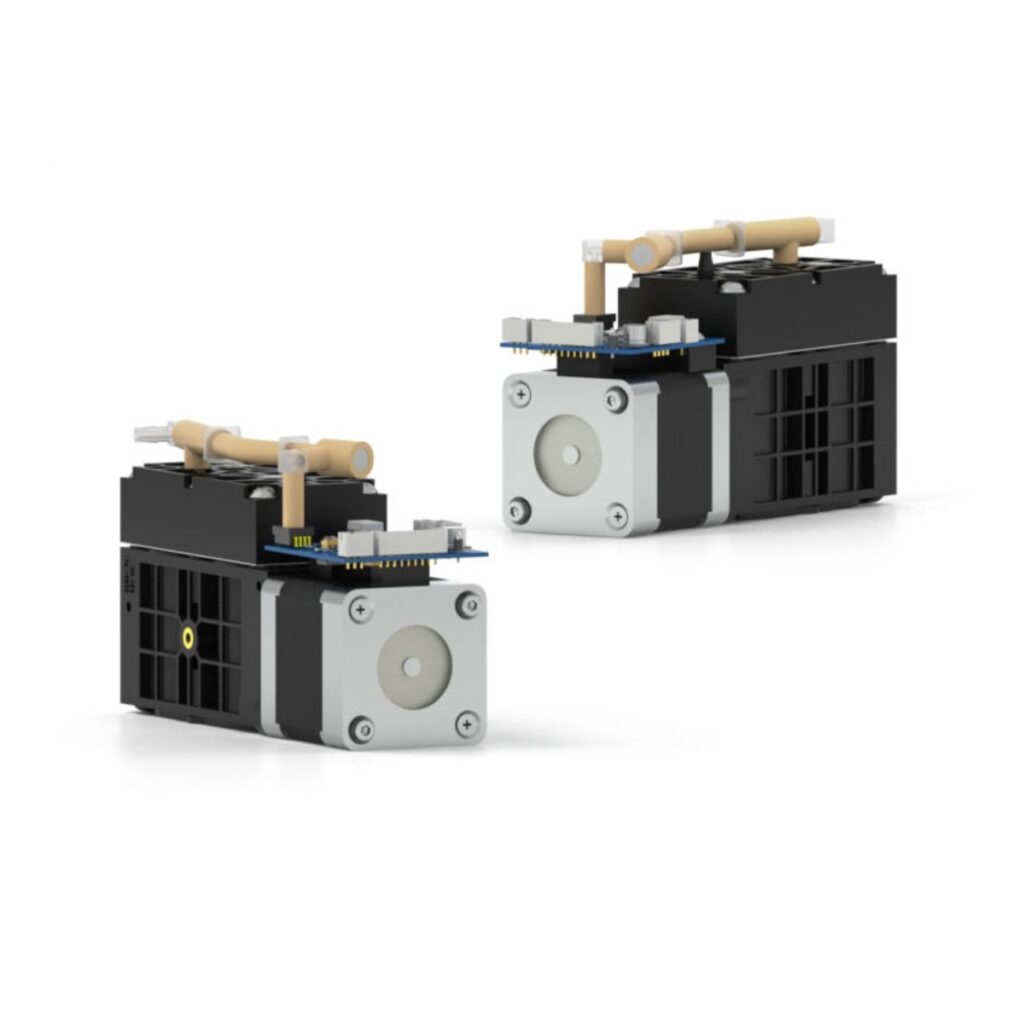

The Vacuum Control Systems are designed for use with any IDEX degassing chamber. The electronics are integrated and maintain precise vacuum levels for consistent error free degassing.

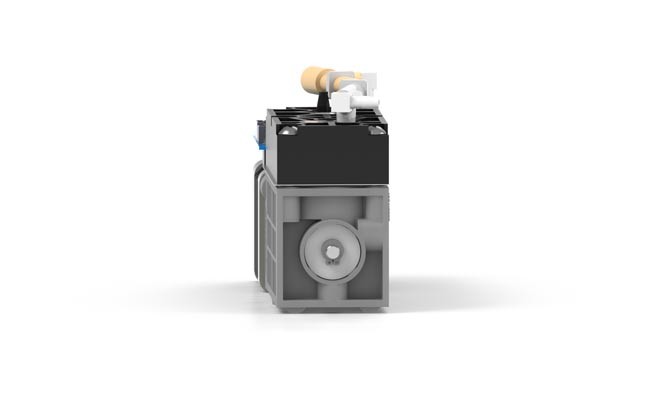

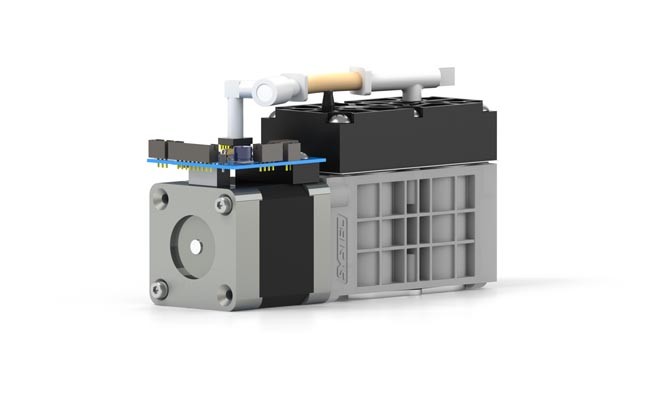

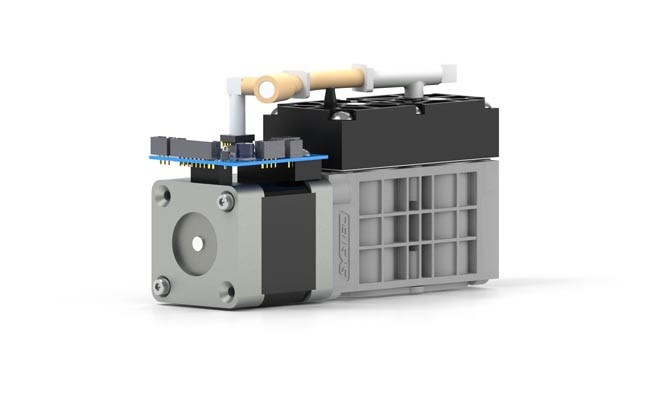

The electronics are integrated for into the pump for the smallest form factor plug and play operation possible. Choose the “Prep” version of the pump for use with water based or high flow applications. Choose the “Analytical” version for low flow applications. The pumps are available with side mount or bottom mount screw holes.
Key Features
- Integrated electronics for seamless plug-and-play operation.
- Continuous head purges to maintain moisture-free pump performance.
- Available in analytical and preparative versions for varying flow applications.
Available Models
Technical Specifications
| Length (in) | 5.04 |
|---|---|
| Pressure Rating Max (psi) | 70 |
| Pump Head Continuous Purge (SCCM) | 12 |
| Power Requirements | 24 VDC @ 0.75 Amp max (< 5 Watts consumption average) |
| Vacuum Flow Path Materials | 303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber |
| Vacuum Connection | Barb connector for 1/8” ID elastomeric tubing |
| Airflow | 650 SCCM @ 400 RPM; 100 SCCM @ 60 RPM |
| Vacuum Performance | 50 mmHg @ (60±20) RPM (3 SCCM air flow, closed loop) |
| Expected Lifetime | >5 years (continuous run @ 60 RPM) |
| Pump Down Time | N/A |
| Width (in) | 1.65 |
| Height (in) | 2.6 |
Our Degassing Vacuum Control System is designed for simple plug and play operation into most IDEX degassing chambers. Simply provide 24DC and the system will automatically provide vacuum to the specified vacuum level. Built in continuous head purges ensure that moisture and vapor are swept out of the pump to maintain consistent performance. An optional connector is available for LED error outputs.
Technical Specifications
| Length (in) | 5.04 |
|---|---|
| Pressure Rating Max (psi) | 70 |
| Pump Head Continuous Purge (SCCM) | 12 |
| Power Requirements | 24 VDC @ 0.75 Amp max (< 5 Watts consumption average) |
| Vacuum Flow Path Materials | 303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber |
| Vacuum Connection | Barb connector for 1/8” ID elastomeric tubing |
| Airflow | 650 SCCM @ 400 RPM; 100 SCCM @ 60 RPM |
| Vacuum Performance | 50 mmHg @ (60±20) RPM (3 SCCM air flow, closed loop) |
| Expected Lifetime | >5 years (continuous run @ 60 RPM) |
| Pump Down Time | N/A |
| Width (in) | 1.65 |
| Height (in) | 2.6 |
Our Degassing Vacuum Control System is designed for simple plug and play operation into most IDEX degassing chambers. Simply provide 24DC and the system will automatically provide vacuum to the specified vacuum level. Built in continuous head purges ensure that moisture and vapor are swept out of the pump to maintain consistent performance. An optional connector is available for LED error outputs.
Technical Specifications
| Length (in) | 5.04 |
|---|---|
| Pump Head Continuous Purge (SCCM) | 30 |
| Power Requirements | 24 VDC @ 0.75 Amp max (< 5 Watts consumption average) |
| Vacuum Flow Path Materials | 303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber |
| Vacuum Connection | Barb connector for 1/8” ID elastomeric tubing |
| Airflow | 650 SCCM @ 400 RPM; 100 SCCM @ 60 RPM |
| Vacuum Performance | 80 mmHg @ (60±20) RPM (3 SCCM air flow, closed loop) |
| Expected Lifetime | >5 years (continuous run @ 60 RPM) |
| Pump Down Time | N/A |
| Width (in) | 1.65 |
| Height (in) | 2.6 |
Our Degassing Vacuum Control System is designed for simple plug and play operation into most IDEX degassing chambers. Simply provide 24DC and the system will automatically provide vacuum to the specified vacuum level. Built in continuous head purges ensure that moisture and vapor are swept out of the pump to maintain consistent performance. An optional connector is available for LED error outputs.
Technical Specifications
| Length (in) | 5.04 |
|---|---|
| Pressure Rating Max (psi) | 70 |
| Pump Head Continuous Purge (SCCM) | 30 |
| Power Requirements | 24 VDC @ 0.75 Amp max (< 5 Watts consumption average) |
| Vacuum Flow Path Materials | 303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber |
| Vacuum Connection | Barb connector for 1/8” ID elastomeric tubing |
| Airflow | 650 SCCM @ 400 RPM; 100 SCCM @ 60 RPM |
| Vacuum Performance | 80 mmHg @ (60±20) RPM (3 SCCM air flow, closed loop) |
| Expected Lifetime | >5 years (continuous run @ 60 RPM) |
| Pump Down Time | N/A |
| Width (in) | 1.65 |
| Height (in) | 2.6 |
Our Degassing Vacuum Control System is designed for simple plug and play operation into most IDEX degassing chambers. Simply provide 24DC and the system will automatically provide vacuum to the specified vacuum level. Built in continuous head purges ensure that moisture and vapor are swept out of the pump to maintain consistent performance. An optional connector is available for LED error outputs.
