Idex – Valves – Stand Alone Valves

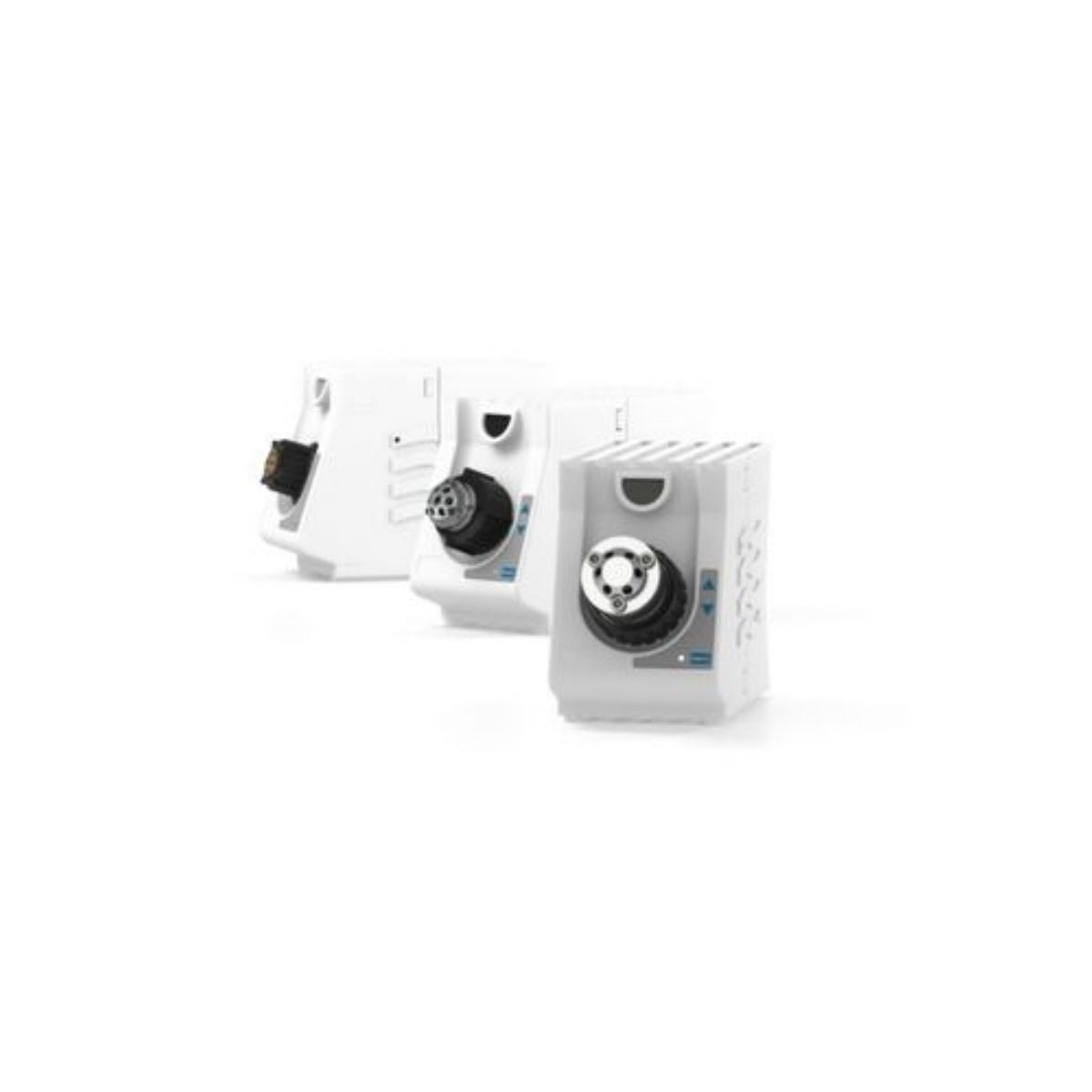

Our Stand Alone Valve Products offer more sophisticated functionality. Versatile, they can be added to your existing instrument or in stand-alone lab configurations. Choose an automated valve if the application requires fast, consistent sample injection or flow-stream switching. Some other advantages of automated valves include control options (PC- or instrument-triggered), higher pressure operation, valve-position feedback, or very small flow paths. Note: For Valves please allow an additional 8 days lead time.
Available Models
| Thread Port Configuration Coned | 10-32 |
|---|---|
| Pressure Rating Max (psi) | 15000 |
| Pressure Rating Max (bar) | 1034 |
| For Tubing OD (in) | 1/16 |
MX Series II™ actuated valves are designed to be added to your existing instrument or to work optimally with stand-alone lab configurations. Our valves can be controlled remotely or operated manually using the push-button front panel with LED position indicator. They easily connect to your instrument or PC through contact closure, BCD, serial port, or USB. Commands can be sent to the MX valves using your chromatography software or the included proprietary software for timed-events programmability.

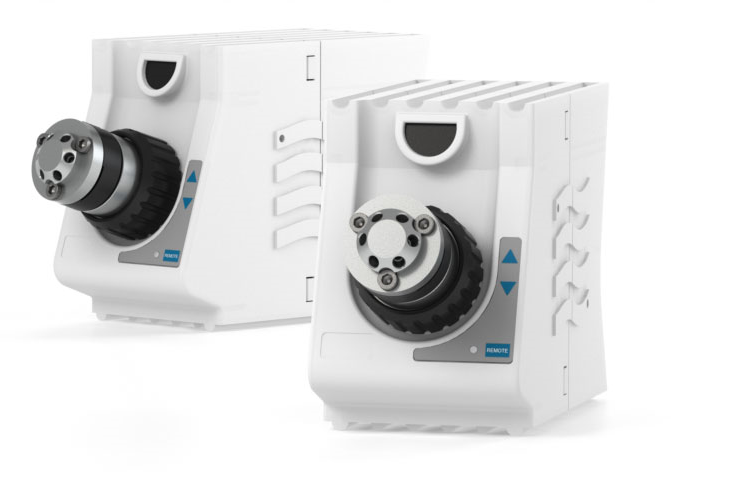

Our ultra high pressure actuated valves are designed to be added to your existing instrument or to work optimally with stand-alone lab configurations. Our high pressure valves offer switching, injection, and selection valve functionality ideal for UHPLC applications. These valves have a pressure rating of up to 15000 psi (1035 bar).
Note: For Valves please allow an additional 8 days lead time.
- 2 Position/6 Port UltraLife™ Switching Valve
- 2 Position/10 Port UltraLife Switching Valve
- 6 Position/7 Port UltraLife Selector Valve
MX Series II™ actuated valves are designed to be added to your existing instrument or to work optimally with stand-alone lab configurations. Our valves can be controlled remotely or operated manually using the push-button front panel with LED position indicator. They easily connect to your instrument or PC through contact closure, BCD, serial port, or USB. Commands can be sent to the MX valves using your chromatography software or the included proprietary software for timed-events programmability.

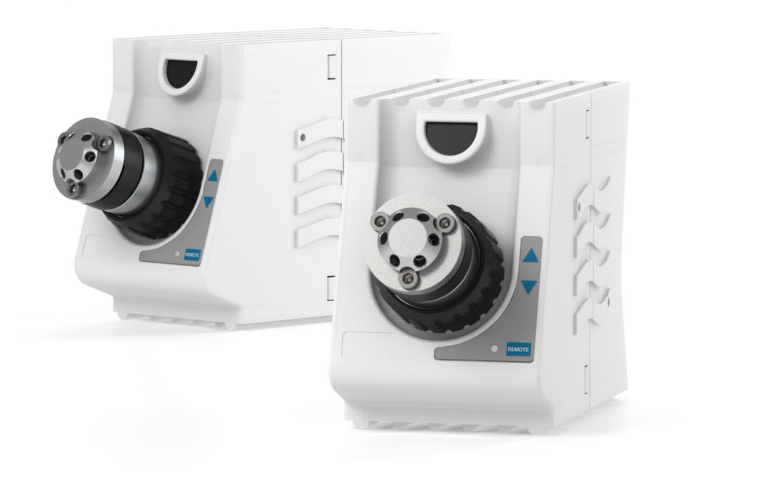

Our high pressure actuated valves are designed to be added to your existing instrument or to work optimally with stand-alone lab configurations. Our high pressure valves offer switching, injection and selection valve functionality. These valves have a pressure rating of up to 6000 psi (410 bar).
Note: For Valves please allow an additional 8 days lead time.
- 2 Position/6 Port, DuraLife, Switching Valve, 1/16 inches outer diameter
- 2 Position/6 Port, DuraLife, Vertical Port Valve, 1/16 inches outer diameter
- 2 Position/10 Port, DuraLife, Switching Valve, 1/16 inches outer diameter
- 6 Position/7 Port, DuraLife II, Selector Valve, 1/16 inches outer diameter
- 2 Position/6 Port, DuraLife II, M4, Switching Nano valve, 785µm outer diameter
- 2 Position/10 Port, DuraLife II, M4, Switching Nano Valve, 785µm outer diameter,
- 2 Position/6 Port, PEEK, Switching Valve, 1/16 inches outer diameter
- 2 Position/10 Port, PEEK, Switching Valve, 1/16 inches outer diamete
| Material | RPC-7 |
|---|---|
| Pressure Rating Max (psi) | 125 |
| Pressure Rating Max (bar) | 9 |
| For Tubing OD (in) | 1/16 – 1/8 |
MX Series II™ actuated valves are designed to be added to your existing instrument or to work optimally with stand-alone lab configurations. Our valves can be controlled remotely or operated manually using the push-button front panel with LED position indicator. They easily connect to your instrument or PC through contact closure, BCD, serial port, or USB. Commands can be sent to the MX valves using your chromatography software or the included proprietary software for timed-events programmability.

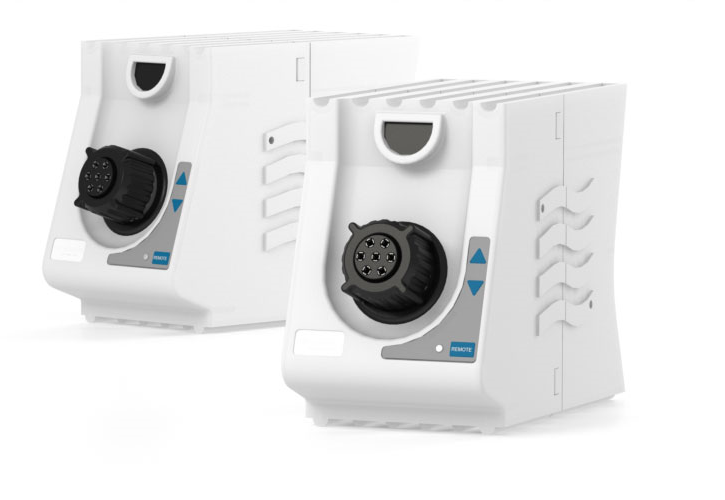

Our low pressure actuated valves are designed to be added to your existing instrument or to work optimally with stand-alone lab configurations. Our low pressure valves offer switching or selection valve functionality. Our low pressure valves have a pressure rating of up to 125psi (9 bar).
Note: For Valves please allow an additional 8 days lead time.
- 2 Position/6 Port, Double 3 Way Valve
- 6 Position/7 Port, Selector Valve
- 2 Position/6 Port, Large Bore Switching Valve
- 6 Position/7 Port, Large Bore Selector Valve
- 10 Position/11 Port, Selector Valve
- 2 Position/6 Port, Switching Valve
