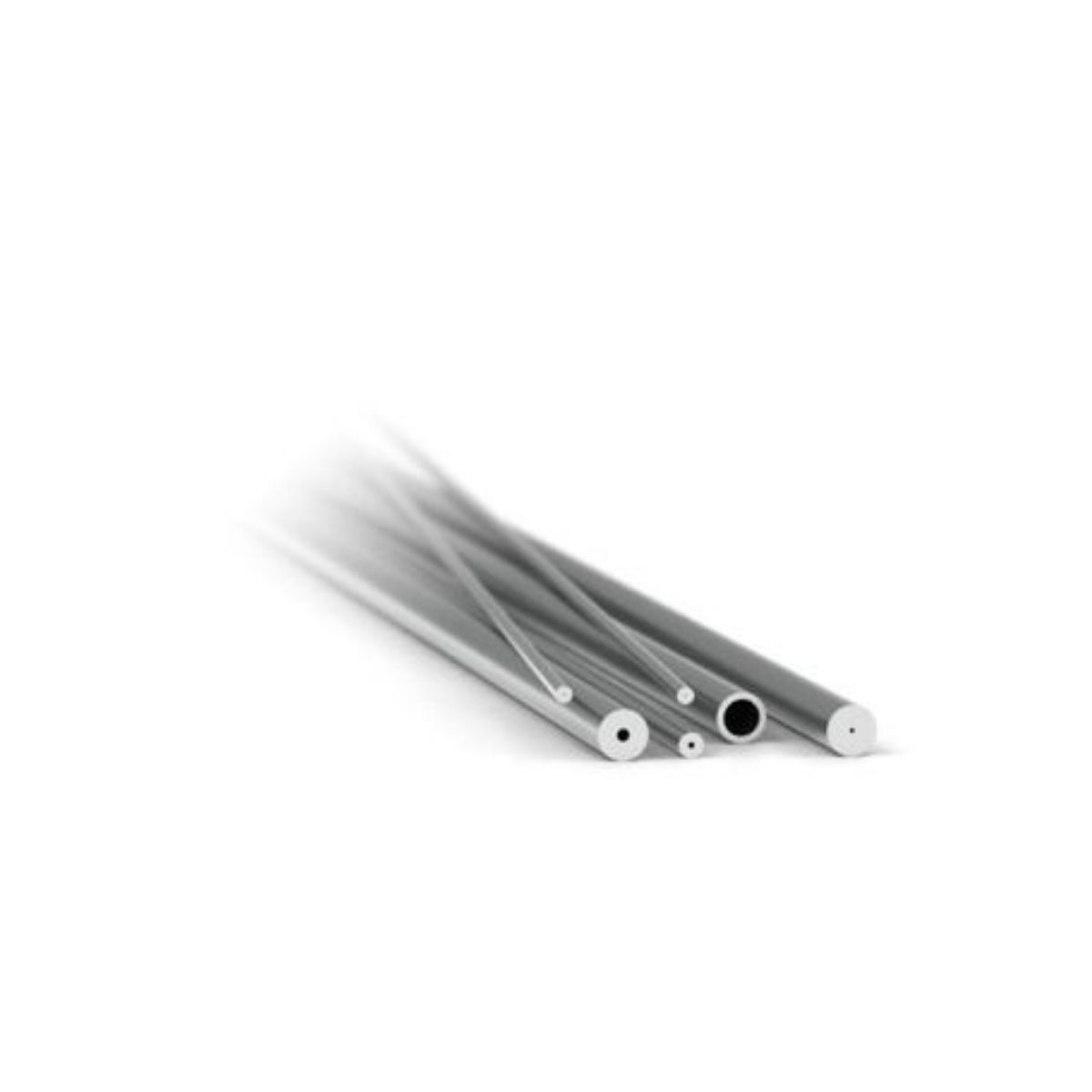

Idex – High Pressure Tubing – Stainless Steel Tubing

Seamless, pre-cut 316 stainless steel tubing meets the exacting requirements of today’s analyses. Thorough preparation guarantees that our tubing is truly ready-to-use, with flat-burr-free ends and a clean finish, which ensures zero dead volume connections and good chromatographic results. Each machine-cut end is polished, deburred on the edges and passivated. High-pressure stainless steel tubing can be sterilized by numerous methods; however, the color-coded band should be removed if present. We offer a wide selection of outer- and inner-diameters and lengths. Cutting the tubing disturbs the tubing’s surface so we recommend using precut lengths whenever possible. In addition, our high-pressure stainless steel tubing comes with the additional feature of a color-coded band for easy ID identification. IDEX Health & Sciences provides high-pressure tubing to enable complete optimization of the fluidic pathway. We are the global fluidics leader best known for our expertise in highly engineered fluidics systems and components, and are committed to partnering with you to make your flow path successful and efficient.

Inquiry Now

Overview

Features

Specifications

Available Models

MaterialStainless Steel
Pressure Rating Max (psi)7600
Pressure Rating Max (bar)524
Tubing inner diameter (inches)0.080
Tubing inner diameter (mm)2
Tubing outer diameter (inches)1/8
  • Stainless Steel Tubing 1/8 inches outer diameter x 0.080 inches inner diameter 15cm length
  • Stainless Steel Tubing 1/8 inches outer diameter x 0.080 inches inner diameter 25cm length
  • Stainless Steel Tubing 1/8 inches outer diameter x 0.080 inches inner diameter 1m length
  • Stainless Steel Tubing 1/8 inches outer diameter x 0.080 inches inner diameter 3m length
  • Stainless Steel Tubing 1/8 inches outer diameter x 0.080 inches inner diameter 5m length

Stainless Steel Tubing is specifically designed to meet the exacting requirements of today’s analyses. Our pre-cut tubing is put through rigorous preparation that leave it ready to use with flat, burr free ends and a clean finish. This thorough process results in zero dead volume connections and excellent chromatographic results.

Stainless Steel Tubing is specifically designed to meet the exacting requirements of today’s analyses. Our pre-cut tubing is put through rigorous preparation that leave it ready to use with flat, burr free ends and a clean finish. This thorough process results in zero dead volume connections and excellent chromatographic results.

Note that all stainless steel tubings 25ft, 50ft and 100ft length are considered bulk tubing and are not ready for immediate use. The ends have not been polished as has our shorter pre-cut lengths.


List of available measurements of Stainless Steel tubings with outer diameter of 1/16 inches

Pressure Rating MaxInner diameterLengthColour Band
5800 psi/400 bar0.046 inches/1.15 mm5 cm, 10 cm, 20 cm, 30 cm, 50 cm, 1m, 5ftNone
8100 psi/558 bar                0.040 inches/1 mm5 cm, 10 cm, 20 cm, 30 cm, 50 cm, 1m, 5ft, 25ft, 100ftNone
12000 psi/827 bar0.030 inches/0.750 mm                                  10 cm, 20 cm, 30 cm, 0.5m, 1m, 5ft, 25ft, 100ftWhite
15800 psi/1089 bar                           0.020 inches/0.500 mm5 cm, 10 cm, 20 cm, 30 cm, 0.5m, 1m, 5ft, 25ftYellow
19700 psi/1385 bar                            0.010 inches/0.250 mm5 cm, 10 cm, 20 cm, 30 cm, 0.5m, 1m, 25ftBlue
20900 psi/1441 bar180µm/0.175 mm5 cm, 10 cm, 20 cm, 30 cm, 50 cm, 1m, 25ftBlack
21600 psi/1489 bar125µm/0.125 mm5 cm, 10 cm, 20 cm, 30 cm, 50 cm, 1m, 5ft, 25ft, 50ftRed

Stainless Steel Tubing is specifically designed to meet the exacting requirements of today’s analyses. Our pre-cut tubing is put through rigorous preparation that leave it ready to use with flat, burr free ends and a clean finish. This thorough process results in zero dead volume connections and excellent chromatographic results.


List of available measurements of Stainless Steel tubings with outer diameter of 1/32 inches

Pressure Rating MaxInner diameterLengthColour Band
10000 psi/689 bar0.018 inches/0.450 mm5 cm, 10 cm, 20 cm, 30 cmBlack
12300 psi/848 bar0.015 inches/0.400 mm5 cm, 10 cm, 20 cm, 30 cmGreen
16200 psi/1117 bar0.010 inches/0.250 mm5 cm, 10 cm, 20 cm, 30 cmBlue
17800 psi/1227 bar205µm/0.205 mm5 cm, 10 cm, 20 cm, 30 cmClear
19300 psi/1311 bar100µm/0.10 mm5 cm, 10 cm, 20 cm, 30 cmRed
19300 psi/1311 bar150µm/0.15 mm5 cm, 10 cm, 20 cm, 30 cmYellow
