Idex – Filters – Semi-Prep Filters

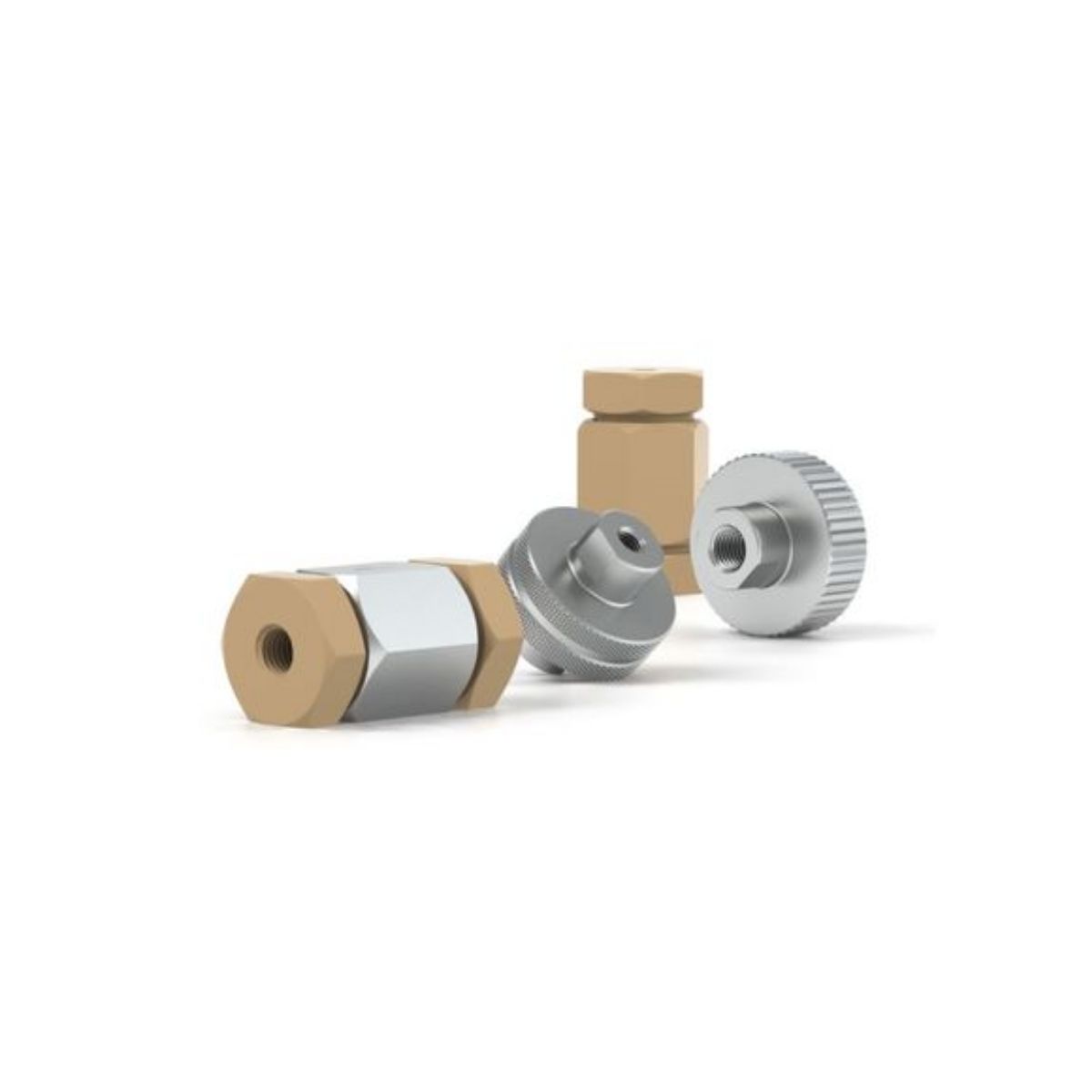

Biocompatible Semi-Prep Filters consist of a stainless steel body, two PEEK end fittings, and a separate PEEK frit. These filters are ideal for many higher flow analytical, semi-prep and preparative applications. Best of all, if the filter becomes clogged, simply unscrew the assembly, remove the frit and replace it. The frits are interchangeable.

Inquiry Now

Overview

Features

Specifications

Available Models

Our Semi-Prep Filter Assembly is meticulously designed for high flow applications


Technical Specifications

List of available Semi-Prep Filter Assemblies

PorositySwept VolumeThread Port Configuration Flat-BottomMaterialMax suggested Flow RatePressure Rating MaxFilter Type
10 µm235 µL5/16-24Stainless Steel100 mL/min2500 psi/172 barSemi-Prep
10 µm223 uL –Stainless Steel100 mL/min7500 psi/517 barSemi-Prep

Biocompatible Semi-Prep Inline Filters consist of a durable stainless steel body and has a biocompatible, 100% PEEK flow path. Our design makes this filter ideal for higher flow analytical, semi-prep and preparative applications.


Technical Specifications

List of available Semi-Prep Inline Filters

PorosityFor Tubing outer diameterMaterialFilter Type
5 µm3/16 inchesStainless Steel/PEEKSemi-Prep
5 µm1/8 inchesStainless Steel/PEEKSemi-Prep

Our Semi-Prep Inline Filter Assembly is ideal for higher flow analytical, semi-prep and preparative applications. It consists of a durable stainless steel body and a biocompatible 100% PEEK flow path.


Technical Specifications

List of available Semi-Prep Inline Filter Assemblies

PorositySwept VolumeThread Port Configuration ConedMaterialPressure Rating MaxFilter Type
2 µm89 µL10-32Stainless Steel/PEEK6000 psi/414 barSemi-Prep
10 µm103 µL10-32Stainless Steel/PEEK6000 psi/414 barSemi-Prep

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
