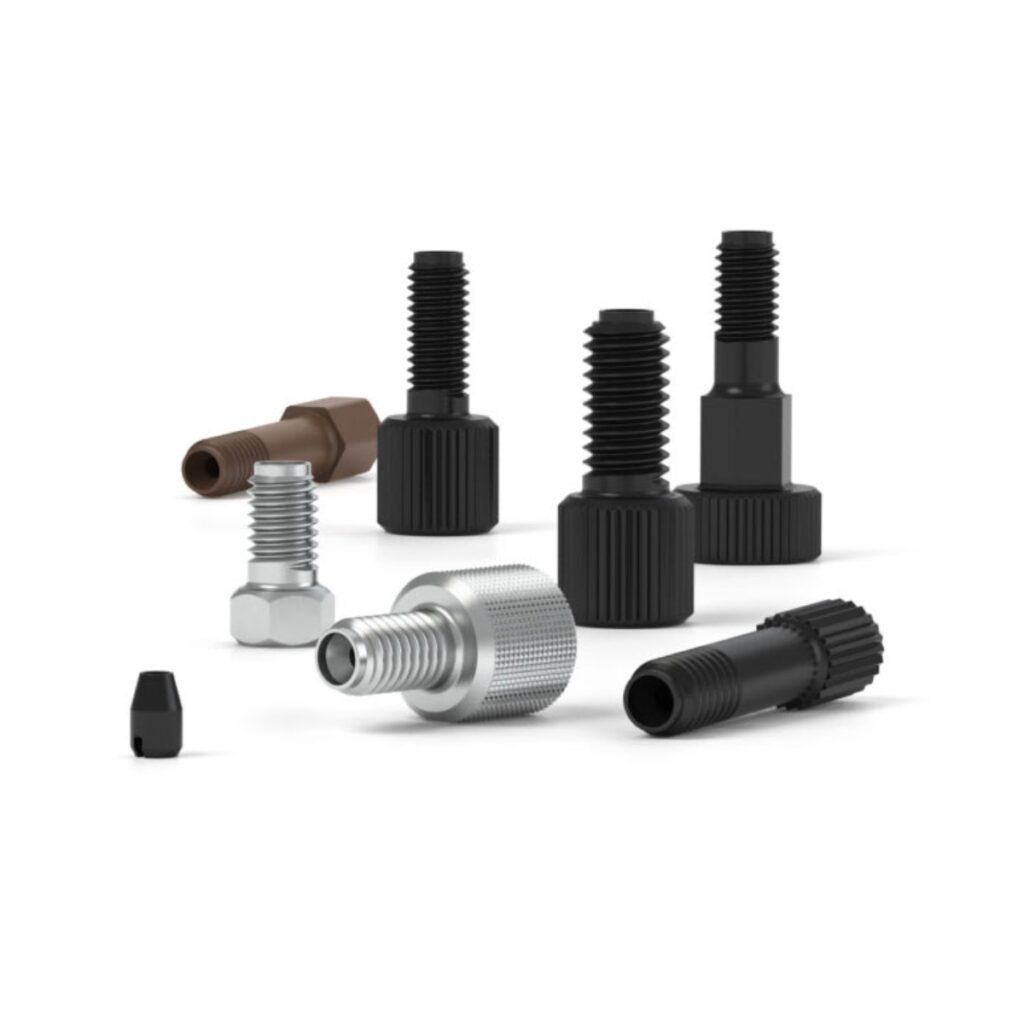

Idex – Coned Fittings – Two-Piece SealTight™ Fingertight Fittings

The dual compression created by the specially designed nut and ferrule enables the SealTight Fittings system to outperform standard finger tightened fittings. The forward cone of the SealTight Ferrule provides gripping power and a leak-free seal via conventional compression by the receiving port.

Inquiry Now

Overview

Features

Specifications

The slotted end creates the second compression zone in conjunction with a SealTight Nut. All SealTight Nuts are for use with 1/16 inches outer diameter tubing and are designed to be used with the F-192 Ferrule.

Key Features

  • Dual compression design for superior sealing and leak-free performance.
  • Manufactured from durable, biocompatible PEEK material, offering chemical resistance.
  • Available for 1/16 inches tubing with 10-32 or M6 coned port configurations.

Available Models

Technical Specifications

Thread Port Configuration Coned10-32 or M6
MaterialPEEK
Pressure Rating Max (psi)7000 to 9000
Pressure Rating Max (bar)483 to 620
For Tubing outer diameter (inches)1/16
  • SealTight™ Ferrule, 10-32-M6 Thread Port Configuration Coned, for 1/16 inches outer diameter – 1 unit
  • SealTight™ Ferrule, 10-32-M6 Thread Port Configuration Coned, for 1/16 inches outer diameter – Pack of 10 units

This SealTight Ferrule was created for the 2-Piece SealTight Fingertight Fittings. It has a slotted end which creates a second compression zone. The forward cone on the ferrule provides outstanding gripping power and a leak-free seal. It comes as a single or in a 10 pack.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialPEEK
Pressure Rating Max (psi)7000 to 9000
Pressure Rating Max (bar)483 to 620
For Tubing outer diameter (inches)1/16
  • SealTight™ Fitting, Length Style Short, Head Style 1/4 inches Hex-head , 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Black
  • SealTight™ Fitting, Length Style Short, Head Style Standard Knurl, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Black – 1 unit
  • SealTight™ Fitting, Length Style Short, Head Style Standard Knurl, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Black – Pack of 10 units
  • SealTight™ Fitting, Length Style Long, Head Style Standard Knurl, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Black
  • SealTight™ Fitting, Head Style Headless Knurl, M6 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Black – 1 unit

This PEEK Short, Two-Piece SealTight Fingertight Fitting is optimally designed so that the nut and ferrule create dual compression. The forward cone on the ferrule provides outstanding gripping power and a leak-free seal. Manufactured from biocompatible PEEK it offers excellent chemical resistance. It is black, has a 10-32 Coned port configuration, or a M6 Coned port configuration and it is designed to connect to 1/16 inches outer diameter tubing. This assembly comes with Ferrule F-192 and is available as a single set or a 10 pack.

Technical Specifications

Thread Port Configuration Coned10-32
Pressure Rating Max (psi)7000 to 9000
Pressure Rating Max (bar)483 to 620
For Tubing outer diameter (inches)1/16
  • SealTight™, Head Style 1/4 inches Hex Fat-Head, Material PEEK,10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter

Our Two-Piece SealTight Fingertight Fitting is designed so that the nut and ferrule create dual compression. The forward cone on the ferrule provides outstanding gripping power and a leak-free seal. Manufactured for biocompatible PEEK it offers excellent chemical resistance. It has a 10-32 port configuration, is for 1/16 inches outer diameter tubing and comes with Ferrule F-192. It comes in black.

  • SealTight™, Material Stainless Steel, Head Style FlushNut™, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter

Our SealTight Two-Piece Fingertight Fitting is designed so that the nut and ferrule create dual compression. The forward cone on the ferrule provides outstanding gripping power and a leak-free seal. Flush Nuts offers the answer for those tight-space applications where nut heads often interfere with each other. Manufactured from durable and strong stainless steel, it can withstand high pressures. It has a 10-32 port configuration, is for 1/16 inches outer diameter tubing.

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
