Idex – Column Hardware – Sample Trap Columns

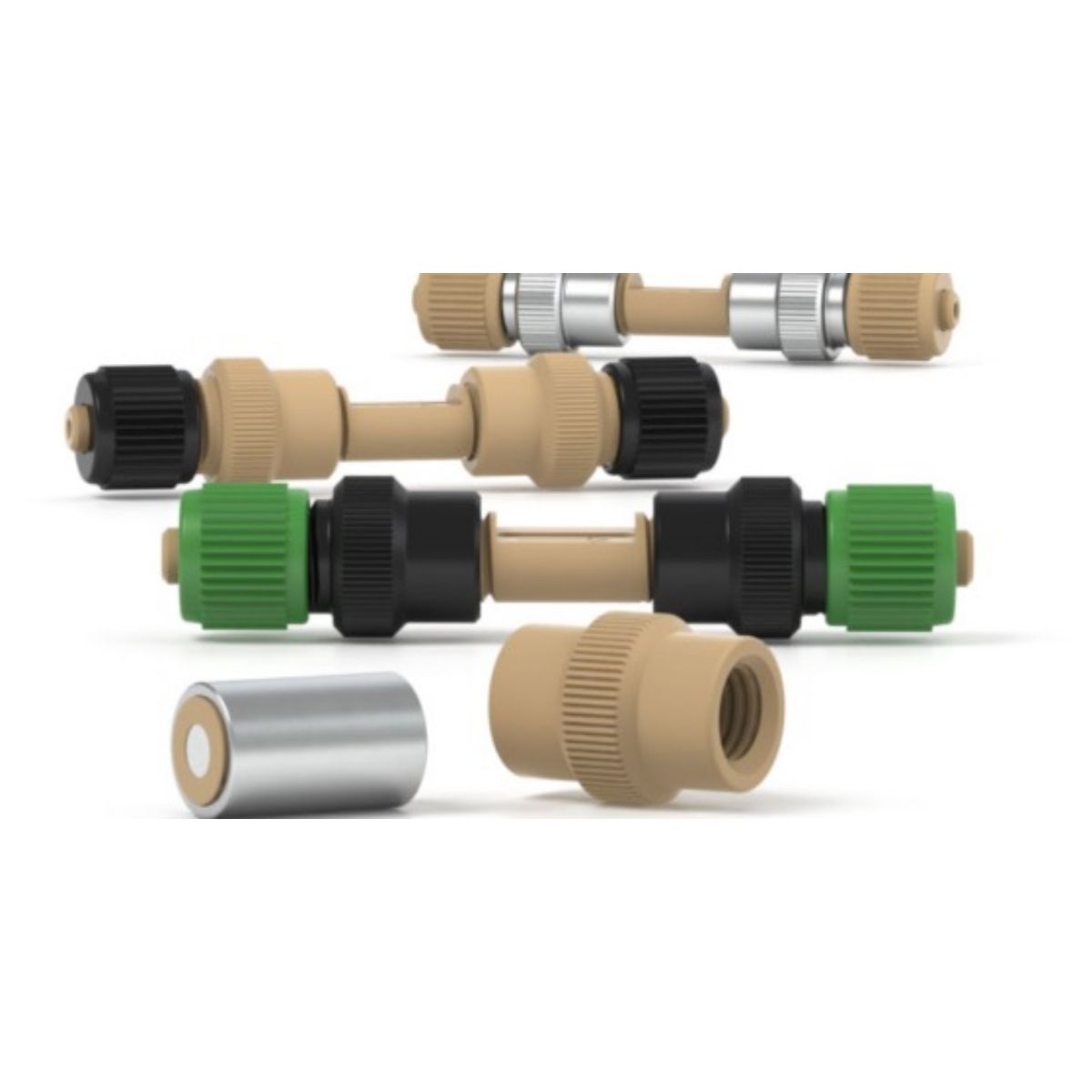

Our Sample Trap Columns are optimized for protein and peptide separation/purification. We offer these columns in conductive and nonconductive, packed and unpacked versions. They are ideal for separating and concentrating and/or purifying biological samples for mass spectrometer. The heart of the Sample Trap is a fused silica capillary column. Available phases for our capillary columns include a Reversed-Phase, High Carbon Load C18 5µm/300Å Spherical Silica material and a SCX (Strong Cation Exchange) 5µm/85Å material.
Available Models

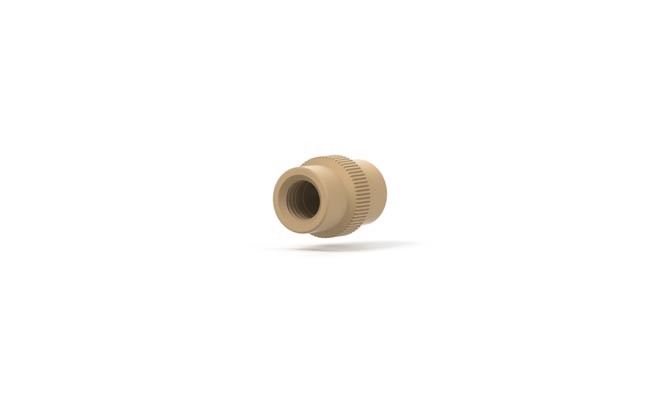

This PEEK Sample Trap Column Coupler is specifically created to connect two or more Capillary Sample Trap Columns in sequence. Our PEEK material offers excellent chemical resistance. Our Sample Trap Columns are ideal for separating and concentrating and/or purifying biological samples for mass spectrometer analysis.

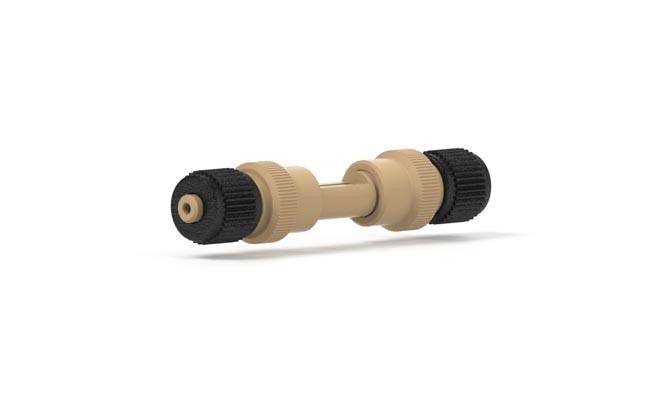

Our Capillary Sample Trap Column Assembly is designed specifically for separating and purifying biological samples for mass spectrometer analysis. It is made of PEEK material and titanium. It includes (1) 2-pk C-1250 C18 columns, (1) M-126 NanoFilter Capsule with a titanium frit, (2) P-416BLK Female black PEEK Frit, (2)F-152 MicroFerrule and (1) M-124NF no frit capsule union.
Our Capillary Sample Trap Columns are ideal for separating and concentrating and/or purifying biological samples for mass spectrometer analysis. It is made of PEEK material and the frit is made of stainless steel. This assembly comes equipped with a NanoFilter Capsule and a Titanium Frit.
