Idex – Fluidic Tubing Kits – NanoTight™ Kits

Our NanoTight kits allow you to easily connect capillary tubing to standard 1/16 inches ports. Our NanoTight Kits are carefully manufactured using Dupont® FEP fluoropolymer – a highly inert, melt-processed polymer that serves as an excellent alternative to PTFE. Our kit is designed to increase flexibility and convenience at a lower per-piece price than if the components were purchased separately.

Inquiry Now

Overview

Features

Specifications

Available Models

Our NanoTight Kits are carefully manufactured using Dupont® FEP fluoropolymer – a highly inert, melt-processed polymer that serves as an excellent alternative to PTFE. A wide assortment of sleeves is available, ensuring the availability of a NanoTight sleeve for most applications. Our kit is designed to increase flexibility and convenience at a lower per-piece price than if the components were purchased separately.

List of available NanoTight™ Kits

Technical Specifications

Tubing sleeve inner diameterTubing sleeve outer diameterFor tubing outer diameterPressure Rating MaxThru holeMaterialColour
0.007 inches1/16 inches125 µm to 165 µm4000 psi/276 bar180 µmNot applicableNot applicable
0.0085 inches1/16 inches160 µm to 200 µm 4000 psi/276 bar215 µmNot applicableNot applicable
0.011 inches1/16 inches225 µm to 265 µm4000 psi/276 barNot applicableGenuine Teflon™ FEP ResinBlue
0.013 inches1/16 inches275 µm to 315 µm4000 psi/276 barNot applicableGenuine Teflon™ FEP ResinOrange
0.015 inches1/16 inches340 µm to 380 µm4000 psi/276 barNot applicableGenuine Teflon™ FEP ResinGreen
0.018 inches1/16 inches400 µm to 440 µm4000 psi/276 barNot applicableGenuine Teflon™ FEP ResinBlack
0.021 inches1/16 inches480 µm to 520 µm4000 psi/276 barNot applicableGenuine Teflon™ FEP ResinNatural
0.027 inches1/16 inches630 µm to 670 µm4000 psi/276 barNot applicableGenuine Teflon™ FEP ResinYellow
0.033 inches1/16 inches785 µm to 825 µm4000 psi/276 barNot applicableGenuine Teflon™ FEP ResinGreen
0.042 inches1/16 inches1 mm4000 psi/276 barNot applicableNot applicableNot applicable

Technical Specifications

Pressure Rating Max (psi)4000
Pressure Rating Max (bar)276
Tubing Sleeve outer diameter (inches)1/16

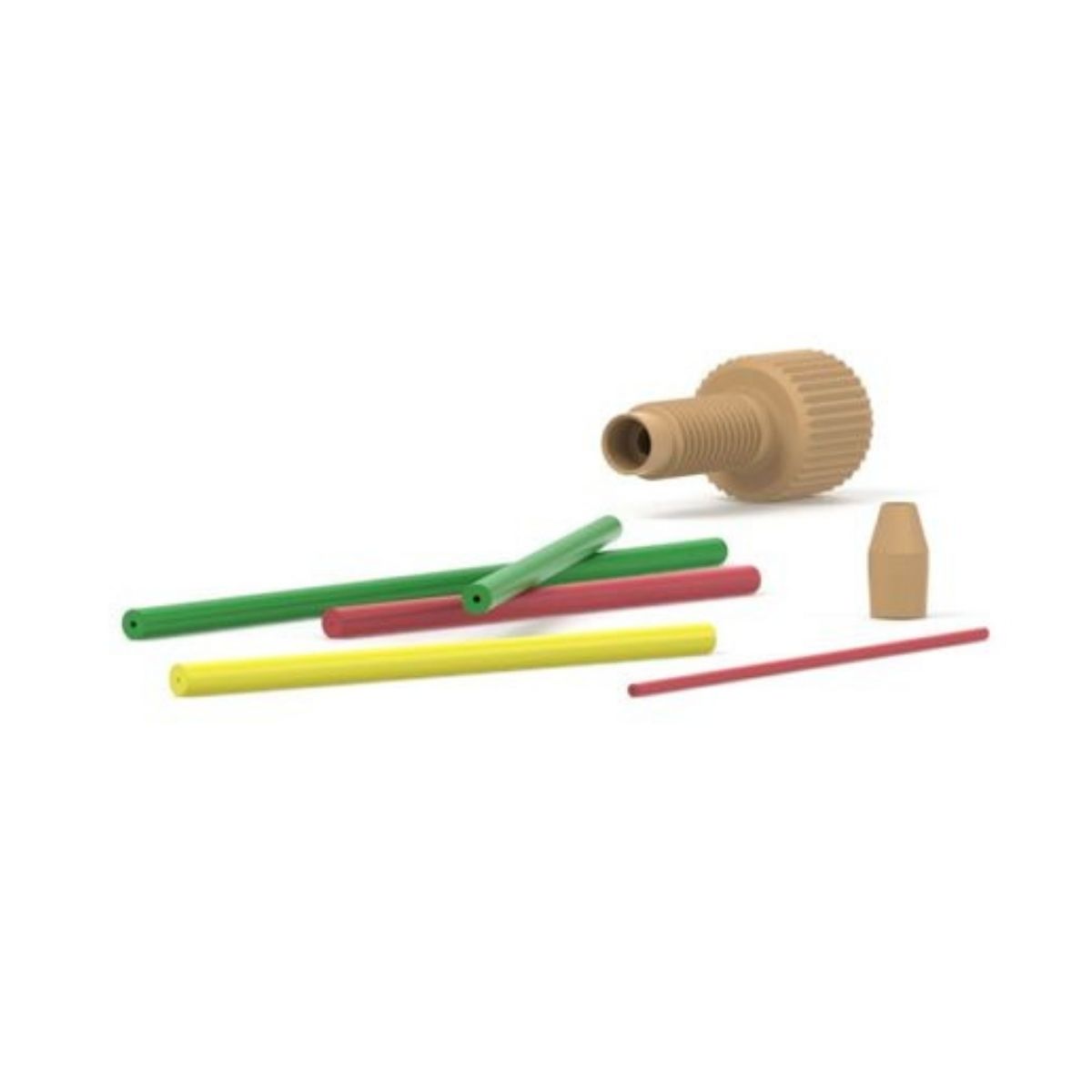

Our NanoTight Fittings/Tubing Sleeves Kits are designed to increase flexibility and convenience. Our Kit contains several sleeving options to connect tubing that ranges from 70um to 825 um outer diameter. The kit also contains fittings and unions to complete the capillary tubing connections. It includes:

  • 6 units – F-239 Fep Sleeve 0.0085 inches inner diameter X 1/16 inches outer diameter, Natural
  • 6 units – F-240 Fep Sleeve 0.011 inches inner diameter X 1/16 inches outer diameter, Blue
  • 6 units – F-241 Fep Sleeve 0.013 inches inner diameter X 1/16 inches outer diameter, Orange
  • 6 units – F-242 Fep Sleeve 0.015 inches inner diameter X 1/16 inches outer diameter, Green
  • 6 units – F-243 Fep Sleeve 0.018 inches inner diameter X 1/16 inches outer diameter, Black
  • 6 units – F-244 Fep Sleeve 0.021 inches inner diameter X 1/16 inches outer diameter, Natural
  • 6 units – F-245 Fep Sleeve 0.024 inches inner diameter X 1/16 inches outer diameter, Red
  • 6 units – F-246 Fep Sleeve 0.027 inches inner diameter X 1/16 inches outer diameter, Yellow
  • 6 units – F-247 Fep Sleeve 0.033 inches inner diameter X 1/16 inches outer diameter, Green
  • 5 units – F-330N Fitting, Long, With F-142N Ferrule, Peek & trade; 10-32, Natural
  • 5 units – F-331N Fitting, 10-32, Short, With F-142N Ferrule, Natural
  • 5 units – F-335N Fitting, Nanotight™, Hex, With F-142N Ferrule, Peek™, 10-32, Natural
  • 5 units – F-336N Fitting, Nanotight™, Headless, With F-142N Fer, 10-32, Natural
  • 2 units – P-779-01 Union Body, 10-32, Peek™, 0.005 inches In Thru Hole, Peek™

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
