Idex – Ultra High Pressure Multiport Connectors – VHP Tees & Crosses

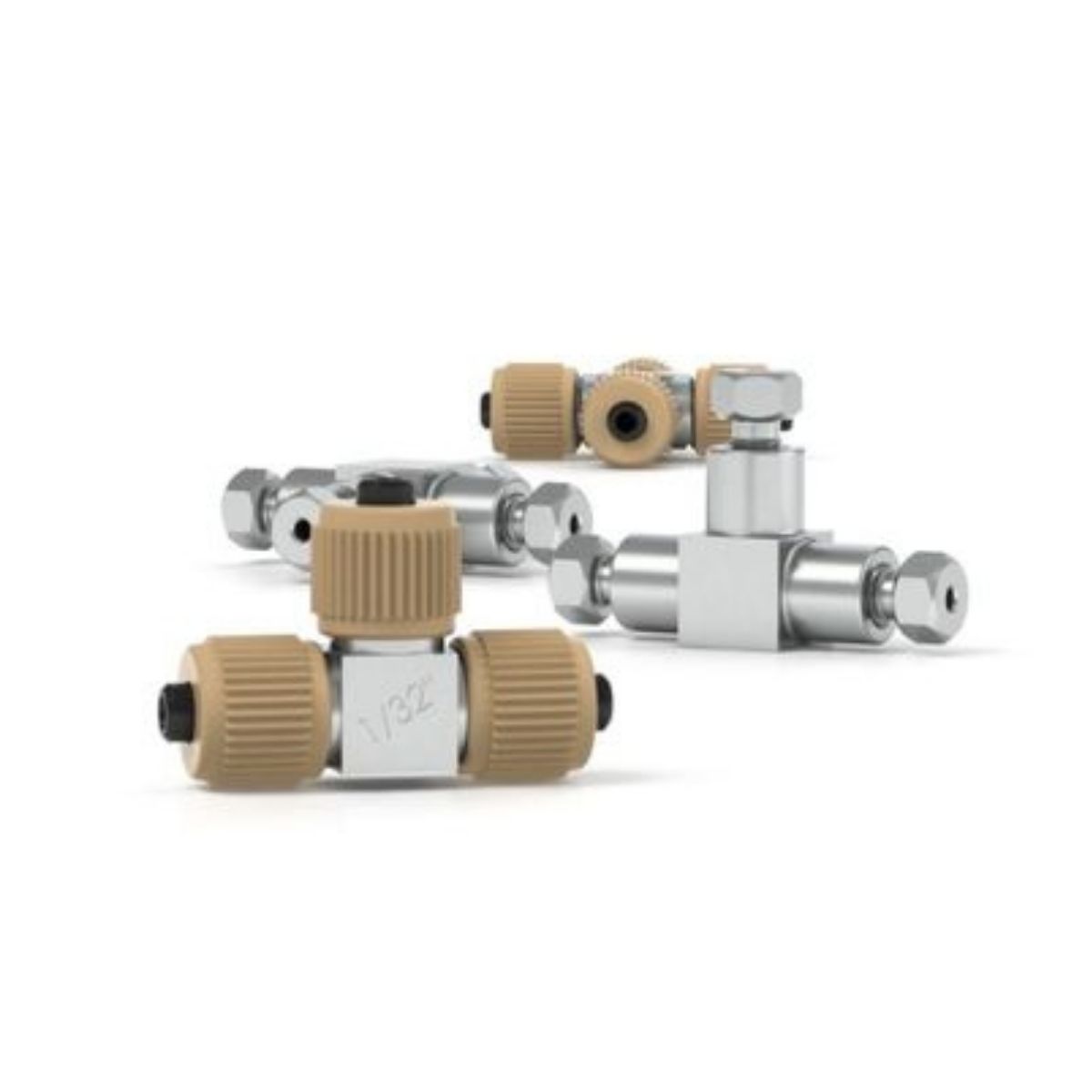

Our VHP Stainless Steel Tees and Crosses are precision machined from durable stainless steel. It is mechanically designed for bringing together three or four pieces of tubing. Our VHP Tees & Crosses have an extremely high pressure rating of 30,000 psi (2070 bar).

Inquiry Now

Overview

Features

Specifications

Available Models

Our VHP MicroTee/MicroCross Assembly’s unique design creates a direct connection for tubing; no sleeves required. It is manufactured from durable stainless steel and features a small thru-hole and very low internal volume. Stainless steel delivers excellent chemical compatibility and conductivity making it an ideal choice when electrical applications are in use.


List of available VHP MicroTees and MicroCrosses

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
5/16-24 Coned (MicroTee)84 nL0.010 inches/0.25 mm15000 psi/1034 bar1/32 inches
5/16-24 Coned (MicroCross)101 nL0.010 inches/0.25 mm15000 psi/1034 bar1/32 inches
5/16-24 Coned (MicroTee)84 nL0.010 inches/0.25 mm15000 psi/1034 bar360 µm
5/16-24 Coned (MicroCross)101 nL0.010 inches/0.25 mm15000 psi/1034 bar360 µm

Our VHP Stainless Steel Tee/Cross are precision machined from durable stainless steel. These are mechanically designed for bringing together three pieces or four pieces of tubing respectively. Both have a very high pressure rating of 30,000 psi (2070 bar).


List of available VHP Tees and Crosses

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
10-32 Coned (Tee)0.57 nL0.020 inches/0.50 mm30000 psi/2070 bar1/16 inches
10-32 Coned (Cross)0.72 nL0.020 inches/0.50 mm30000 psi/2070 bar1/16 inches

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
