Idex – Ultra High Pressure Multiport Connectors – VHP Stainless Steel ZDV Unions

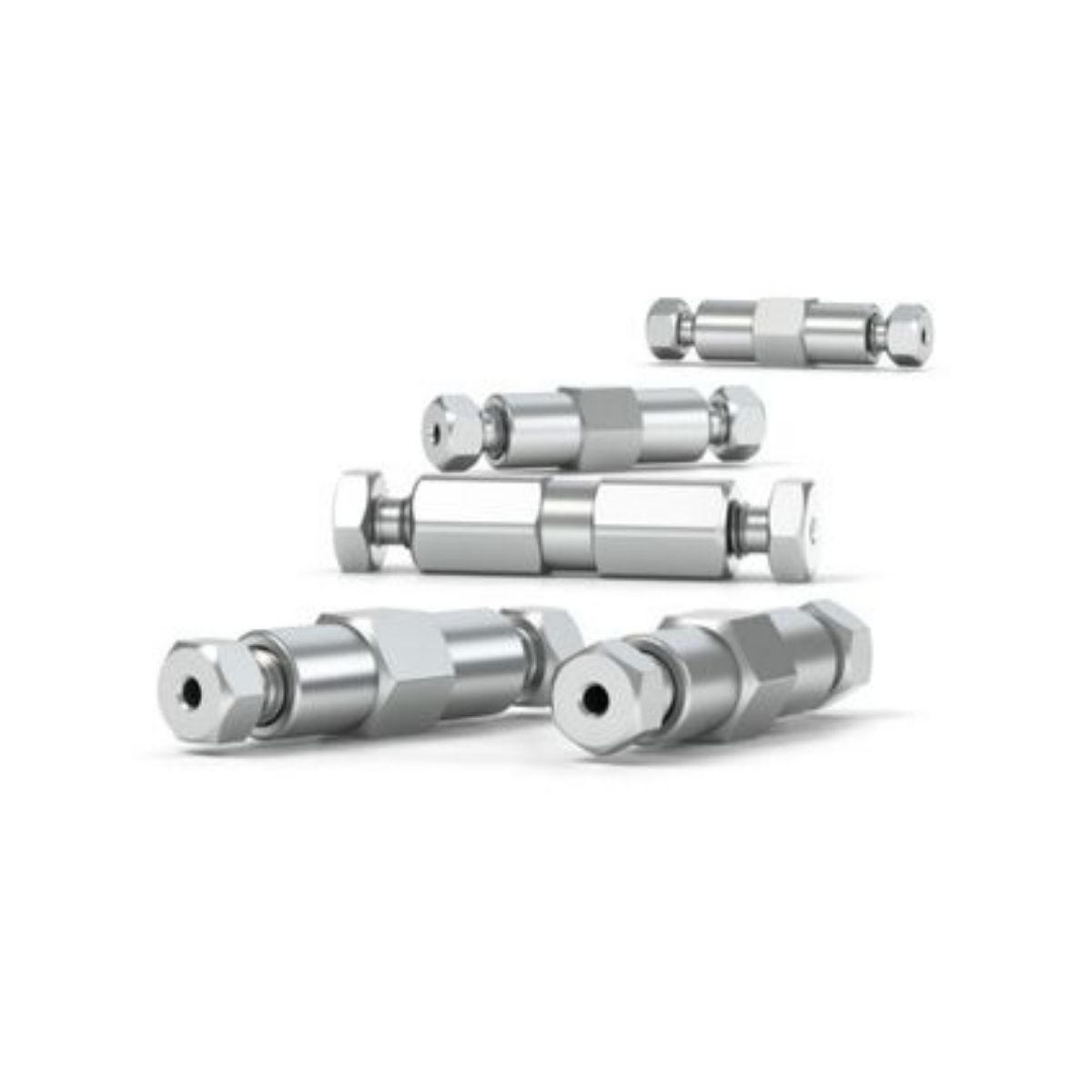

These very high pressure, zero-dead-volume (ZDV) unions are precision machined from 316 stainless steel, carefully passivated, then thoroughly rinsed. Each comes complete with stainless steel nuts and ferrules. It is supplied with fittings for 1/16 inches outer diameter or 1/8 inches outer diameter tubing. Union assemblies have a pressure rating of 20,000 psi (1,380 bar) or higher.

Inquiry Now

Overview

Features

Specifications

Available Models

VHP Stainless Steel Unions are precision machined from 316 stainless steel. Our mechanically strong and reliable union offers zero dead volume (ZDV) allowing tubing to be joined without interrupting the fluidic path.


List of available VHP Stainless Steel ZDV Union Assemblies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
10-32 Coned –0.020 inches/0.50 mm20000 psi/1380 bar1/16 inches
10-32 Coned –0.007 inches/0.17 mm20000 psi/1380 bar1/16 inches
10-32 Coned20 nL0.010 inches/0.25 mm20000 psi/1380 bar1/16 inches
10-32 Coned0.84 nL0.050 inches/1.25 mm20000 psi/1380 bar1/16 inches
10-32 Coned13 nL0.007 inches/0.17 mm –1/16 inches
10-32 ConedTrue ZDV – near 0 nL0.062 inches/1.55 mm20000 psi/1380 bar1/16 inches

List of available VHP Stainless Steel ZDV Union Bodies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
10-32 ConedTrue ZDV – near 0 nL0.062 inches/1.55 mm –1/16 inches
10-32 Coned –0.010 inches/0.25 mm30000 psi/2070 bar1/16 inches

Our ZDV Union Assembly is SSI, Waters or Valco Compatible and precision machined from 316 stainless steel. Our mechanically strong and reliable union offers zero dead volume (ZDV) allowing tubing to butt up against each other without interrupting the fluidic path.


List of available specifically designed VHP Stainless Steel ZDV Union Assemblies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
10-32 Coned (Valco Compatible)0.15 µL0.020 inches/0.50 mm20000 psi/1380 bar1/16 inches
1/4-28 Coned (SSI Compatible) –0.020 inches/0.50 mm20000 psi/1380 bar1/16 inches
10-32 Coned (Waters Compatible) –0.020 inches/0.50 mm20000 psi/1380 bar1/16 inches
