Idex – Filters – Mini MicroFilters

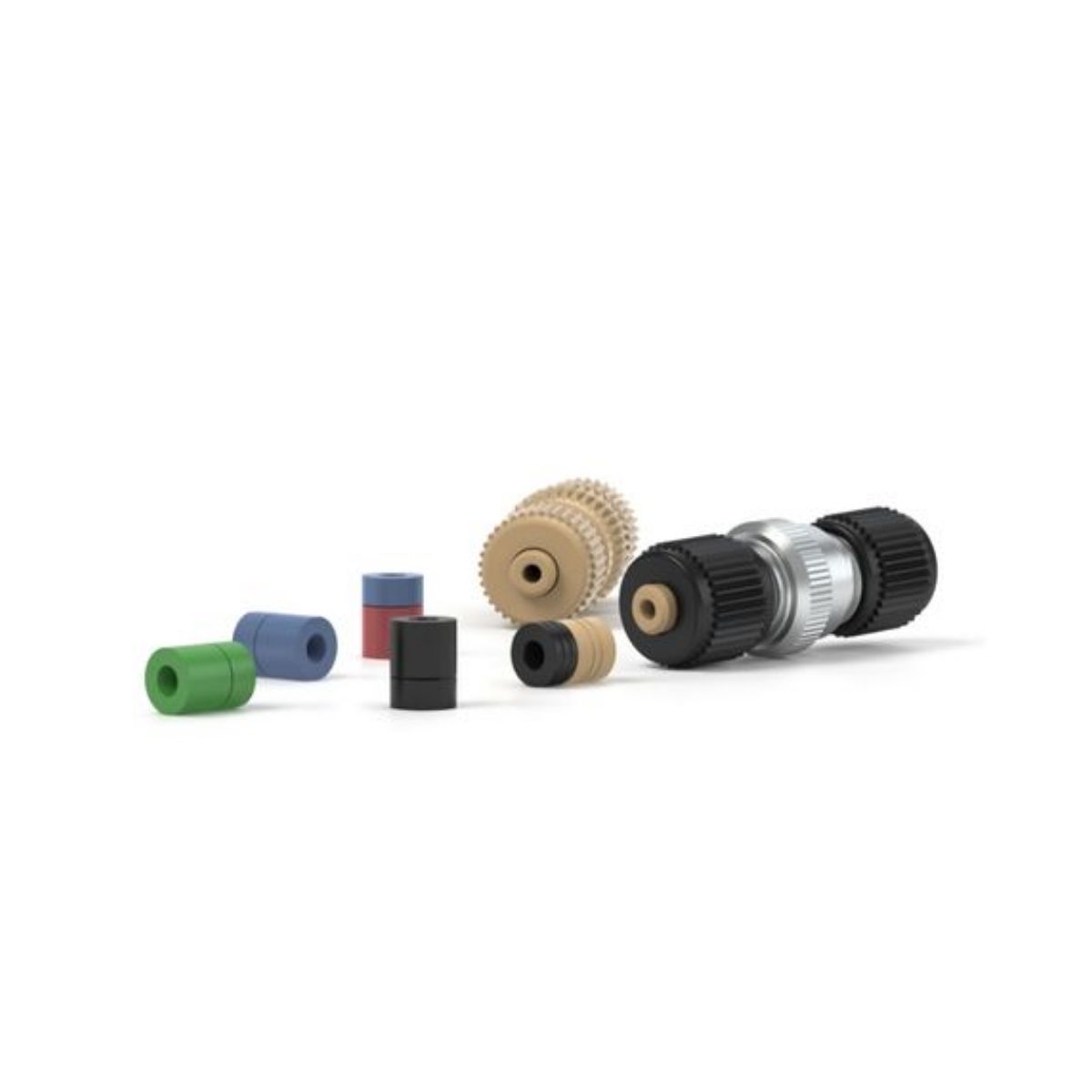

Mini MicroFilters deliver effective filtration with internal volumes low enough to ensure reliable chromatographic results — even at nanoliter per minute flow rates! Internal volumes of these encapsulated filters are as low as 85 nL with the micro-screen and 10 nL to 22 nL with the frit disc option. A MiniMicro Filter provides cost effective insurance against column damage.

Inquiry Now

Overview

Features

Specifications

Available Models

Our Conductive NanoFilter Capsule is specifically designed for use with the M-534 Conductive Mini MicroFilter Assembly. It encapsulated filters boasts internal volumes as low as 85nL with the micro-screen and 10nL with the frit disc option. It includes a stainless steel Frit.


List of available Conductive NanoFilter Capsules

Technical Specifications

PorositySwept VolumeMaterialFrit Material
1 µm10 nLPEEK/Stainless SteelStainless Steel
1 µm (Without Filter)10 nL (Without Filter)PEEK/Stainless Steel (Without Filter)Stainless Steel (Without Filter)

Our PEEK Mini Microfilter capsule encapsulated filters boasts internal volumes as low as 85nL with the micro-screen and 10nL with the frit disc option.  It is specifically designed for use with the M-530 and M-531 Mini MicroFilter Assemblies. It is used with a stainless steel screen Frit. Our Mini MicroFilter Assembly offers internal volumes low enough to deliver accurate chromatographic results.


List of available Mini MicroFilter Capsules with Porosity of 1 µm

Technical Specifications

Swept VolumeMaterialFrit MaterialColourOption for Pack
85 nLPEEK/Stainless SteelStainless Steel ScreenGreen/GreenPack of 2 units
85 nLPEEK/Stainless SteelStainless Steel ScreenBlue/BluePack of 2 unites

List of available Mini MicroFilter Assemblies with Porosity of 1 µm

Technical Specifications

Swept VolumePressure Rating MaxFrit MaterialFor Tubing outer diameterOption for multiple Capsules
85 nL4000 psi/276 barStainless Steel Screen360 µm –
97 nL4000 psi/276 barStainless Steel Screen790 µm5 Capsules
22 nL4000 psi/276 barStainless Steel790 µm –
22 nL4000 psi/276 barTitanium790 µm –

Our PEEK Mini Microfilter capsule encapsulated filters boasts internal volumes as low as 85nL with the micro-screen and 10nL with the frit disc option. It is specifically designed for use with the M-532 Mini MicroFilter Assemblies. Our Mini MicroFilter Assembly offers internal volumes low enough to deliver accurate chromatographic results.


List of available Mini MicroFilter Capsules with Porosity of 2 µm

Technical Specifications

PorositySwept VolumeMaterialFrit MaterialColourOption for Pack
2 µm85 nLPEEK/Stainless SteelStainless Steel ScreenRed/GreenPack of 2 units
 – (Without Filter) – (Without Filter)PEEK/Stainless Steel – (Without Filter) – (Without Filter)Pack of 2 units

List of available Mini MicroFilter Assemblies with Porosity of 2 µm

Technical Specifications

Swept VolumePressure Rating MaxFrit MaterialFor Tubing outer diameterOption for multiple Capsules
97 nL5000 psi/345 barStainless Steel Screen1/32 inches5 Capsules

Our NanoFilter Capsule encapsulated filters boasts internal volumes as low as 85nL with the micro-screen and 10nL with the frit disc option. It is specifically designed for use with the M-537 and M-538 Mini MicroFilter Assemblies.


List of available NanoFilter Capsules

Technical Specifications

PorositySwept VolumeMaterialFrit MaterialColourOption for Pack
1 µm10 nLPEEK/Stainless SteelStainless Steel Red/BluePack of 2 units
1 µm10 nLPEEK/Stainless SteelStainless SteelBlack/TanPack of 2 units
1 µm10 nLPEEK/TitaniumTitaniumRed/BluePack of 2 units
1 µm10 nLPEEK/TitaniumTitaniumBlack/TanPack of 2 units

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
