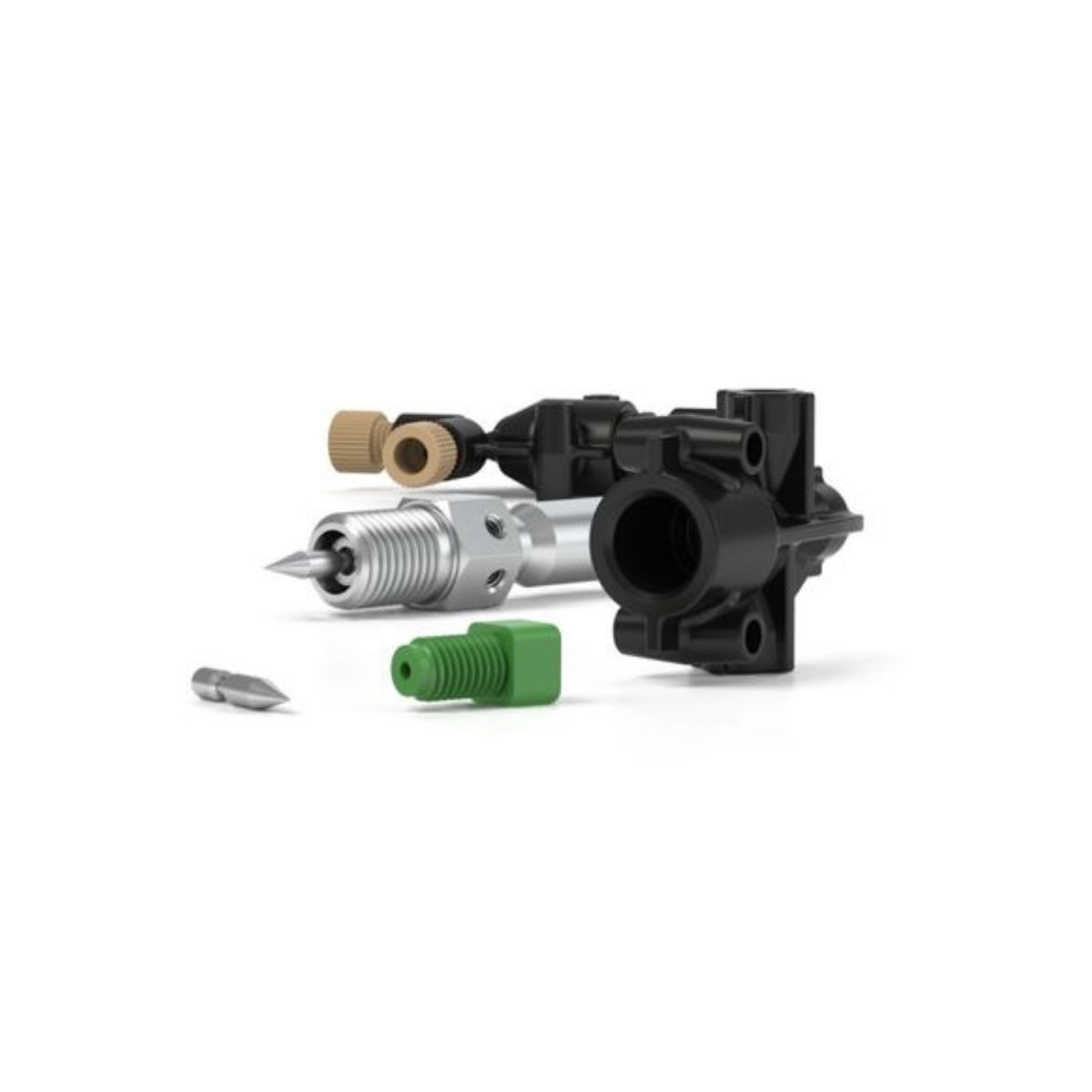

Idex – Flow Regulating Valves – Micro-Splitter Valves

Our Micro-Splitter Valves are ideal for LC-MS and other multi-detector systems, fraction collectors and post column reactions. The ideal placement of these valves is on the effluent side of the detector flow cell, at a maximum pressure of 800 psi (55 bar). Or select our high pressure graduated option that can withstand a maximum pressure of 4000psi (276 bar). Choose between 1/4-28 and 10-32 threaded versions. A 10-32 / 6-32 valve is also available to accommodate applications involving capillary tubing.

Inquiry Now

Overview

Features

Specifications

Available Models

Technical Specifications

MaterialPEEK
Pressure Rating Max (psi)800
Pressure Rating Max (bar)55
  • Micro-Splitter Valve Assembly, Thread Port Configuration Flat Bottom 1/4-28, Max Suggested Flow Rate 2, Internal Volume open/closed 2.1µL/4.1µL
  • Micro-Splitter Valve Assembly, Thread Port Configuration Flat Bottom 10-32, Internal Volume open/closed 1.2µL/2.8µL
  • Micro-Split Valve Assembly, Thread Port Configuration Flat Bottom 10-32 to 6-32, Internal Volume open/closed 1.2µL/2.4µL

Our Standard Micro-Splitter Valve has 10-32/10-32 to 6-32 Flat-Bottom thread capacity. This IDEX Health and Science Micro-Splitter Valve is designed to precisely split and control a low flow stream off a single incoming supply. It is made for interfacing LC-MS systems.

Technical Specifications

Pressure Rating Max (psi)4000
Pressure Rating Max (bar)276
  • High Pressure Micro-Splitter Valve, Thread Port Configuration Flat Bottom 10-32 Flat-Bottom, Material PEEK/Stainless Steel, Internal Volume open/closed 1.2µL/2.8µL
  • High Pressure Micro-Splitter Valve, Thread Port Configuration Flat Bottom 10-32 Flat-Bottom, Material PEEK/Titanium, Internal Volume open/closed 1.2µL/2.8µL

This High Pressure Micro-Splitter Valve is specifically designed to precisely split and control a low flow stream off a single incoming supply. It is made for interfacing LC-MS systems and has a 10-32 Flat-Bottom thread capacity. Our assembly includes a stainless steel needle and (3) F-120 Fingertight Fittings. It also comes in a Stainless Steel or Titanium model.

Technical Specifications

Internal Volume open/closed µL1.2/2.8
Thread Port Configuration Coned10-32
MaterialPEEK/Stainless Steel
Pressure Rating Max (psi)4000
Pressure Rating Max (bar)276
  • Graduated Micro-Splitter Valve, Thread Port Configuration Coned 10-32

Our Graduated Micro-Splitter Valve provides the all the benefits the Micro-Splitter Valve plus the ability to set the split flow to repeatable settings. It is for a 10-32 coned threaded configuration and comes with a stainless steel needle.

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
