Idex – Low Pressure Multiport Connectors – Tees & Crosses

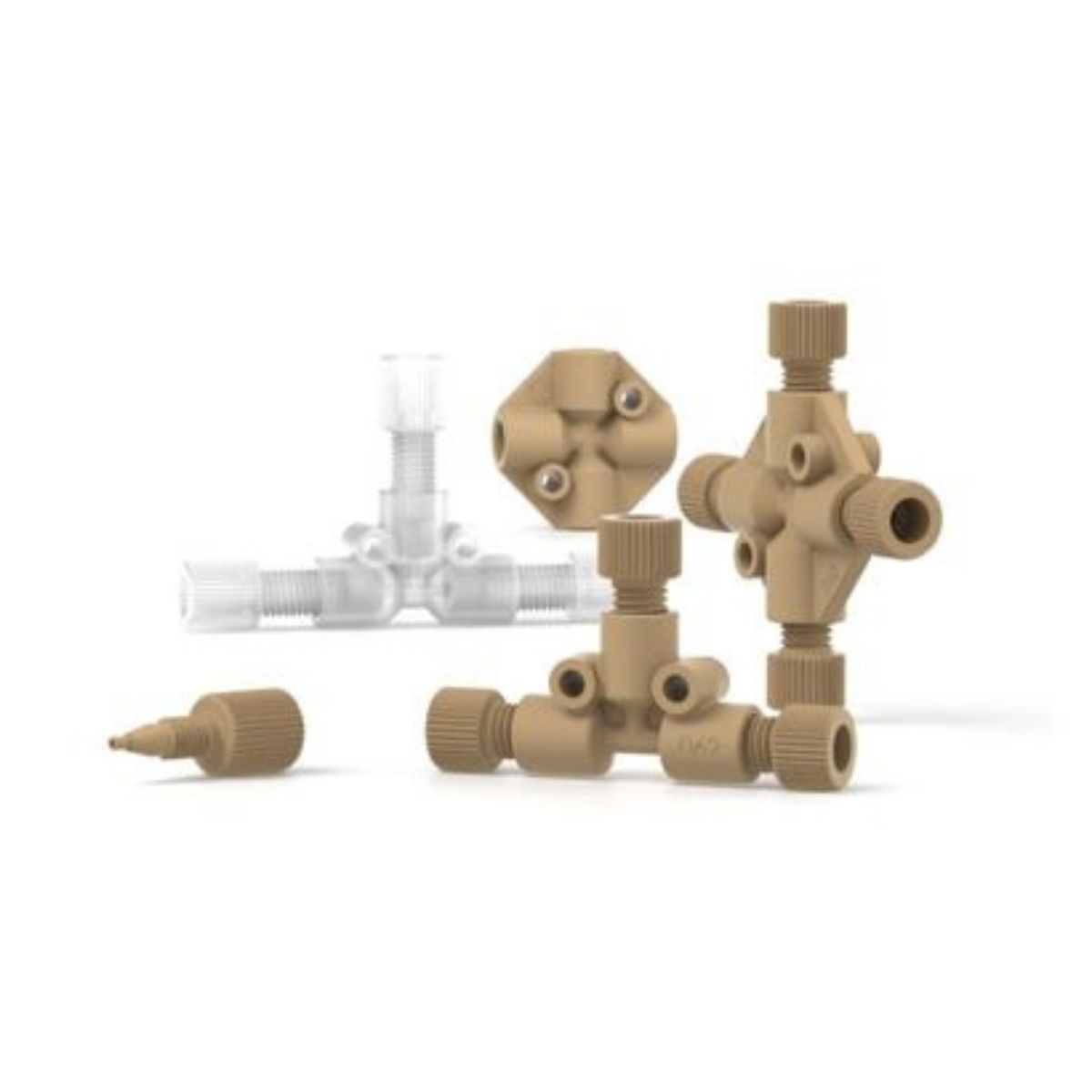

Low Pressure Tees and Crosses offer a unique design for joining multiple tubing and fittings together. They are available in two inert polymers and can handle pressures to 500 psi (34 bar) or 1,000 psi (69 bar), depending upon the configuration of the products. Our Tees & Crosses are designed with handy mounting holes. All ETFE Tees and Crosses ship complete with 1/4-28 PFA Flangeless nuts and ETFE ferrules, while their PEEK polymer counterparts ship with 1/4-28 PEEK nuts and ETFE ferrules.

Inquiry Now

Overview

Features

Specifications

Available Models

Our PEEK Low Pressure Cross Assembly/Body is strong and durable handling a pressure rating 500 psi (34 bar) or 1000 psi (69 bar). It has excellent chemical resistance to commonly used solvents. Our assembly comes equipped with convenient mounting holes.


List of available PEEK Cross Assemblies and Bodies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
1/4-28 Flat-Bottom3.8 µL0.020 inches/0.50 mm1000 psi/69 bar1/16 inches
1/4-28 Flat-Bottom22.8 µL0.050 inches/1.30 mm500 psi/34 bar1/8 inches

Our PEEK Low Pressure Tee Assembly/Body is strong and durable handling a pressure rating 500 psi (34 bar) or 1000 psi (69 bar). It has excellent chemical resistance to commonly used solvents. Our assembly comes equipped with convenient mounting holes.


List of available PEEK Tee Assemblies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
1/4-28 Flat-Bottom2.9 µL0.020 inches/0.50 mm1000 psi/69 bar1/16 inches
1/4-28 Flat-Bottom17.5 µL0.050 inches/1.25 mm500 psi/34 bar1/8 inches
1/4-28 Flat-Bottom11.4 µL0.040 inches/1 mm1000 psi/69 bar1/16 inches
1/4-28 Flat-Bottom17.5 µL0.062 inches/1.60 mm500 psi/34 bar1/8 inches

List of available PEEK Tee Bodies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
1/4-28 Flat-Bottom17.5 µL0.050 inches/1.25 mm500 psi/34 bar1/8 inches

Our Tefzel (ETFE) Low Pressure Cross Assembly/Body can precisely handle a pressure rating 500 psi (34 bar) or 1000 psi (69 bar). It is designed with convenient mounting holes.


List of available Tefzel™ (ETFE) Cross Assemblies and Bodies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
1/4-28 Flat-Bottom3.8 µL0.020 inches/0.50 mm1000 psi/69 bar1/16 inches
1/4-28 Flat-Bottom22.8 µL0.050 inches/1.30 mm500 psi/34 bar1/8 inches

Our Tefzel (ETFE) Low Pressure Tee Assembly/Body can precisely handle a pressure rating 500 psi (34 bar) or 1000 psi (69 bar). It is designed with convenient mounting holes.


List of available Tefzel™ (ETFE) Tee Assemblies and Bodies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
1/4-28 Flat-Bottom2.9 µL0.020 inches/0.50 mm1000 psi/69 bar1/16 inches
1/4-28 Flat-Bottom17.5 µL0.050 inches/1.30 mm500 psi/34 bar1/8 inches
