Idex – Low Pressure Multiport Connectors – Manifolds

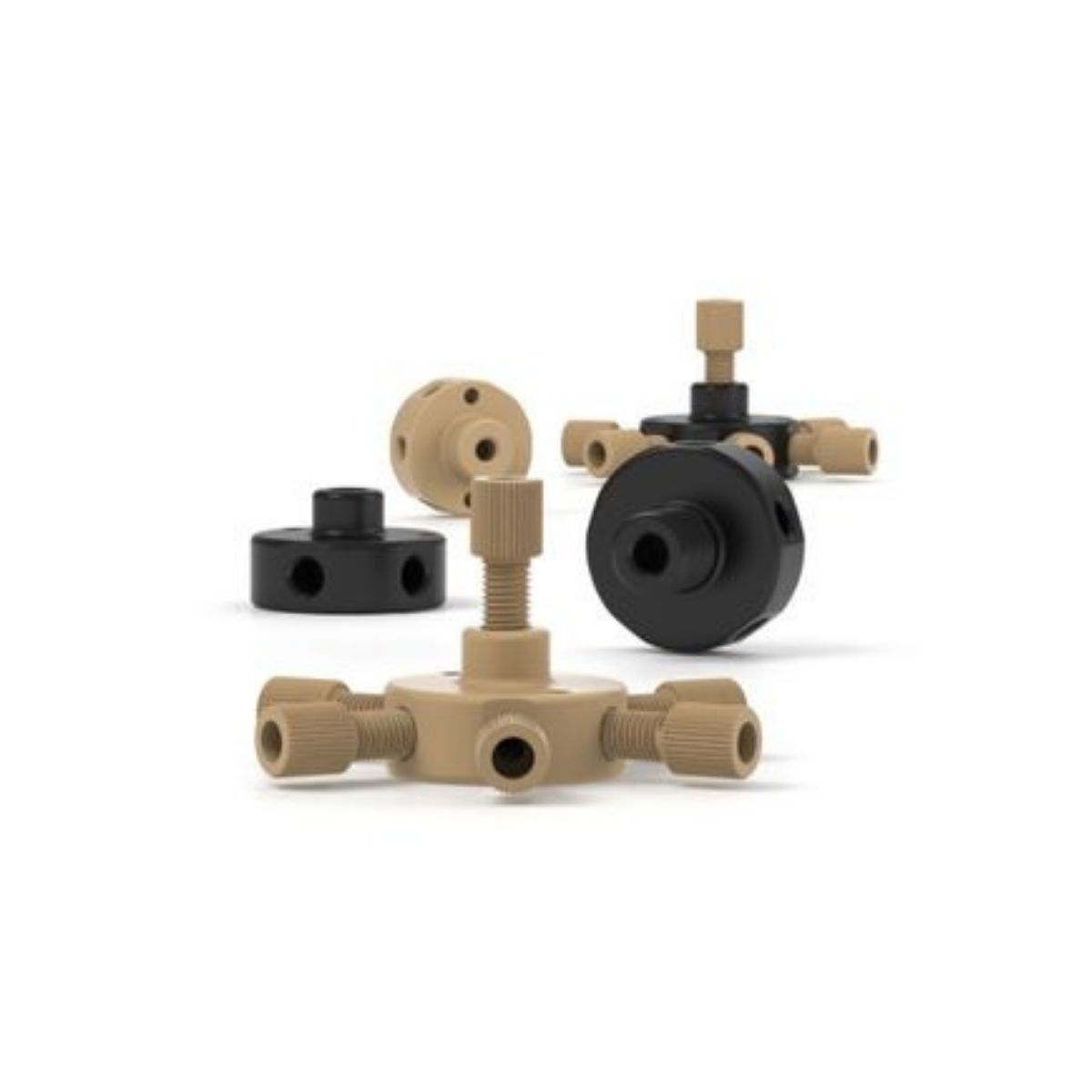

Choose a 5, 7, or 9 Port Manifold to combine several streams into one, or split one fluid stream into several. Each PEEK manifold comes complete with 1/4-28 Super Flangeless™ Fittings for either 1/16 inches or 1/8 inches outer diameter tubing, with pressure ratings of 2,000 psi (138 bar) and 500 psi (34 bar), respectively. Our PEEK Manifolds are ideal for use in multiport mixing chambers, for gas sparging splitting unions and for sample injection onto multi-well plates or a multiple direction flow path unions.

Inquiry Now

Overview

Features

Specifications

Available Models

Our PEEK Manifold Assembly can be easily applied for a multi-Ports mixing chamber, combining several fluid streams into one or one stream split to several outlets. It can also be used as a gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance.


List of available 5-Port Manifold Assemblies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
1/4-28 Flat-Bottom22.3 µL0.040 inches/1 mm1000 psi/69 bar1/16 inches
1/4-28 Flat-Bottom53.8 µL0.062 inches/1.60 mm500 psi/34 bar1/8 inches

Our PEEK Manifold Assembly can be easily applied for a multi-Ports mixing chamber, combining several fluid streams into one or one stream split to several outlets. It can also be used as a gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance.


List of available 6-Port Manifold Assemblies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
1/4-28 Flat-Bottom26.8 µL0.040 inches/1 mm1000 psi/69 bar1/16 inches
1/4-28 Flat-Bottom62.3 µL0.062 inches/1.60 mm500 psi/34 bar1/8 inches

Our PEEK Manifold Assembly can be easily applied for a multi-Ports mixing chamber, combining several fluid streams into one or one stream split to several outlets. It can also be used as a gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance.


List of available 7-Port Manifold Assemblies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
10-32 Coned2.2 µL0.020 inches/0.50 mm5000 psi/345 bar1/16 inches
1/4-28 Flat-Bottom42 µL0.040 inches/1 mm1000 psi/69 bar1/16 inches
1/4-28 Flat-Bottom83 µL0.062 inches/1.60 mm500 psi/34 bar1/8 inches

Our PEEK Manifold Assembly can be easily applied for a multi-Ports mixing chamber, combining several fluid streams into one or one stream split to several outlets. It can also be used as a gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance.


List of available 9-Port Manifold Assemblies

Thread Port ConfigurationSwept VolumeThru holePressure Rating MaxFor tubing outer diameter
1/4-28 Flat-Bottom139 µL0.040 inches/1 mm1000 psi/69 bar1/16 inches
1/4-28 Flat-Bottom160 µL0.062 inches/1.60 mm500 psi/34 bar1/8 inches

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
