Idex – Low Pressure Multiport Connectors – Elbows

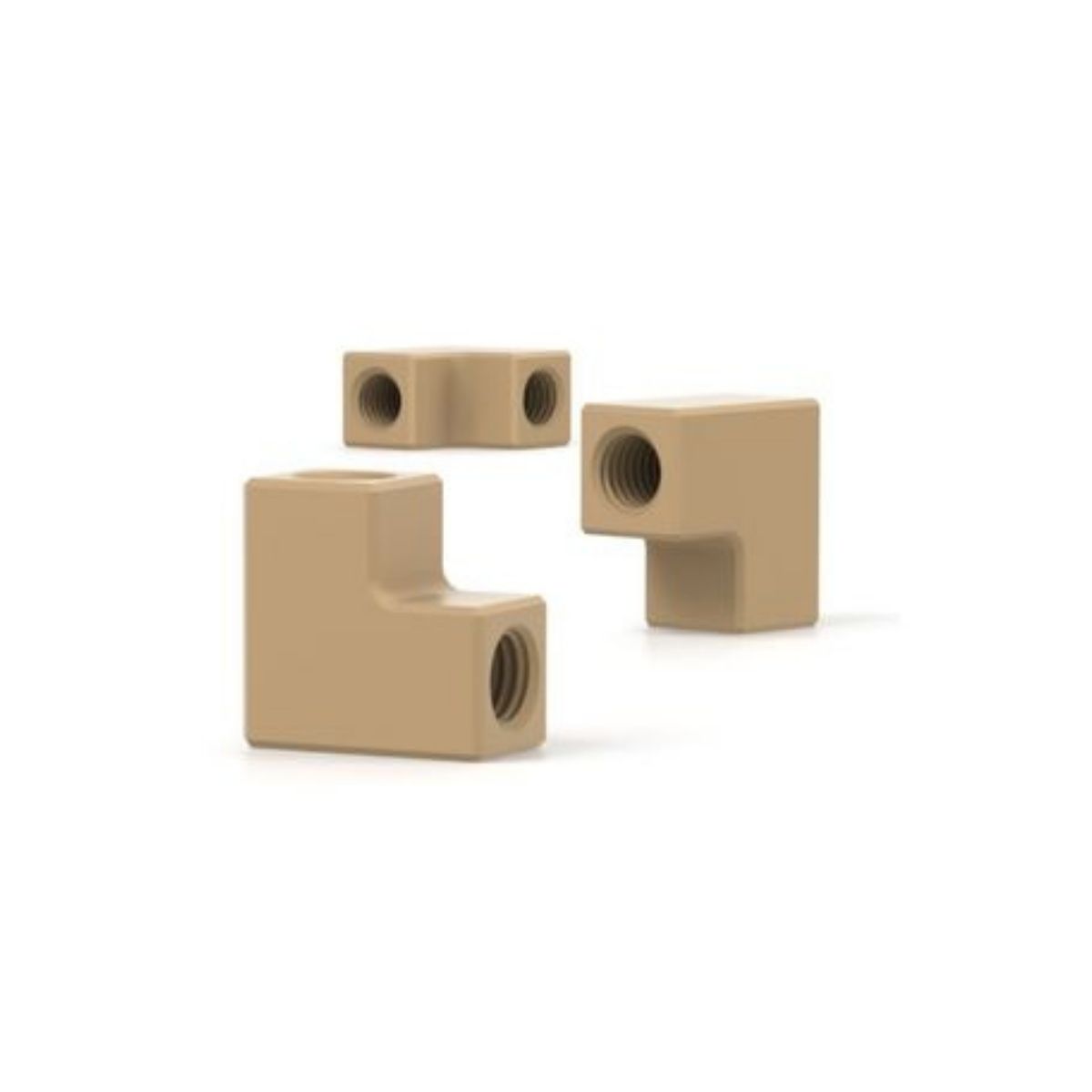

Our versatile Elbow Connectors are designed to easily navigate tight corners. One Elbow is designed for use with 1/16 inches outer diameter tubing and has a 0.020 inches (0.50 mm) thru-hole. Use 1/8 inches outer diameter tubing with the other Elbow, which has a 0.062 inches (1.6 mm) thru-hole. Complete with 1/4-28 PEEK nuts and ETFE ferrules and are pressure rated to 1,000 psi (69 bar) these connectors deliver excellent chemical resistance and are ideal for low pressure applications.

Inquiry Now

Overview

Features

Specifications

Key Features

List of available Elbow Assemblies

Our PEEK Elbow Connector is designed to easily navigate tight corners. It is manufactured from biocompatible PEEK giving is excellent chemical resistance to virtually all commonly used solvents.

List of available Elbow Assemblies

Thread Port ConfigurationSwept VolumeThru holeFor tubing outer diameterColour
1/4-28 Flat-Bottom1.4 nL0.020 inches/0.50 mm1/16 inchesNatural
1/4-28 Flat-Bottom13.6 nL0.062 inches/1.60 mm1/8 inchesNatural

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
