Idex – Flow Regulating Valves – Injection Valves

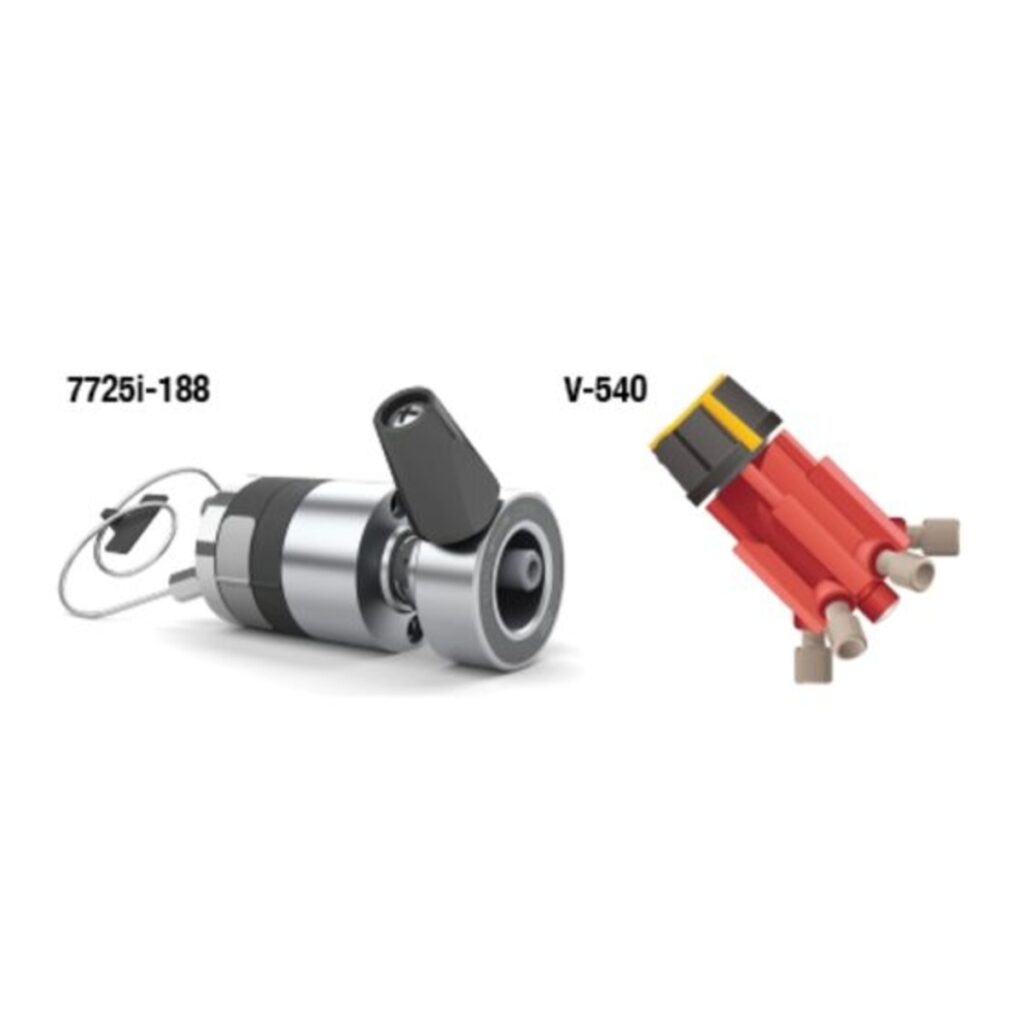

Many Injection Valves are biocompatible inert and deliver a low swept volume. Their unique design allows for minimal dispersion. Our injection valves come conveniently in both manual standard and bulkhead-mount versions. It comes with an easy to use Injection Port Adapter too.

Inquiry Now

Overview

Features

Specifications

Injection Valves feature easy, external sample loop customization. Simply clean-cut a piece of tubing that represents the volume of sample you wish to inject, taking into account the port-to-port volume of the valve.

Key Features

  • Biocompatible and inert materials for reliable performance.
  • Customizable external sample loop for accurate volume injection.
  • Available in manual and bulkhead-mount versions for flexible integration.

Available Models

Technical Specifications

Thread Port Configuration Coned1/4-28
Pressure Rating Max (psi)1000
Pressure Rating Max (bar)69
Positions2
Ports6
  • Injection Valve, 2 Postion-6-Port, 0.040, For Tubing outer diameter 1/16 inches, Colour Black
  • Injection Valve, 2 Postion-6-Port, 0.063, For Tubing outer diameter 1/8 inches, Colour Red

Our Injection Valve Assembly is ideal if you’re a if your application involves low frequency of use and demands operator control or involves injection of smaller sample volumes. Both have 2 positions, 6 ports and 1/4-28 port configuration. The black 0.040 is for 1/16 inches outer diameter tubing and the red 0.063 is for 1/8 inches outer diameter tubing. Both include (6) XP-235 Fittings.

Technical Specifications

Thread Port Configuration Coned1/4-28
Pressure Rating Max (psi)1000
Pressure Rating Max (bar)69
Positions2
Ports6
  • Injection Valve Bulkhead, 2 Postion-6-Port, 0.040, For Tubing outer diameter 1/16 inches, Colour Black
  • Injection Valve Bulkhead, 2 Postion-6-Port, 0.063, For Tubing outer diameter 1/8 inches, Colour Red

Our Bulkhead Version Injection Valve Assembly is ideal if your application involves low frequency of use and demands operator control or involves injection of smaller sample volumes. Both have 2 positions, 6 ports and 1/4-28 port configuration. The black 0.040 is for 1/16 inches outer diameter tubing and the red 0.063 is for 1/8 inches outer diameter tubing. Both include (6) XP-235 Fittings.

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
