Idex – High Pressure Multiport Connectors – MicroTight® Unions

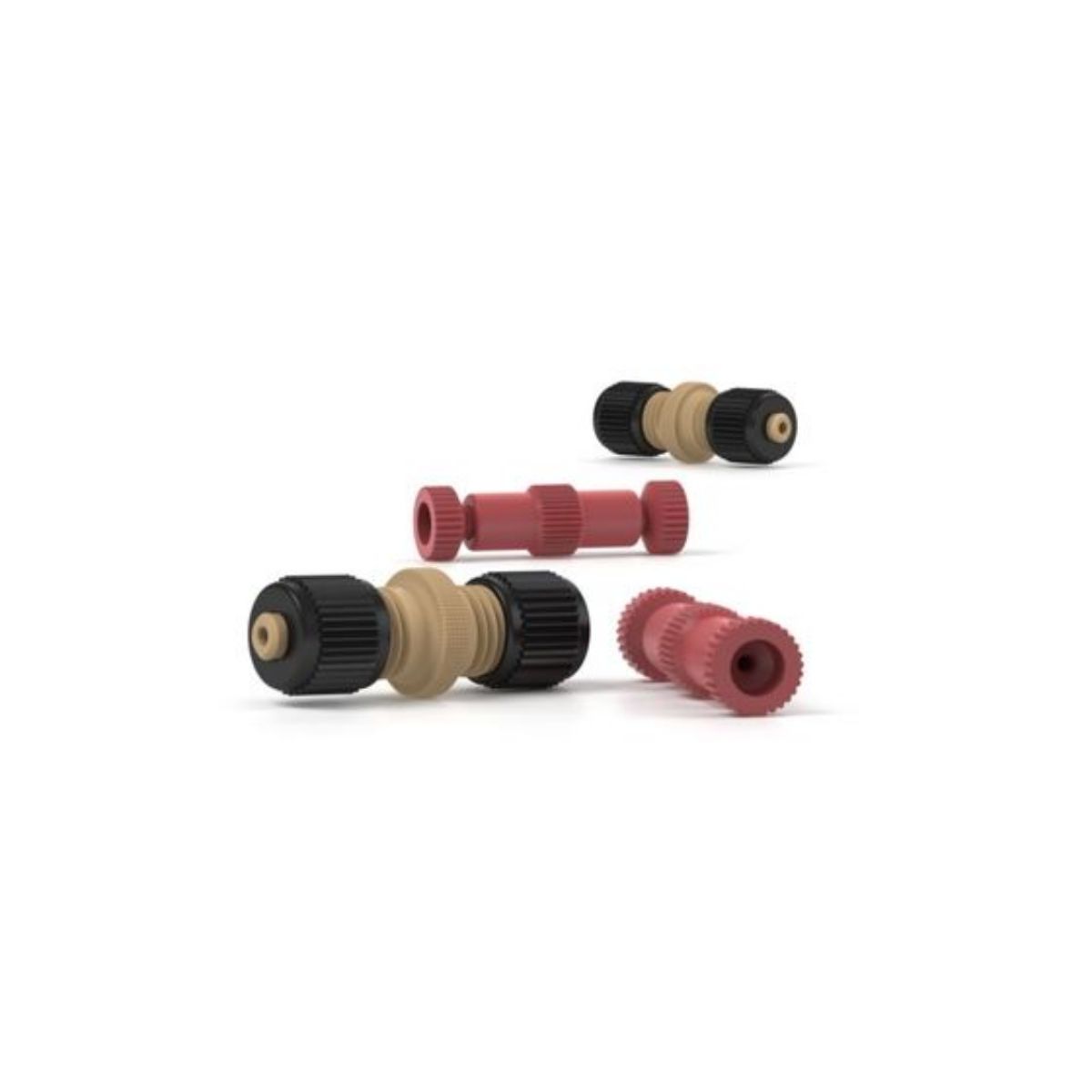

Our MicroTight Unions are designed to easily connect capillary tubing together. They offer True ZDV (Zero Dead Volume) allowing two pieces of tubing to connect directly to each other using the included gauges and plugs to ensure proper alignment. This allows for an uninterrupted fluidic pathway.

Inquiry Now

Overview

Features

Specifications

Key Features

List of available MicroTight® Unions

Our MicroTight Union Assembly is used specifically to connect capillary tubing together. It features a 0.015 inches thru-hole which adds only a small amount of additional flow-path volume to help ensure proper chromatographic results.

List of available MicroTight® Unions

Thread Port ConfigurationSwept VolumeThru holeFor tubing outer diameterPressure Rating Max
6-32 Coned – –0.025 inches4000 psi/276 bar
6-32 Coned – –1/32 inches5000 psi/345 bar
5/16-24 Coned5 nL0.006 inches/0.15 mm360 µm5000 psi/345 bar

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
