Idex – High Pressure Multiport Connectors – Bulkhead Unions

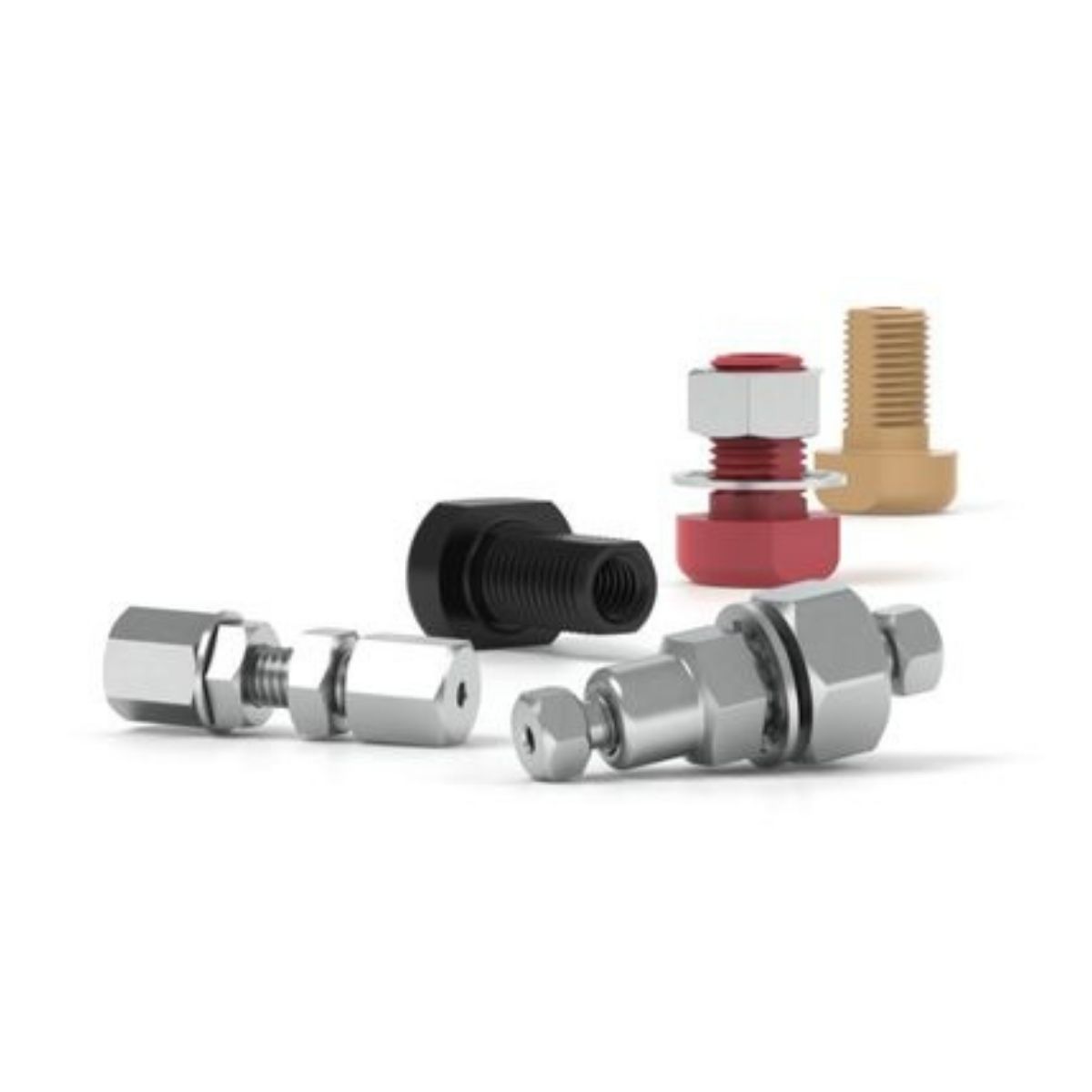

Bulkhead Unions are optimally designed to directly thread through your equipment housing to connect internal tubing to the outside. Each union has unique 3/8-24 external threads and comes complete with a stainless steel nut and lock washer to hold it in place. It requires a 3/8 inches hole to mount. The recommended torque limit for these unions is 15 in.- lbs (1.7 N·m).

Inquiry Now

Overview

Features

Specifications

Key Features

List of available Bulkhead Unions

Our Bulkhead Union Assembly are precision machined from 316 stainless steel. Our mechanically strong and reliable union offers true zero dead volume (ZDV) allowing tubing to be joined without interrupting the fluidic path. The bulkhead union is manufactured for easily plumbing tubing through equipment housing.

List of available Bulkhead Union Assemblies

Thread Port ConfigurationThru holeFor tubing outer diameter
10-32 Coned0.020 inches/0.50 mm1/16 inches
10-32 Flat-Bottom0.040 inches/1 mm1/16 inches

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
