Idex – Frits – Frit-in-a-Ferrule™

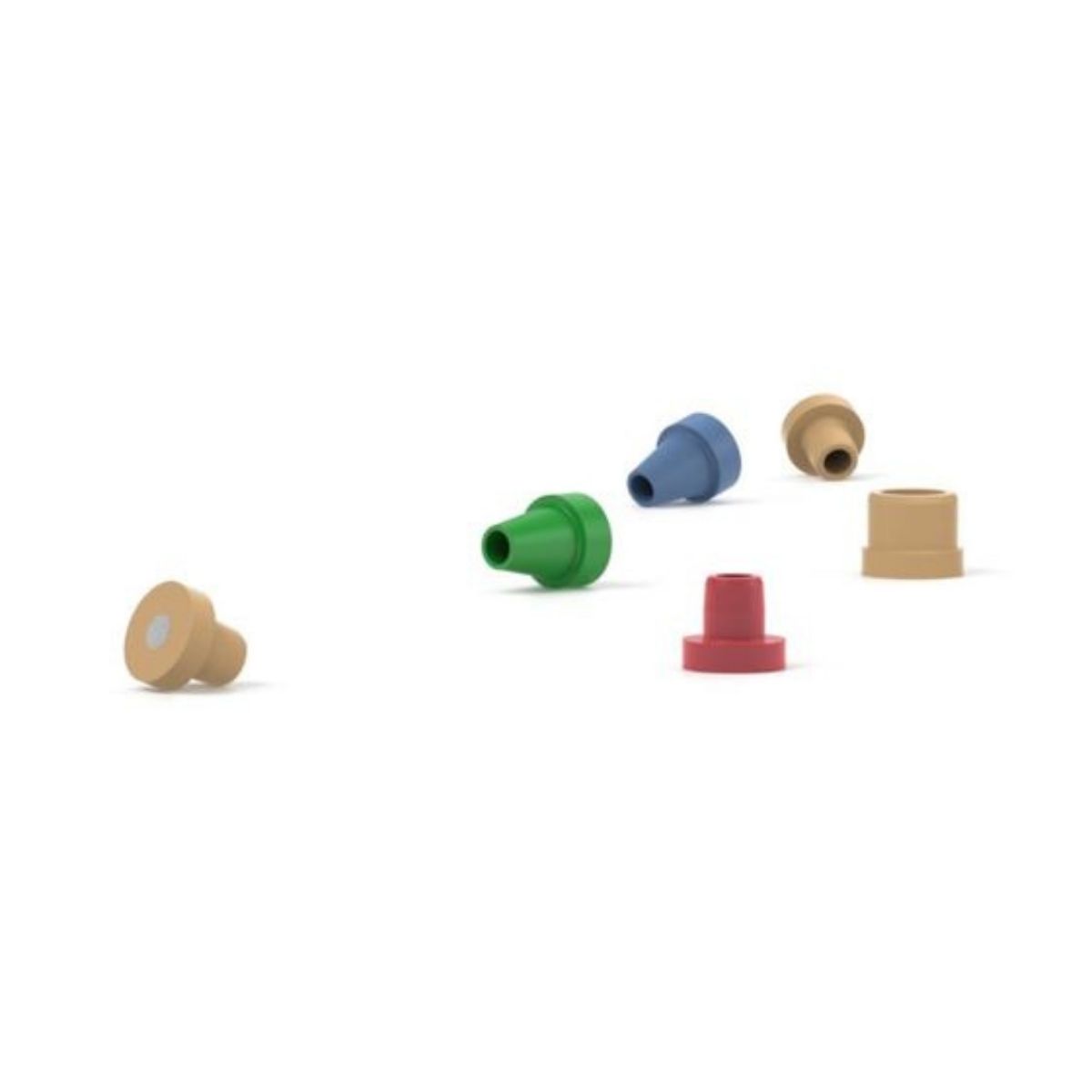

Our unique Frit-In-A-Ferrule product line is designed to seal and filter simultaneously by incorporating a frit into the body of a flat-bottom ferrule. This simple design allows you to eliminate traditional inline filters and reduce the number of additional connections in your system. Conveniently available in both Flangeless and Super Flangeless™ versions, now you can filter at any point in your system where 1/16 inches or 1/8 inches outer diameter tubing is used in a flat-bottom 1/4-28, M6 or 5/16-24 connection.

Inquiry Now

Overview

Features

Specifications

Available Models

Our Frit-in-a-Ferrule offers a unique design that seals and filters simultaneously by incorporating a frit into the body of a flat-bottom ferrule. It has a porosity of 0.5 µm.


List of available Frit-in-a-Ferrule™ with Porosity of 0.5 µm

Type of FerruleMaterial of FritDisc DiameterDisc ThicknessSwept Volume Pressure Rating MaxFor Tubing outer diameterColour
PCTFE Flangeless FerruleStainless Steel0.062 inches0.062 inches0.061 µL2000 psi/138 bar1/16 inchesBlue
PEEK Super Flangeless FerrulePEEK0.046 inches0.030 inches0.16 µL2500 psi/172 bar1/16 inchesBlack
PEEK/Stainless Steel Super Flangeless FerruleStainless Steel0.062 inches0.062 inches0.61 µL2500 psi/172 bar1/16 inchesBlack
PCTFE/Stainless Flangeless FerruleStainless Steel0.094 inches0.062 inches1.41 µL500 psi/34 bar1/8 inchesBlue

Our Frit-in-a-Ferrule offers a unique design that seals and filters simultaneously by incorporating a frit into the body of a flat-bottom ferrule. It has a porosity of 2 µm.


List of available Frit-in-a-Ferrule™ with Porosity of 2 µm

Type of FerruleMaterial of FritDisc DiameterDisc ThicknessSwept Volume Pressure Rating MaxFor Tubing outer diameterColour
PEEK Super Flangeless FerruleStainless Steel0.062 inches0.062 inches0.074 µL2500 psi/172 bar1/16 inchesNatural
Stainless Steel Flangeless FerrulePCTFE0.062 inches0.062 inches0.074 µL2000 psi/138 bar1/16 inchesGreen
PEEK Super Flangeless FerrulePEEK0.046 inches0.030 inches0.2 µL2500 psi/172 bar1/16 inchesNatural
PEEK/Stainless Super Flangeless FerruleStainless Steel0.062 inches0.062 inches0.74 µL2500 psi/172 bar1/16 inchesNatural
PCTFE/Stainless Flangeless FerruleStainless Steel0.094 inches0.062 inches1.69 µL500 psi/34 bar1/8 inchesGreen
PEEK/Stainless Steel Flangeless FerrulePEEK0.062 inches0.062 inches1.15 µL2500 psi/172 bar1/8 inchesNatural

Our Frit-in-a-Ferrule offers a unique design that seals and filters simultaneously by incorporating a frit into the body of a flat-bottom ferrule. It has a porosity of 10 µm.


List of available Frit-in-a-Ferrule™ with Porosity of 10 µm

Type of FerruleMaterial of FritDisc DiameterDisc ThicknessSwept Volume Pressure Rating MaxFor Tubing outer diameterColour
Tefzel (ETFE) Super Flangeless FerruleStainless Steel0.062 inches0.062 inches0.9 µL2500 psi/172 bar1/16 inchesRed

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
