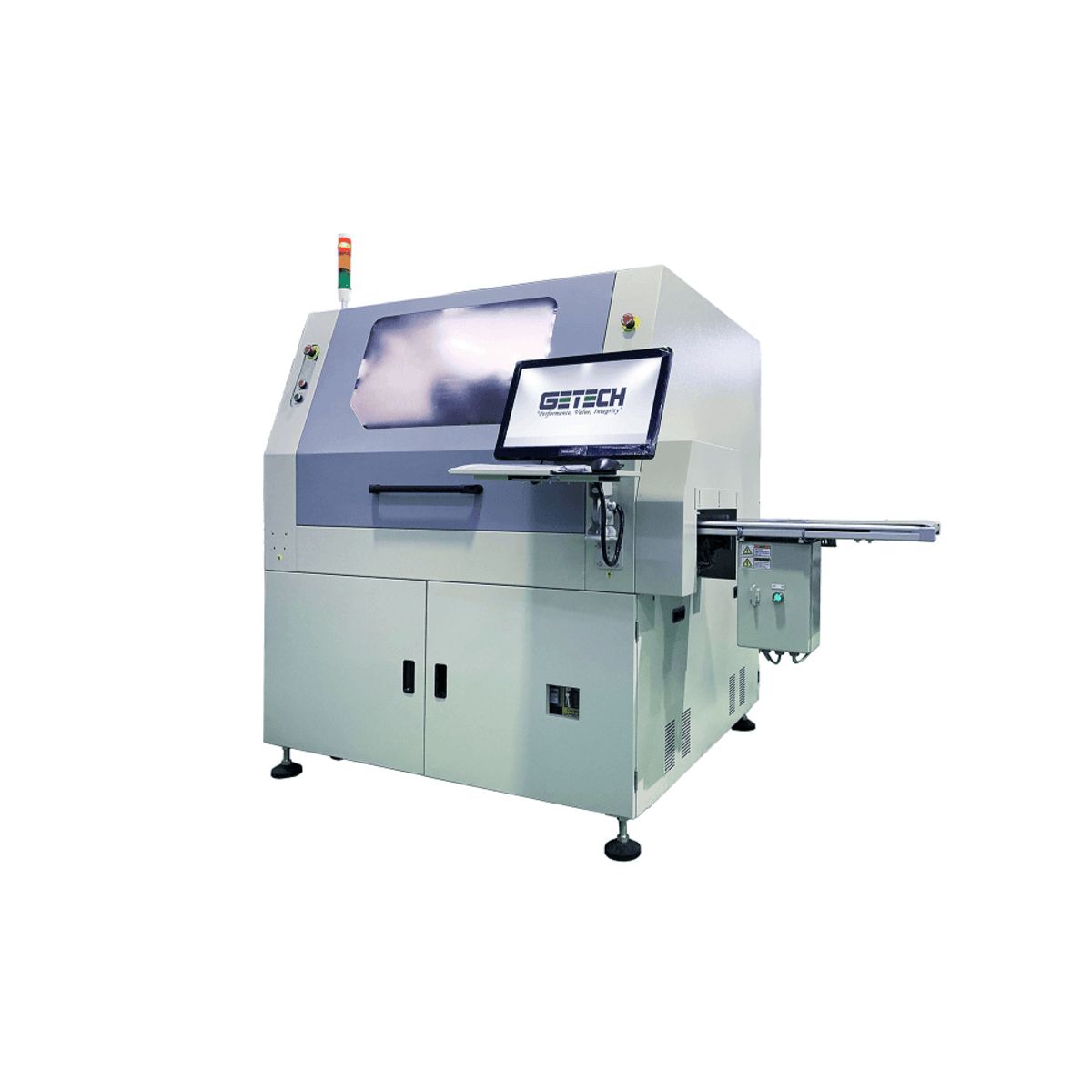

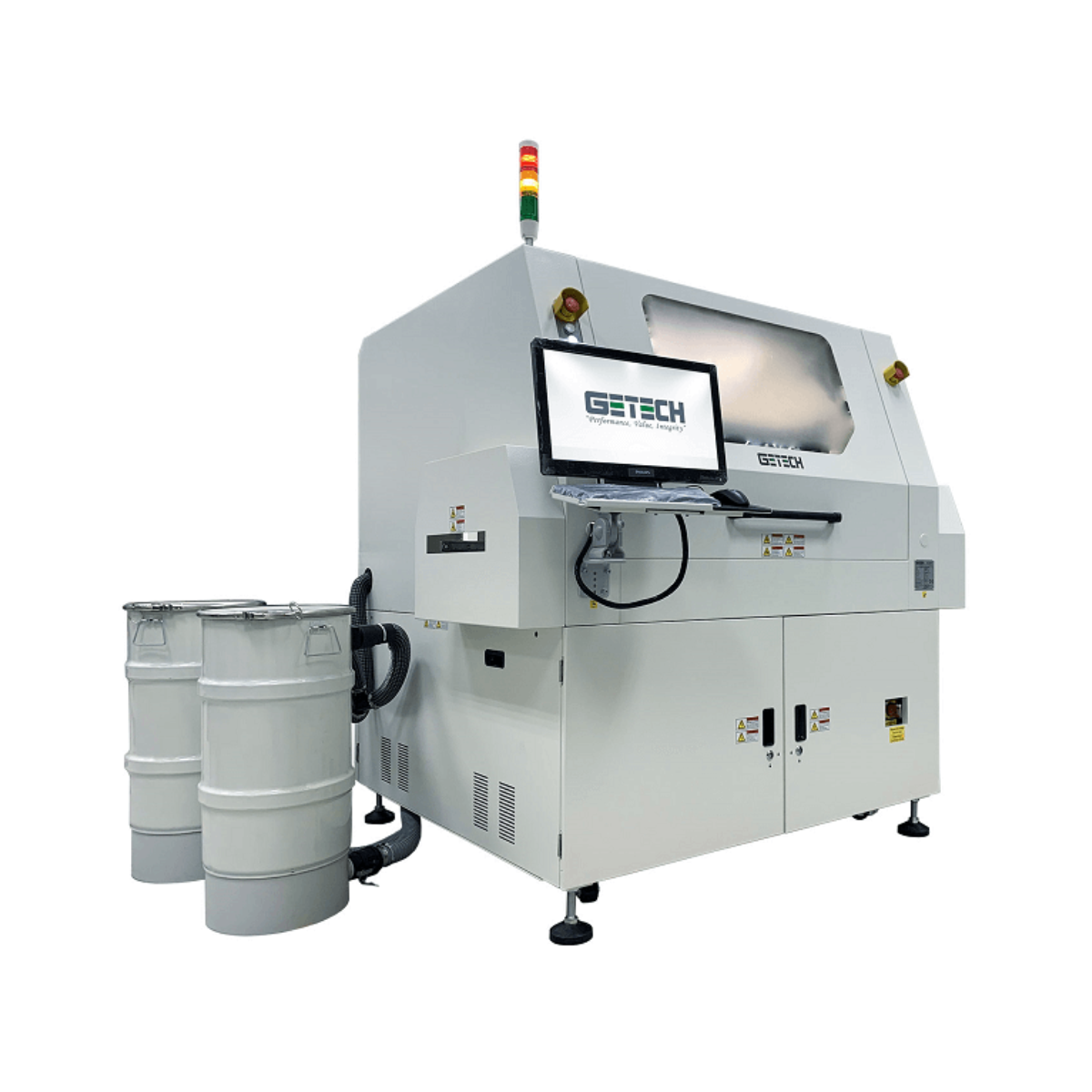

GETECH – Automatic Router – GAR1200
The GAR1200 is an in-line router machine specially designed to route (depanelize) large panels with PCB size up to 350mm x 310mm into individual units. It is a fast, space-saving, and accurate machine designed for high volume production with minimal operator participation. It has two worktables. While one of the worktables is in high-speed routing operation, the other worktable works with the robotic P&P module to unload boards and load the new PCB panel. This gives us 100% operational uptime without the issue of load/unload time. Using a high-resolution CCD camera and GAR user-friendly Windows-based software allows users to program the routing paths in minutes. There are also no limitations in the number of programs stored. GAR1200 uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance.
This gives us 100% operational uptime without the issue of load/unload time. Using a high-resolution CCD camera and GAR user-friendly Windows-based software allows users to program the routing paths in minutes. There are also no limitations in the number of programs stored.
GAR1200 uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance.
Technical Specifications
| Panel | |
| Size | 350mm x 310mm |
| Thickness | 0.5mm – 8.0mm |
| Component height | Top max. 10mm Bottom max. 20mm |
| Speed and Accuracy | |
| Non-routing speed | 1000mm/sec |
| Accuracy | ±0.1 mm |
| Cutting speed | 100mm/sec max |
| Machine Information | |
| Size | 1.75m x 1.45m x 1.70m |
| Additional | Also available as a single worktable for larger PCBS. |
Key Features
Automatic Router GAR1200
- Dual tables
- Small machine footprint
- High accuracy and quality cut
- High-speed routing and throughput
- Ready for in-line automation
- High-resolution camera
- Automatic tool change
- Safety protection
- Powerful dual vacuum system
- User friendly software
- CE certification (option)
Key Industries
- Electronics
- Machinery & Manufacturing
- Semiconductor, Solar & Electronics
