Essemtec – Pick-and-Place
Designed for even more product changes per day, an even bigger range of components, increasing requirements for placement accuracy, speed and availability combined with high quality – naturally adaptive – engineering.
Most feeders per sqm in the marketplace, intelligent set-up concepts, the largest board sizes together with the most compact system sizes and the falcon software based on Essemtec`s “eez-technology“ ensure highly efficient and economical SMD manufacturing for service providers and in-house production.
Available Models
Technical Specifications

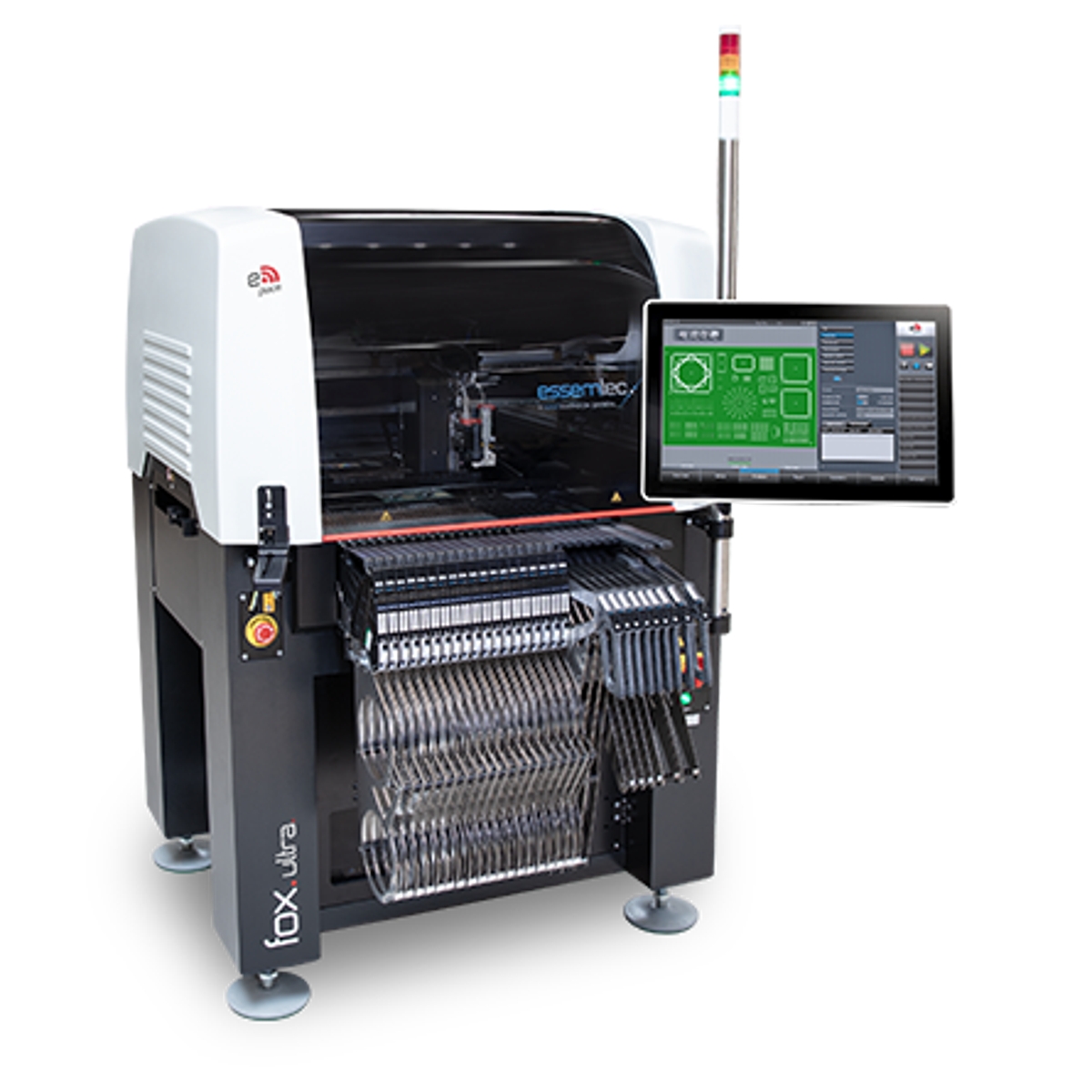

| Fox 4 | Fox 2 | Fox | |
|---|---|---|---|
| Productivity: optimum placement speed | 18’800 cph (4-axes) | 12’000 cph (2-axes) | 7’000 cph (1-axis) |
| Productivity: optimum jetting speed | – | 150‘000 Dots/h | – |
| Feeder Capacity 8 mm Tape | 200 (140 inline) | 180 (120 inline) | 180 (120 inline) |
| Component Size Range | 008004 (imp.) – 80 x 80 mm | (Note specs for constraints) | |
| Placement accuracy (x, y) | Chip ± 40 μm (3σ) / QFP ± 30 μm (3σ) | ||
| Max. PCB dimensions | 406 x 305 mm (16 x 12“) | ||
| Dimensions: machine footprint | 880 x 1090 mm (34.7 x 43“) |
Introducing – The Fox Pack – State of the art technology. Expandable in any direction. The Fox can drive up to 200 feeder, illustrating its dedication to high-mix production. Due to its small footprint and reasonable weight, the machine is ideal for use in limited space production areas even those located on upper floors.
Technical Specifications

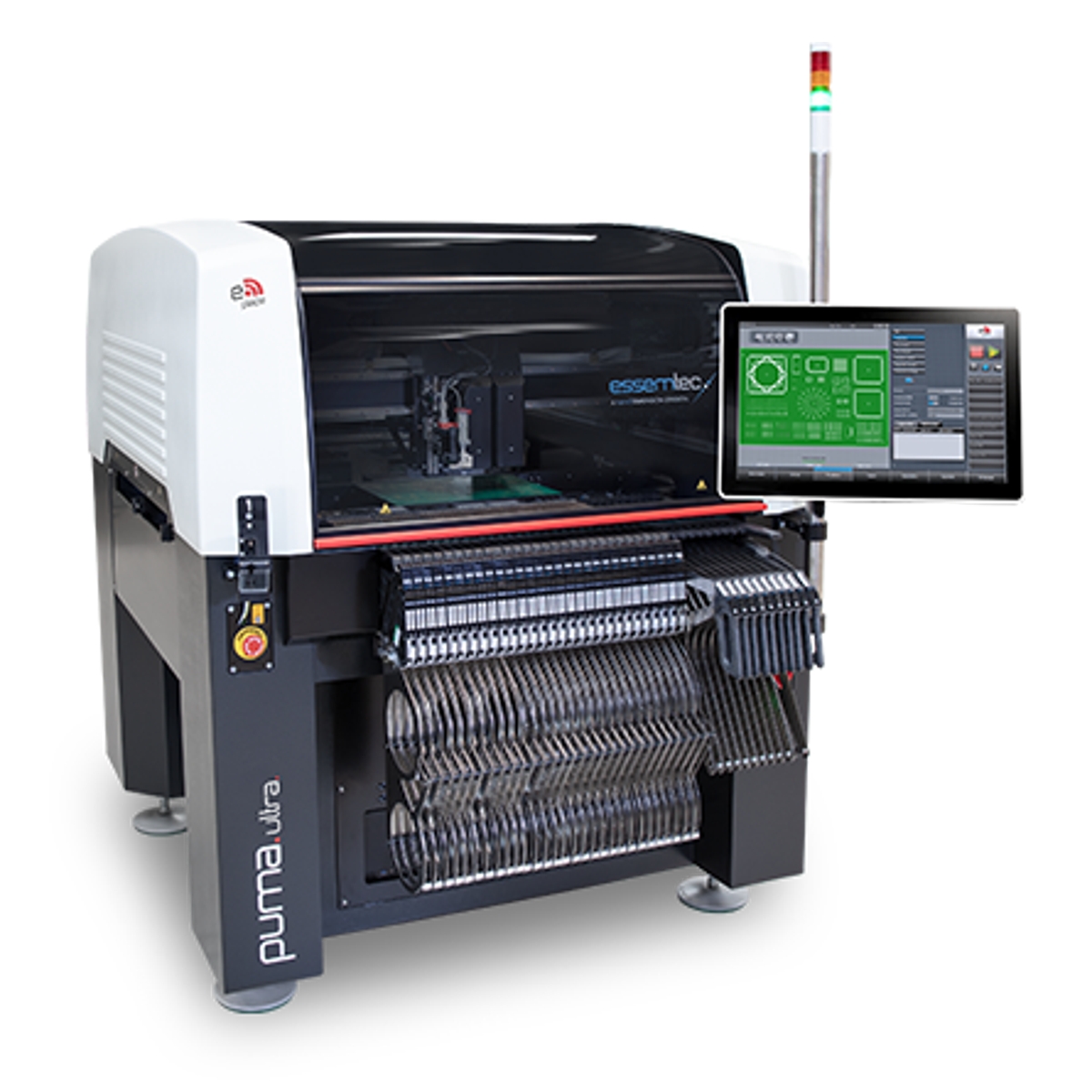

| Puma 4 | Puma 2 | Puma | |
|---|---|---|---|
| Productivity: Optimum placement speed | 18’100 cph (4-axes) | 11’200 cph (2-axes) | 6’700 cph (1-axis) |
| Productivity: Optimum jetting speed | System 180’000 dots/h – Valve 720’000 dots/h | System 180’000 dots/h – Valve 720’000 dots/h | – |
| Feeder capacity 8 mm Tape | 280 (160 inline) | 260 (140 inline) | 260 (140 inline) |
| Component size range | 008004 (imp.) – 80 x 80 mm | (Note specs for details) | |
| Placement accuracy (x, y) | Chip ± 40 μm (3σ) / QFP ± 30 μm (3σ) | ||
| Max. PCB dimensions | 560 x 610 mm (22 x 24“) | optional 1’800 x 610 mm (71 x 24“) | |
| Dimensions: Machine footprint | 1’557 x 1’357 mm (61 x 53“) |
Introducing – The Puma – State of the art technology. Expandable in any direction. Same as in nature our Puma is common modular and adaptive in all kinds of environment. With different modules the systems grow synchronously with the customer’s requirements for performance and processes. Puma is world`s best highspeed Pick-and-Place solution which can also be used in ultraflexible, rapid prototyping development.
Key Features
Essemtec Application – Puma and Fox on the Hunt
Applicationclip of our Pick-and-Place “beasts” Fox and Puma. All Scenes from our product videos raw in real-time. No fast-forward, no effects, no post stabilisation.
Essemtec – Puma
Relentless High Speed Pick-and-Place and Dispensing
Puma is worlds first high-speed pick and place solution that can be also used in the ultra-flexible prototyping development sector.
Key Industries
- Semiconductor, Solar & Electronics
Essemtec leads the industry in adaptive SMT pick-and-place equipment for both high-speed- and micro-dispensing, as well as an intelligent production…
