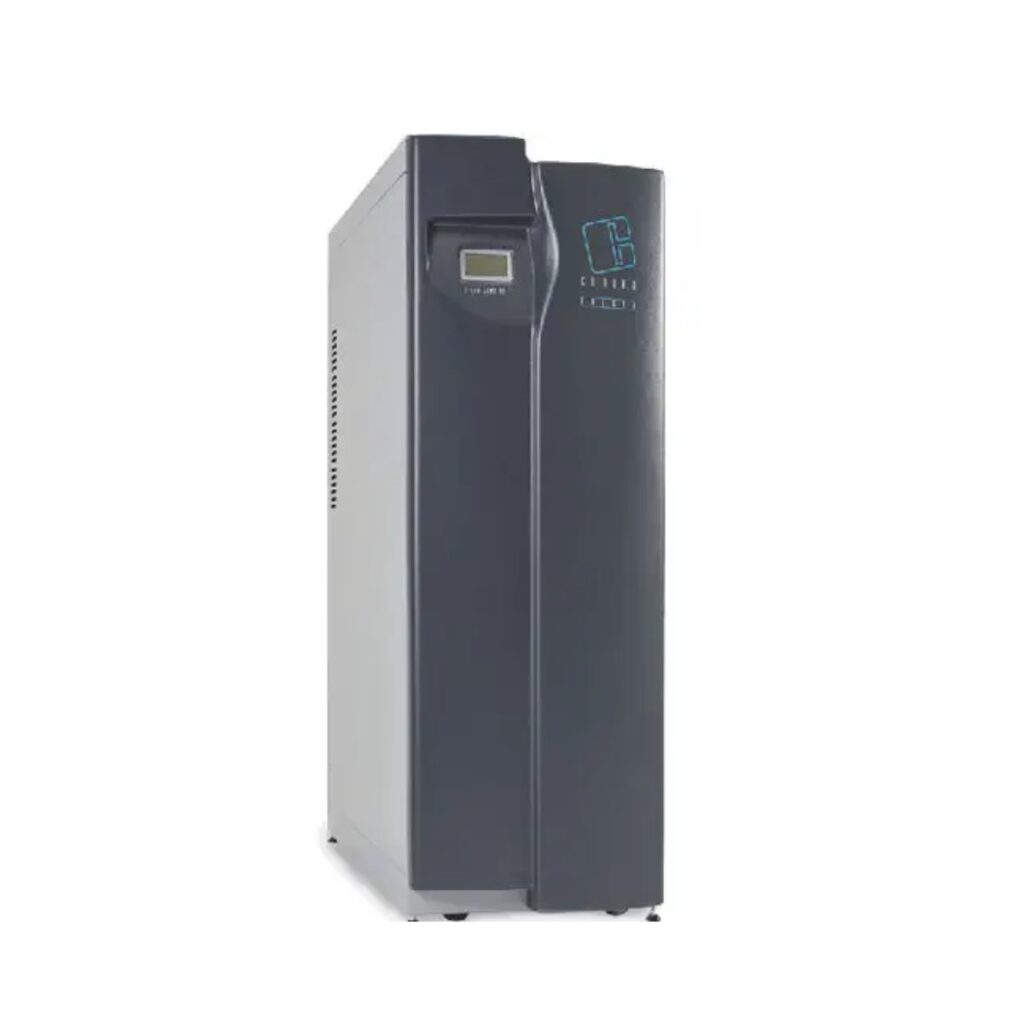

Claind – Nitrogen Generator – NiGen LCMS

  • MALAYSIA

    DKSH Technology Sdn. Bhd.
    No. 108-B-01-08, Setia Spice Canopy, Jalan Tun Dr. Awang,
    11900 Bayan Lepas, Penang
    Malaysia

    +604 645 2672

    Email

  • Claind NiGen LCMS Factsheet


  • Designed to satisfy the needs of all LCMS analyzers on the market
  • The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremelly pure nitrogen output (phthalate-free)
  • Built-in compressor oil free including 2 x 50 l. tanks for Compressed Air and Nitrogen
  • Highly reliabile Air compressor with maintenance required only after 16,000 hours of work
  • 2 gas outlets available: UHP Nitrogen and Oil Free Air

Available Models

Technical Specifications

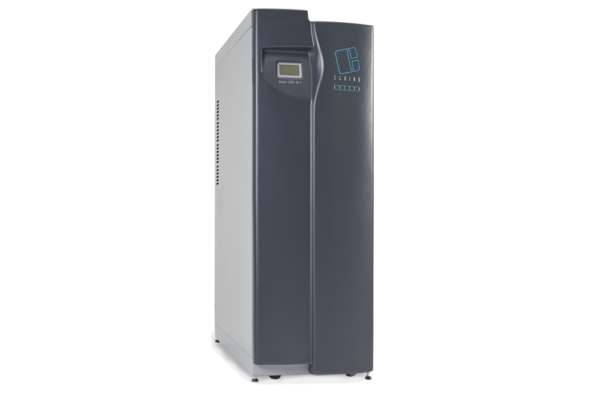

Flow RateNiGen LCMS 40-1 : 38 Nl/min ± 10% a 2000 m asl
Technologies EmployPSA CLAIND
Output Pressure0 – 7 bar/0 – 100 psi ± 3%
Purityup to 99.9%
CompressorOnly in the version 40-1
Air Input CharacteristicsParticulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi
Electrical Supply X Lcms 40-1115 Vac ± 10% 60 Hz 1,9 kW 230 Vac ± 10% 50 Hz 1,6 kW
Index Of ProtectionIP20
Noise< 50 dBA during the stand by of the compressor < 65 dBA with compressor running
Operating Temperature5°C fino 35°C (41°F fino 95°F)
Environmental Humiditymax 90% without condensation
DimensionsHeight: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight220 kg/489 lbs
Pneumatic ConnectionsCompressed air inlet: G 1/4” female Nitrogen output: G 1/4” female

Key Features

  • Designed to satisfy the needs of all LCMS analyzers on the market
  • The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremelly pure nitrogen output (phthalate-free)
  • Highly reliabile Air compressor with maintenance required only after 14,000 hours of work
  • Able to supply up to 4 LC-MS analysers
  • 40-1 version with special built-in full oil-free compressor
  • The 50 lt each of air and nitrogen internal storage tanks mean less frequent air compressor starts, hereby reducing noise levels and maintenance
  • CPU with Touch Screen Display allows the monitoring of operational status and menus with report alarms and functioning parameters

Technical Specifications

Flow RateNiGen LCMS 100 : 100 Nl/min ± 10% a 2000 m asl
Technologies EmployPSA CLAIND
Output Pressure0 – 7 bar/0 – 100 psi ± 3%
Purityup to 99.9%
CompressorOnly in the version 40-1
Air Input CharacteristicsParticulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi
Electrical Supply X Lcms 100115/230 Vac ± 10% 60/50 Hz 50 W
Index Of ProtectionIP20
Noise< 50 dBA during the stand by of the compressor < 65 dBA with compressor running
Operating Temperature5°C fino 35°C (41°F fino 95°F)
Environmental Humiditymax 90% without condensation
DimensionsHeight: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight200 kg/444 lbs
Pneumatic ConnectionsCompressed air inlet: G 1/4” female Nitrogen output: G 1/4” female

Key Features

  • Designed to satisfy the needs of all LCMS analyzers on the market
  • The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremelly pure nitrogen output (phthalate-free)
  • Highly reliabile Air compressor with maintenance required only after 14,000 hours of work
  • Able to supply up to 4 LC-MS analysers
  • The 50 lt each of air and nitrogen internal storage tanks mean less frequent air compressor starts, hereby reducing noise levels and maintenance
  • CPU with Touch Screen Display allows the monitoring of operational status and menus with report alarms and functioning parameters

Key Industries

  • Aerospace
  • Agriculture
  • Automotive
  • Biopharmaceutical and Biotechnology
  • Chemical
  • Construction
  • Cosmetics & Personal Care
  • Defense
  • Die & Mould
  • Education & Academics
  • Electronics
  • Energy
  • Environmental
  • Food & Beverage
  • Luxury
  • Machinery & Manufacturing
  • Medical
  • Mining & Minerals
  • Oil & Gas
  • Optical
  • Paper & Wood
  • Pharmaceutical
  • Polymers, Plastics and Rubbers
  • Powders & Pigments / Coating
  • Railway
  • Semiconductor, Solar & Electronics
  • Service
  • Shipbuilding
  • Textile
  • Wholesale & Retail

Brand

Claind

Established in 1979, Claind produces hydrogen, nitrogen and zero air generators. Its headquarters is in Lenno, on the shores of Lake Como, where all product development, production and administration activities are carried out. The customers who Claind targets can be broken down into three main categories: analysis laboratories, food and beverage companies and laser cutting companies.

Over the years Claind’s staff has received and paid back the confidence of more than 3,000 customers with over 20,000 installations worldwide.

The principle that guides every business decision is the desire to achieve customer satisfaction, in this way strengthening a relationship based on trust that goes far beyond mere contacts for technical and commercial aspects.
