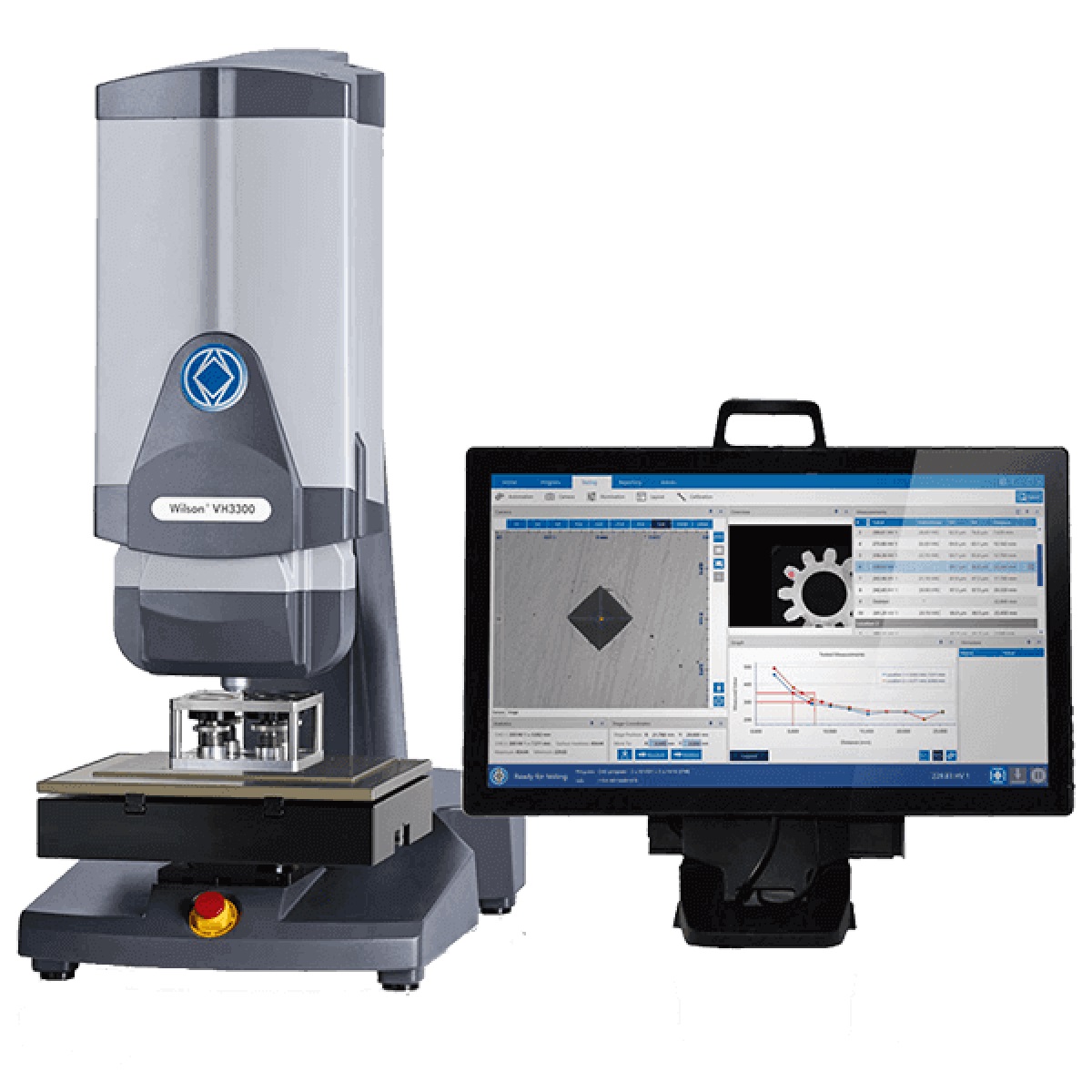

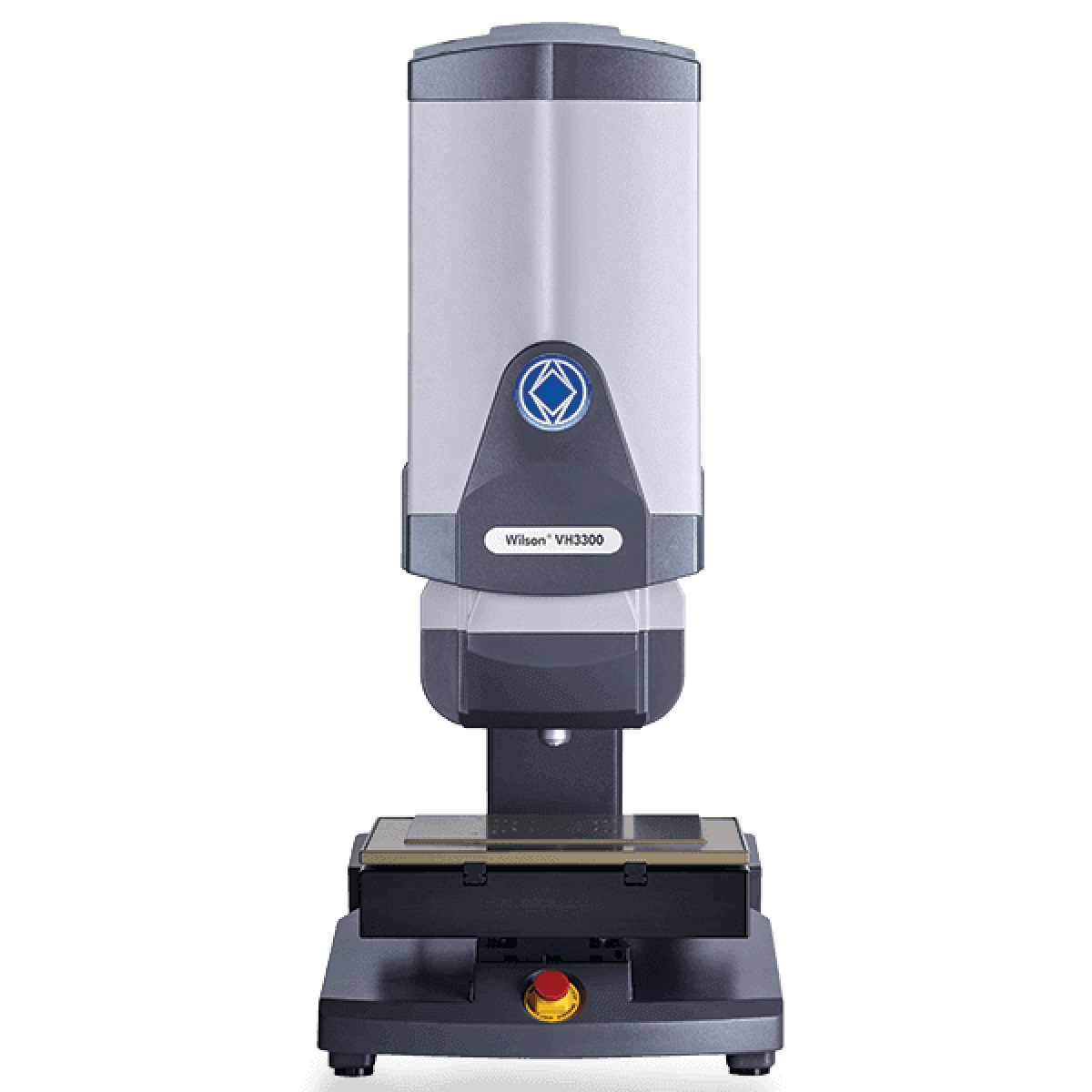

Buehler – Wilson VH3300 Automated Hardness Testing System
This Wilson VH3300 fully automated hardness tester provides an integrated system for your complete range of applications. Its fast, six position turret accommodates a three-indenter design with a configurable load range of 10gf to 50kgf of force and optional overview optics. Paired with DiaMet Software, the VH3300 is built to meet your application needs today, tomorrow, and into the future.
The Wilson VH3300 offers an advanced, fully automated hardness tester for fulfilling both Vickers and Knoop hardness testing requirements. Designed for all users from novice to expert, it utilizes quick and straightforward operation without compromising the flexibility required for advanced applications. The VH3300 is not only a solution for your current needs, but also a reliable choice for future applications.
Key Features
Ease of Use
- Ease of operation is facilitated by both the intelligently designed machine and the user-friendly DiaMet software
Flexible
- 6 position star turret to achieve up to a load range from 10gf to 50kgf when configured
- Illuminated and calibrated optional overview optics
- Designed for testing to Vickers, Knoop, and Brinell standards
- Select from a wide range of objectives and their fields of view
Increased Up-time
- Collision Resistant System preventing indenter or objective damage
- Built-in overshoot protection
- All components and software designed, manufactured, and integrated by Buehler
Technical Specifications
| Description | Wilson VH3300 |
| Scales | HV, HK |
| Turret | Automatic 6 position incl. overview |
| Indenter positions | Up to 3 (select) |
| Test Load (select) | Small loadcell (10N) 10gf – 1kgf Medium loadcell (100N) 50gf – 10kgf Large loadcell (500N) 0,5kgf – 50kgf |
| Test Load Accuracy | ±1.5% < 200g, ±1% > 200g |
| Force Application | Load Cell |
| Dwell Time | 1 – 999 seconds |
| Standard Compliance | ASTM E384, E92; ISO 6507, 9385, 4545 |
| Magnification Range | 30X – 2000X with digital zooming |
| Overview Camera (optional) | 0.25 x 0.25in [6 x 6 mm] |
| Light Source | LED |
