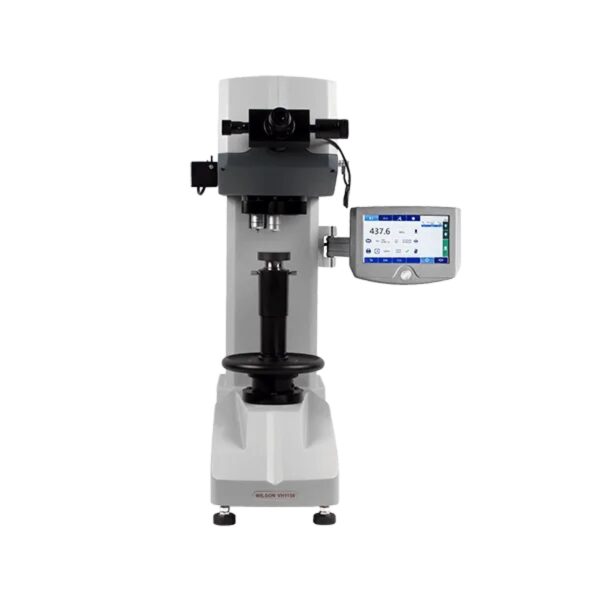

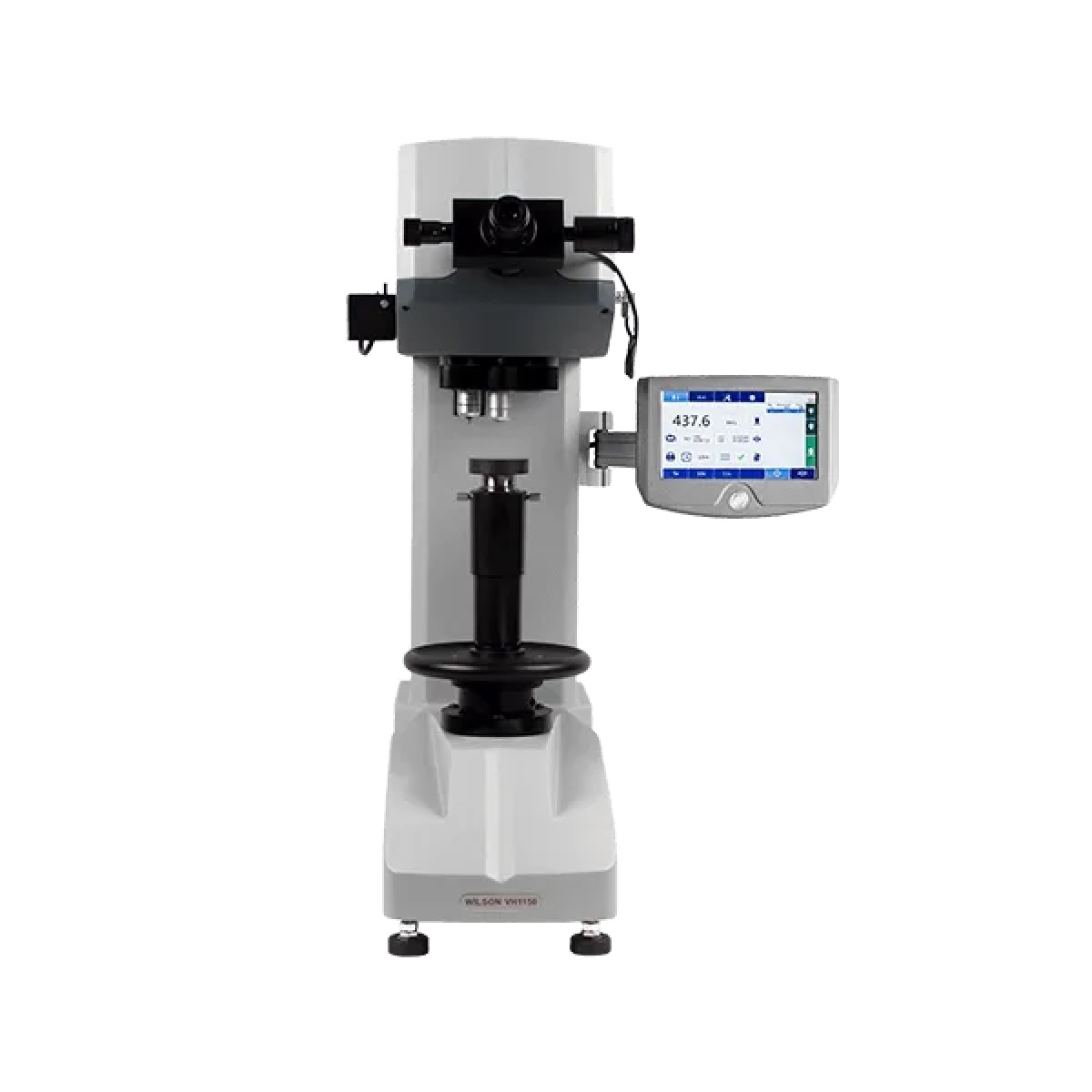

Buehler – Wilson VH1150 Macro Vickers Hardness Tester
Offering a unique load range of 300gf – 50kgf in a single machine, the Wilson VH1150 is the ultimate macro-Vickers hardness tester. Experience user-friendly operation with automatic load selection, replacing the manual knob with a durable motor. The motorized turret is seamlessly integrated into a fully automatic test cycle. Add an optional high-resolution camera for effortless hardness tests using DiaMet software.
The Wilson VH1150 Macro Vickers Hardness Tester is the ultimate macro-Vickers hardness tester. Boasting a unique load range of 300gf – 50kgf, enjoy its user-friendly operation with automatic load selection and a seamlessly integrated motorized turret in a fully automatic test cycle. Use its Smart-UI touchscreen controls or opt for a high-resolution camera for easy hardness tests through DiaMet software.
Key Features
Versatile
- Segment leading load range – 0.3 – 50 kgf over ten individual load steps
- High quality optical system for unparalleled image quality
Easy to Use
- Integrated, motorized turret for a completely automatic test cycle
- Menu-controlled automatic load selection eliminates the need for a load selector knob
Dynamic Software Options
- Complete your system with optional DiaMet automation software
Technical Specifications
| Description | Wilson VH1150 |
| Scales | HV |
| Test Load range | 300gf – 50kgf |
| Test load steps | 0.3 – 0.5 – 1 – 2 – 3 -5 – 10 – 20 – 30 – 50kgf |
| Test Load Accuracy | ±1.5% < 200g, ±1% > 200g |
| Force Application | Motor controlled dead weight |
| Dwell Time | 1 – 99 seconds |
| Standard Compliance | ASTM E384 & E92; ISO 6507 |
| Turret Motorized | 5- position turret |
| Objectives | 10x, 20x LWD standard 5x, 40x, 50x & 100x LWD optional |
| Eyepiece | Digital, resoltion 0.01µm @200x |
| Light Source | LED |
| Operating Temperature | 50 – 100°F [10 – 38°C] |
| Humidity | 10 – 90% non-condensing |
| Power | 65W – 100-240VAC, 50/60Hz |
