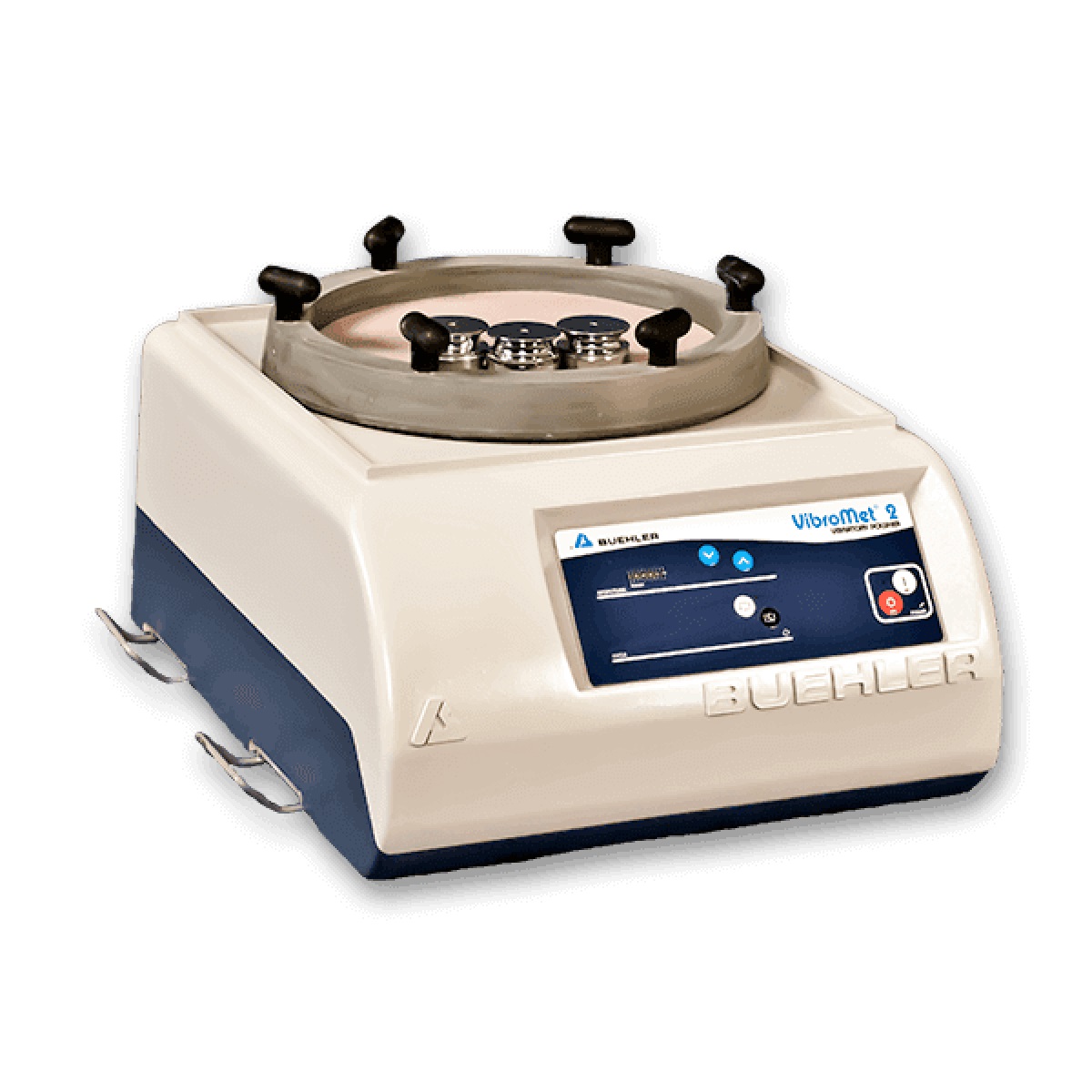

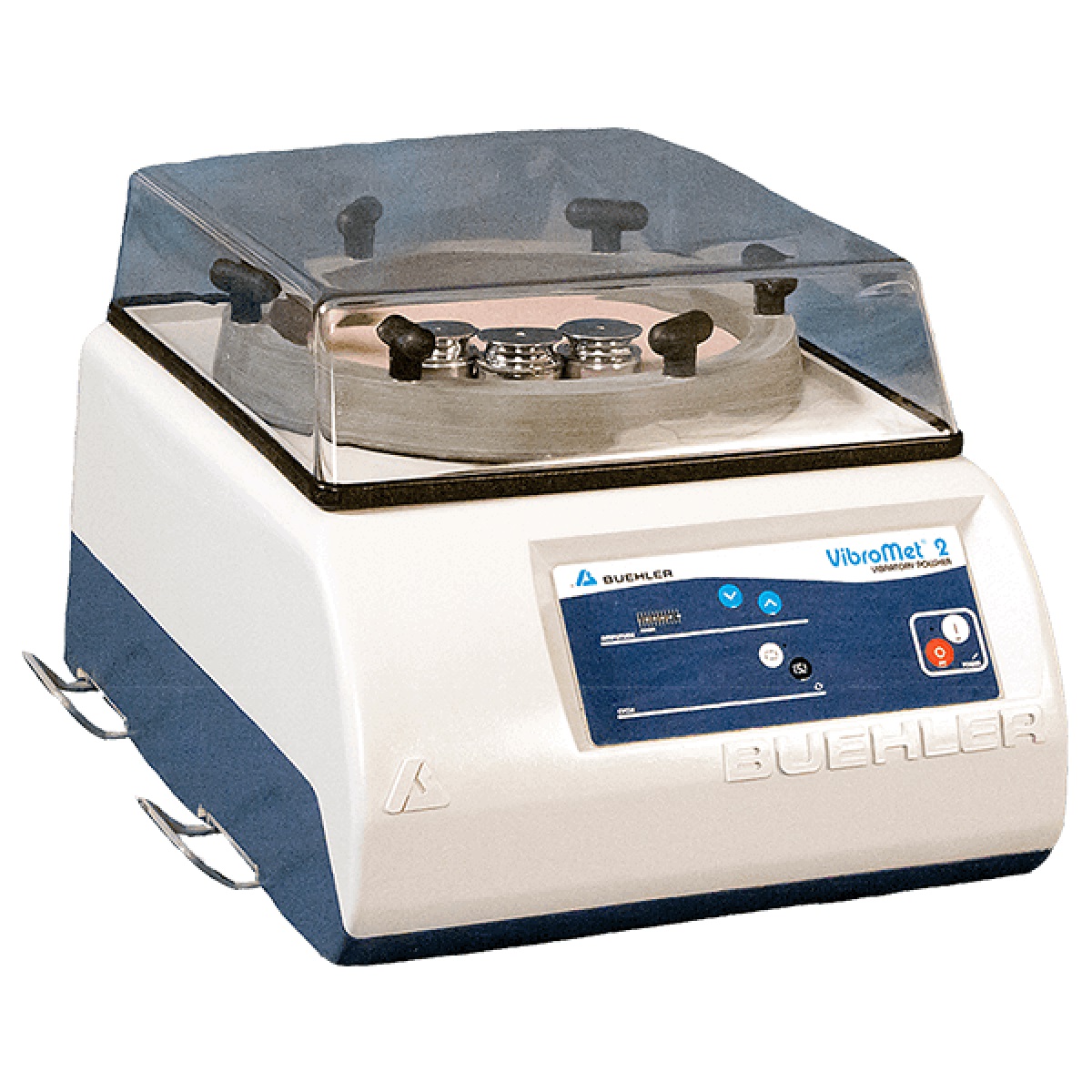

Buehler – VibroMet 2 Vibratory Polisher
Equipped with unique motor technology, the VibroMet 2 achieves the highest degree of surface quality possible for a mechanical polisher. Prepare samples for high magnification and SEM analysis by removing even the smallest imperfections. Choose the experts at Buehler, who created this technology.
The VibroMet 2 vibratory polisher, with a large, 12in [305mm] working surface for multiple samples, is designed to prepare high quality polished surfaces for a wide variety of applications, including EBSD analysis. The horizontal oscillation technique produces exceptional flatness and a stress-free surface without need for the hazardous electrolytes required by electro-polishers. Combine with MasterMet 2 colloidal silica suspension for unparalleled results.
Key Features
Unmatched Surface Quality and Consistency
- Flat working surface produces flat and even polishing
- Motor oscillates at 7200 rpm; maximizes contact with polishing cloth for highly effective polishing
- High quality polish makes it ideal for Electron Back-Scatter Diffraction (EBSD) and Atomic Force Microscopy (AFM)
Easy to Use
- Adjustable amplitude to adjust for sample size, number of samples, and material
- Quick load sample holders
Technical Specifications
| Description | VibroMet 2 |
| Dimension | 21.5in[546mm] x 23in[584mm] x 14.5in[368mm] |
| Weight | Approx. 175lbs [80kg] |
| Frequency | 50/60 |
| Voltage | 115/220 |
| Phase | 1 |
