Buehler – PetroThin Precision Sectioning and Thinning Machine
Specifically designed machine for re-sectioning and creating high quality thin sections of petrographic samples, bone, ceramics, concrete and more for high magnification analysis.

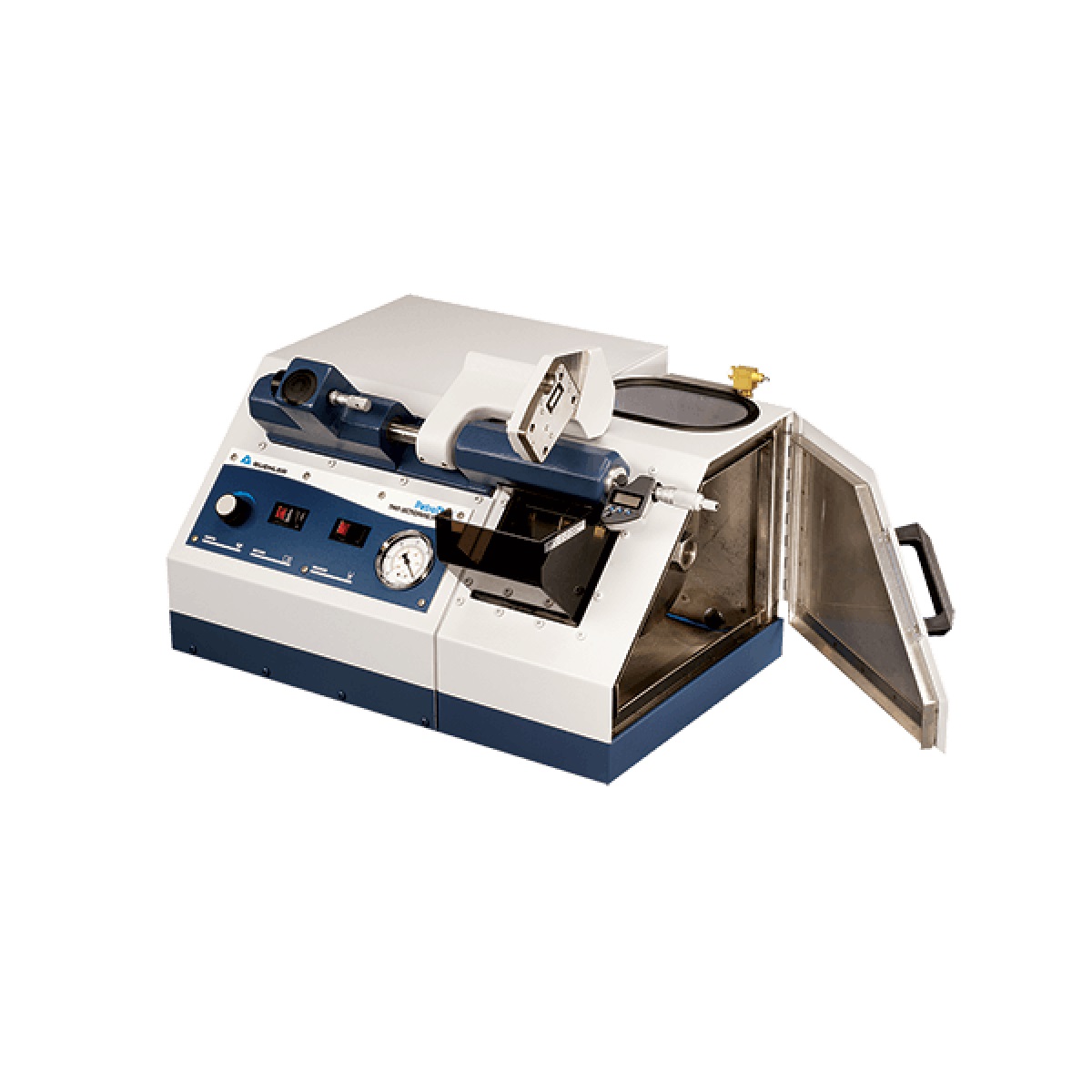

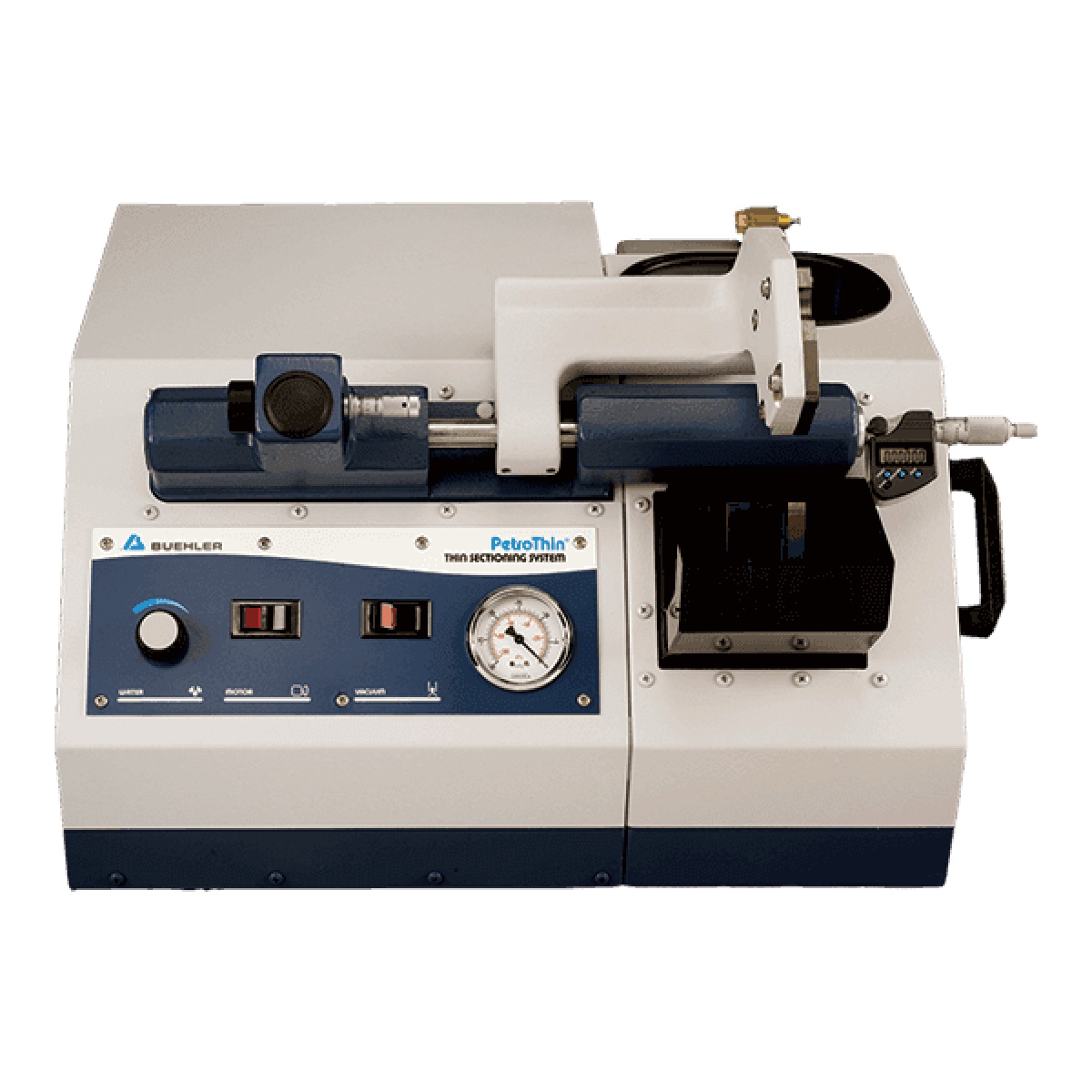

The PetroThin Precision and Thinning Section Machine is a versatile, 8in [203mm] tabletop cutter and grinder, perfectly suited for crafting thin sections of a wide range of materials, including bone, ceramics, concrete, petrographic samples, and more. Utilizing a diamond blade for re-sectioning and a cup grinding wheel for reducing to thin sections, this machine prioritizes precise control to deliver results that conventional sectioning and grinder-polisher equipment simply can’t. For optimal results, complement your PetroThin with Buehler’s high-performance diamond / CBN blades and cup grinding wheels for a solution that sets the standard.
Key Features
High Quality Thin Sections
- PetroBond apparatus simplifies sample mounting, preparing them for processing
- Precision blade sections larger samples down to size, ready for grinding
- Cup grinding wheel creates ultra-thin sections for detailed analysis
Precise User Control

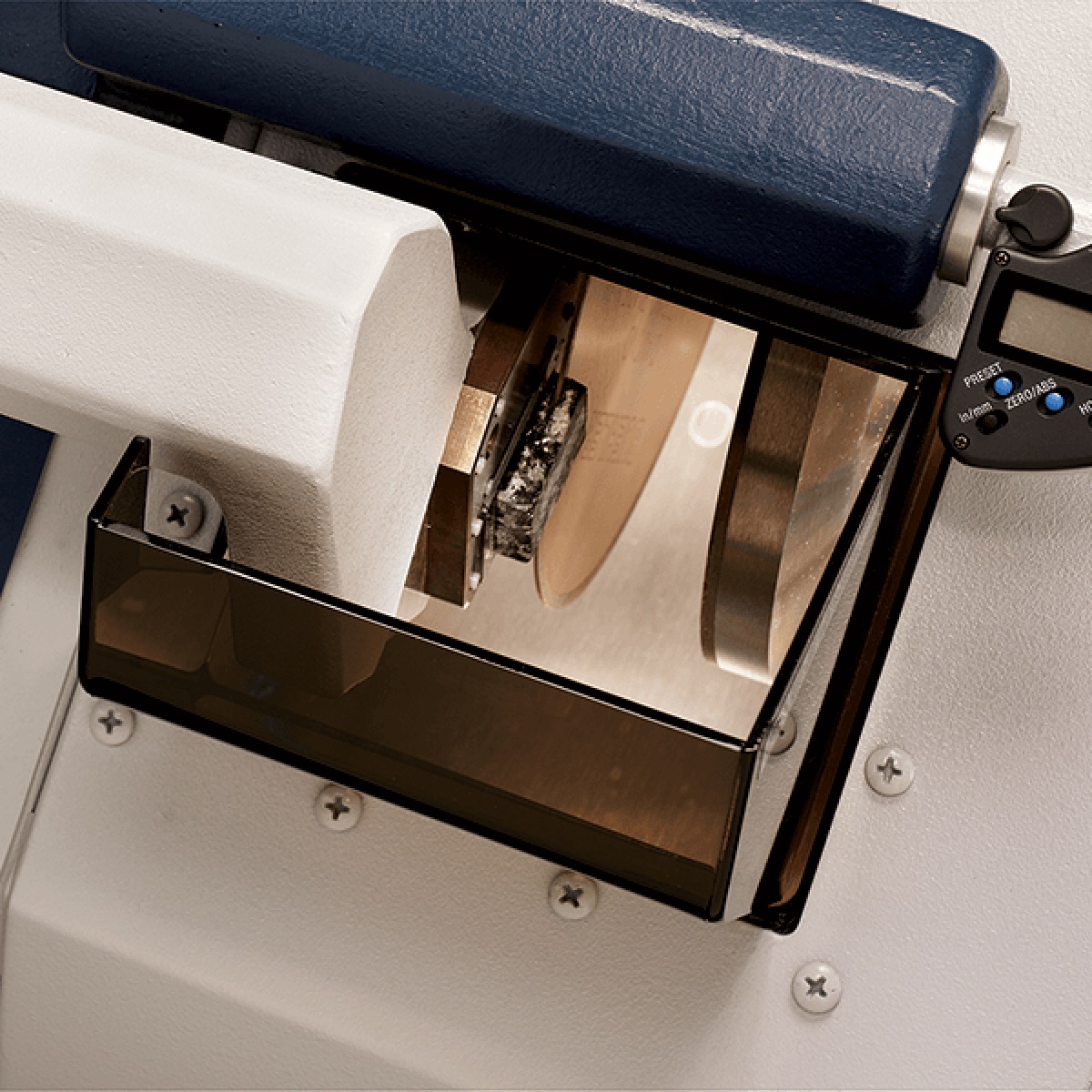

- Precision micrometer facilitates gradual material removal, enabling consistent creation of thin sections
- Vacuum pump arm quickly secures samples in place
- Sample arm seamlessly moves between cutting and grinding positions
Technical Specifications
| Description | PetroThin Precision Sectioning & Thinning Machine |
| Voltage/Frequency | 115VAC @ 60Hz, 220VAC @ 50Hz, 1 phase |
| Motor Power | 1/3 Hp [250W] |
| Wheel Diameter | 8in [203mm] |
| Precision Grinding | ±5µm |
| Wheel Speed | 38-1450-160: 220rpm 38-1450-250: 2100rpm |
| Compliance | CE |
