Buehler – OmniMet Software Modular Imaging System

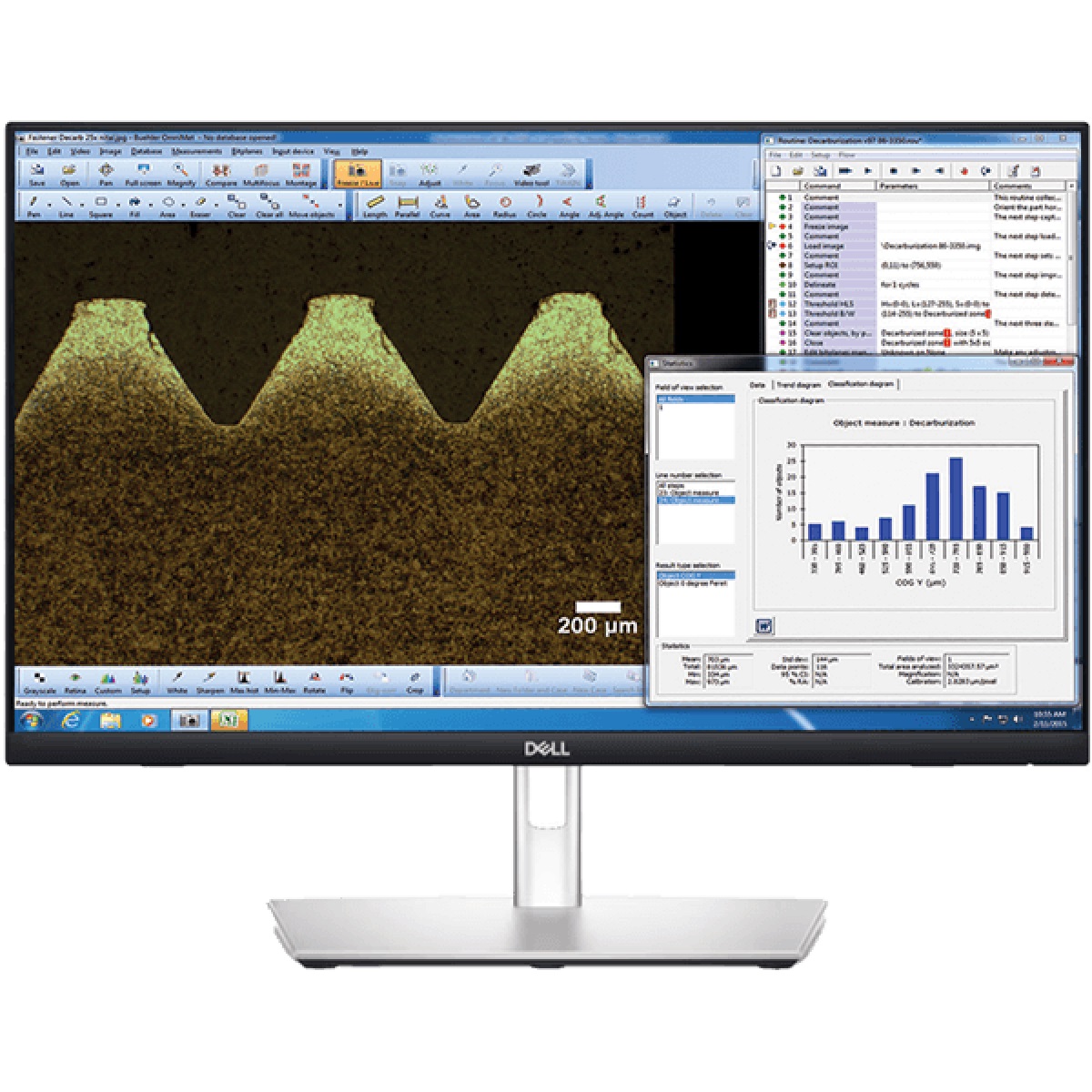

OmniMet software solutions seamlessly integrates microscopes, cameras, and image analysis software through an intuitive interface. Effortlessly view and analyze standard format images directly from your calibrated microscope or import them into OmniMet for precise analysis. With varying levels of flexibility, functionality, and analytical power, OmniMet caters to diverse metrology needs for image data archiving and quantitative analysis.

Key Features

Point-and-click Measurements

• Make simple to complex measurements with intuitive menu options
• Reduce steps with application specific Modules and Scripts
• Comply to national standards with the click of a button

Automated Imaging Analysis

• Create or run pre-programmed Scripts to eliminate repetitive steps
• Improve quality control by following the same process each time
• Export data to Word or Excel automatically

Flexible Modular System

• Choose from a variety of Modules and Scripts to customize according to application
• Choose level of automation with six different Editions
• Upgrade functionality from one Edition to another at any time

Seamless Integration

• Connect to a multitude of cameras, microscopes, and motorized stages
• Calibrate captured images to equipment magnification
• Purchase as a system for a turnkey solution

Technical Specifications

OmniMet Software
Software Description	Viewer	CnM	Basic	Advanced	Express	Enterprise
Capture
Load and Save	□	□	□	□	□	□
Brightness, Auto-White Balance, Color Correction	□	□	□	□	□	□
Digital Zoom, Rotate, Calibration & Annotation	□	□	□	□	□	□
Weld Testing		□	□	□	□	□
Motorized Stage Controller			□	□	□	□
Capture Modules (optional)			□	□	□	□
Measure
Standard Measurements: Length, Area, Radius, Count, Parallel Lines	□	□	□	□	□	□
Advanced Measurements: 3-point Circle, Adj. Angle, Polygon				□	□	□
Advanced Measurement Modules (optional)				□	□	□
Color Threshold (size, intensity), 16 Bitplanes					□	□
Automation Capable: Read & Run Scripts					□	□
ScriptEditor: Write, and Edit Scripts						□
Application Specific Scripts (optional)					□	□ *
Report
Report Data, Report Generator (requires Microsoft® Office)			□	□	□	□
Results Window with measurements log				□	□	□
Organize
Database Interface	□		□	□	□	□
Database Creation & Administration			□	□	□	□
□ Included with package   □ Optional module (purchased separately)  * OmniMet Enterprise comes with a selection of Scripts.
