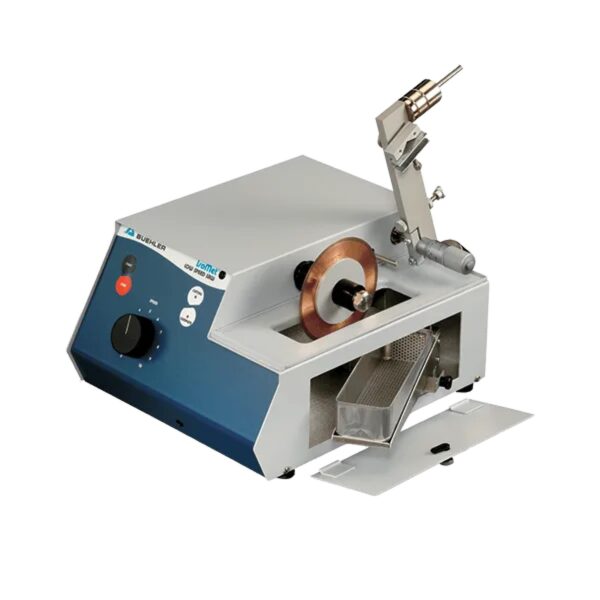

Buehler – IsoMet Low Speed Gravity-fed Precision Sectioning Machine
This simple, gravity fed machine is ideal for small samples and uses a maximum 5″ [127mm] blade. What this machine lacks in speed, it makes up for in the exceptional cut quality.
The IsoMet Low Speed precision cutter is a compact gravity-fed precision saw, 5in [127mm] tabletop machine that delivers the gentlest cut for your sample. Its precision micrometer and user-friendly controls give total control to the user. Pair with Buehler’s diamond / CBN blades and IsoCut coolant for a comprehensive solution with the highest level of quality.
Key Features
Exceptional Precision and Quality

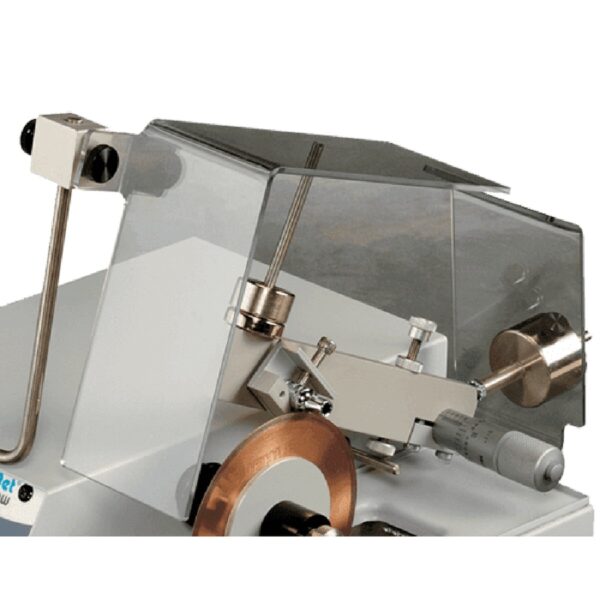

- Gravity-fed arm minimizes sample stress ensuring a delicate cut
- Precision micrometer guarantees accurate sample width
- Specialized sample chucks for the smallest and most delicate samples
Easy to Use
- Easily adjustable cutting arm allows users to change vises quickly
- Adjustable motor speed up to 300rpm for various applications
- Removable catch tray for easy retrieval of cut sample
Technical Specifications
| Description | IsoMet Low Speed |
| Frequency | Universal |
| Voltage | 115, 220 |
| Phase | 1 |
| Cutting capacity | 1.50[in], 38.00[mm] |
| Wheel diameter | 5.00[in] |
| Controls | Push Button |
| Cut action | Gravity fed chop |
| Programmability | No |
| Serial capabilities | No |
| Wheel diameter | 127[mm] |
| Rpm @ 60 | Hz: 300 |
