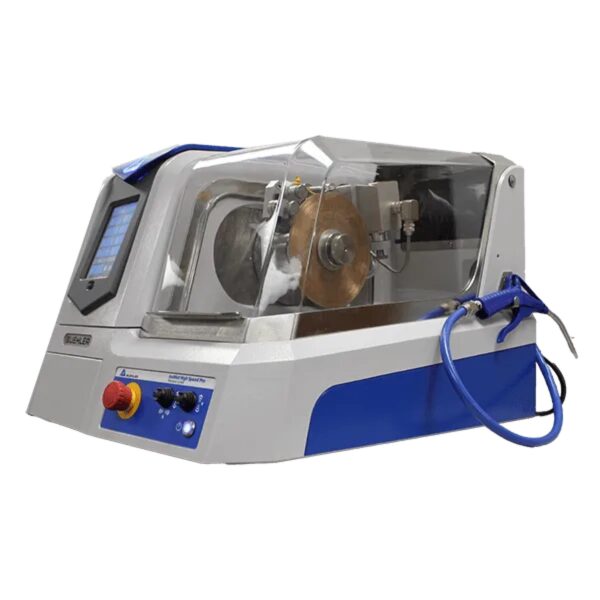

Buehler – IsoMet High Speed Pro Automatic Precision Sectioning Machine

The IsoMet High Speed Pro automatic precision saw is a versatile, 8in [203mm] tabletop cutter, perfect for achieving both speed and precision in your cutting process. Engineered with advanced features, this machine offers user-friendly operation while delivering the exceptional surface quality essential to your workflow. Pair with Buehler’s diamond / CBN blades and Cool 3 coolant for a comprehensive solution with unmatched quality.

Key Features

Unparalleled Precision and Quality

• Precise feed rate, cut length and positioning measurements to get the exact cut you need
• Automatic dressing ensures a clean blade and consistently high quality
• Stored methods ensure sample-to-sample consistency
• SmartCut prevents overloading the cutting force on the part

Speed in Cutting and Setup

• Powerful 2.7hp [2kW] motor enables fast cutting
• Rapid Rail system makes vising setup lightning fast
• Abrasive vising table can be quickly swapped in for larger samples
• Streamline your workflow with stored methods to set your ideal parameters with a single button

Intuitive Control at Your Fingertips

• 3 axis control using joysticks

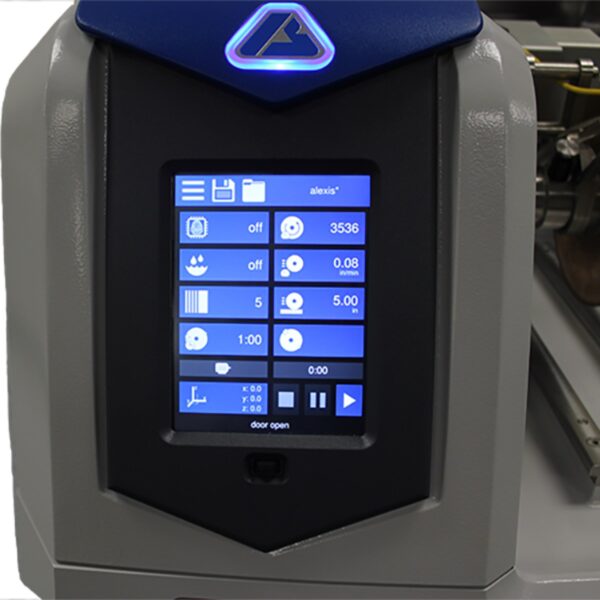

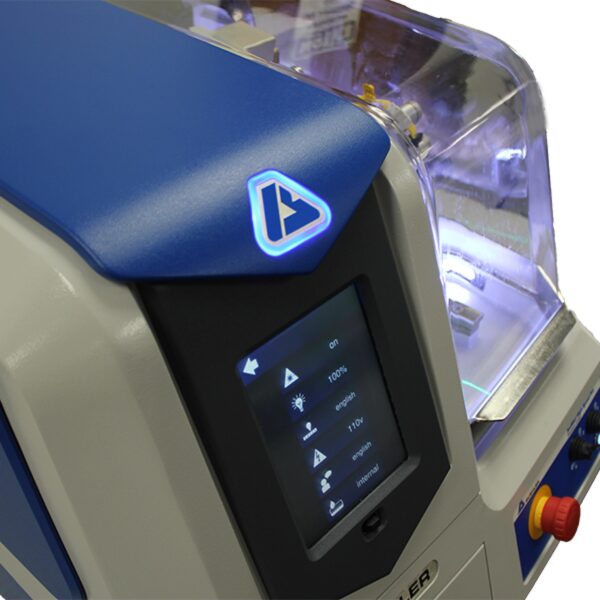

• Easy to use touchscreen with advanced programming capabilities
• High range of movement makes setup easy

Technical Specifications

Description	IsoMet High Speed Pro
Cut Operation	Automatic, Manual, or SmartCut control Linear Blade Feed
Units	English and Metric
Blade Movement Axis	Horizontal and Linear (X, Y, Z)
Display	6.5in LCD Display with LED Backlighting
Controls	Touch Screen; Precision Controllers
Lighting	2 LED Strip Adjustable brightness
Programming	Retains Last Settings Serial Sectioning
Laser	Optional Green Laser
Blade Position Settings	Horizontal: 0 – 2in [0 – 50mm]
Cut Length Range	.01 – 7.25in [1mm – 184mm]
Cut Length Increment	0.01in [.25mm]
Feed Rate Range	.04 – 1in/min [1.2 – 25.4mm/min]
Feed Rate Increment	0.01in increments [1mm increments]
Blade Speed	1000-5000rpm
Cut Capacity (Diameter)	2.8in [71mm]
Coolant Systems	Built-in Recirculating System, 1gal [4L]
Flow Rate Wash Down Hose	2L/min
Flow Rate on Blade	2.5L/min

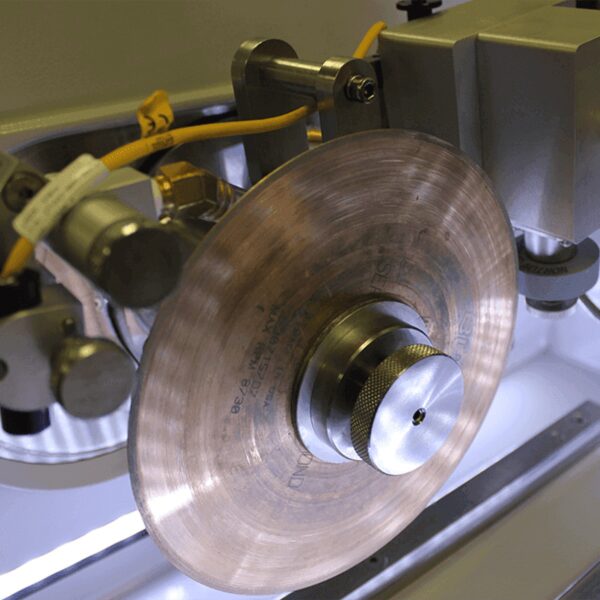

Wafering Blade Diameters	3 – 8in [76 – 203mm]
Abrasive Blade Diameters	5 – 8in [127 – 200mm]
Cut Chamber Size	9in x 20in [228mm x 508mm]
Machine Dimensions	Width: 24in [610mm]  Depth: 30in [762mm]  Height (Hood Opened): 36in [915mm]  Height (Hood Closed): 19in [483mm]
Weight	157Lbs[71.2kg]
Motor Power at 220VAC	2.68Hp [2kW]
Main Power	100 – 240VAC, 50-60Hz, 1 Phase
Noise Level	58dB
Safety Features	Interlock Hood Switch, Emergency Stop
Compliance	CE Directives
