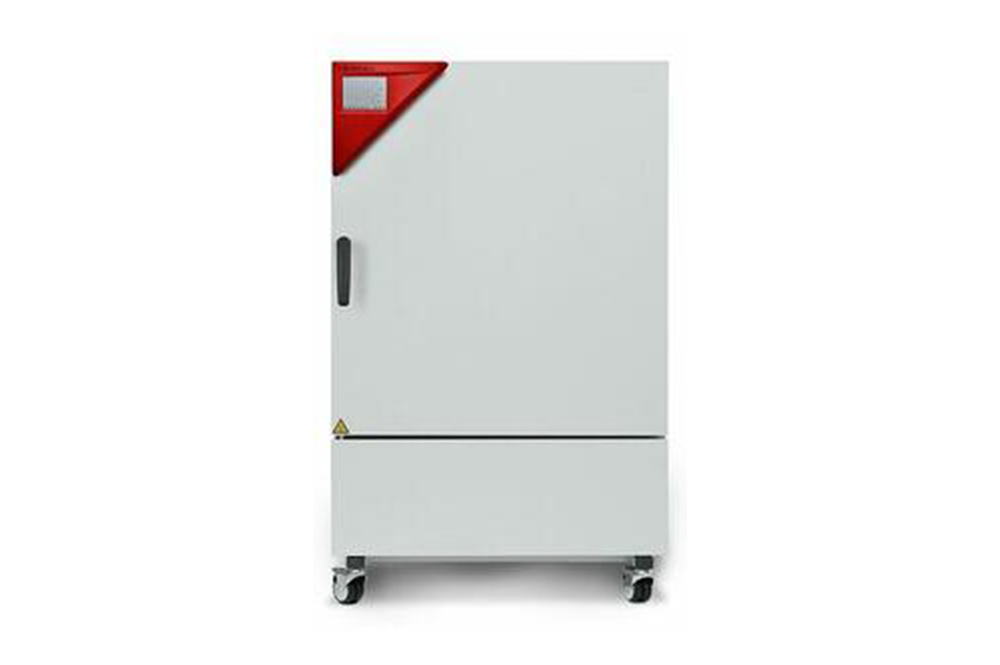

Binder – Growth Chambers – Series KBWF – With light and humidity
The BINDER climate chamber with illumination of the KBW series achieves homogeneous light distribution with its natural illumination. That allows this climate chamber to create constant lighting and temperature conditions.
Key Features
- Patented lighting system ensures homogeneous light distribution
- Flexible positioning of illumination cassettes, three different light spectra, individually selectable
- Pressure humidification with fast response times
Climate Chambers with Light and Humidity for Perfect Climate Simulation
Climate chambers with light and humidity from BINDER provide ideal growth conditions for plants and other organisms. The growth chambers in the KBWF series have been designed to allow light, humidity, and temperature to be set so as to simulate natural conditions. The temperature can be adjusted with the accuracy of a tenth of a degree between the range of 0 °C to 70 °C, while the humidity can be displayed accurately at increments of a tenth of a percent. The humidification and dehumidification system is controlled by a reliable microprocessor and humidity is regulated with a capacitive humidity sensor and steam humidification. Extensive program controls allow climate conditions to be simulated constantly and very accurately, even over extended periods of time.
Climate Chambers With Light and Humidity for a Wide Range of Tasks
The KBWF series growth chambers come with illumination cassettes as standard – they can be positioned variably and each have five daylight fluorescent tubes.
Plant growth tubes with the ideal spectrum for photosynthesis are available as an option for simulating perfect climate conditions within plant biotechnology, the timber and forestry industry, and the agricultural industry. The climate chambers with light and humidity are also suitable for use within the pharmaceutical and chemical industry, for basic research in quality assurance, and for material testing.
Climate chambers with light and humidity from BINDER are extremely user-friendly as well as guaranteeing constant and accurate performance. The units come with an LCD color monitor and a controller featuring interval programming.
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |
| KBWF 240 | 925 x 1465 x 800 mm | 650 x 785 x 485 mm | 214 kg | 247 L |
| KBWF 720 | 1250 x 1925 x 890 mm | 973 x 1250 x 576 mm | 374 kg | 700 L |
Available Models
- Temperature range: 0 °C to 70 °C
- Temperature range with light: 10 °C to 60 °C
- Humidity range: 10 % to 80 % RH
- 2 positionable illumination cassettes, each with 5 fluorescent tubes
- APT.line™ preheating chamber technology
- Adjustable fan speed
- Humidity regulation with capacitative humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- Display via color LCD monitor
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
- 60 Hz version on request
- Temperature range: 0 °C to 70 °C
- Temperature range with light: 10 °C to 60 °C
- Humidity range: 10 % to 80 % RH
- 3 positionable illumination cassettes, each with 5 fluorescent tubes
- APT.line™ preheating chamber technology
- Adjustable fan speed
- Humidity regulation with capacitative humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Display via color LCD monitor
- Tight-sealing inner door made of safety glass (ESG) with special TIMELESS coating
- 3 stainless steel racks
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
- 60 Hz version on request
