Binder – Drying and Heating Chambers – Series FED Classic.Line – With forced convection and enhanced timer functions
BINDER heating chambers of the FED series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.
Key Features
- Uniform drying conditions thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
BINDER heating chambers with forced convection are available in a range of different versions. The Classic.Line FED series features heating chambers with forced convection and enhanced timer functions that promise high quality and reliability. However, it is in their performance that these heating chambers really impress. Not to mention that they can be flexibly adapted to suit specific requirements. Heating chambers with forced convection are ideal for a range of tests, for example, as well as being the top choice for drying, sterilization, and storage in industrial and research laboratories. Heating chambers with forced convection in the FED series operate within a temperature range of between 5 °C and 300 °C. They feature the patented APT.line™ preheating chamber technology that enables highly homogeneous temperature control with forced convection. Test conditions are consistent across the entire usable space, regardless of the amount or size of the sample. The FED series heating chambers come with enhanced timer functions, which can be used to control temperature parameters and convection conditions as required, and the fan can be controlled digitally.
Impressively Versatile Heating Chambers With Forced Convection From BINDER
BINDER heating chambers with forced convection and enhanced timer functions are well-suited to a wide range of industry, research, science, and quality assurance applications. They combine high levels of functionality, performance, and quality with excellent usability. The modern design of these innovative heating chambers makes for a further advantage. The FED series is made up of impressively versatile units that meet the requirements of modern laboratories and guarantee maximum process reliability.
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |

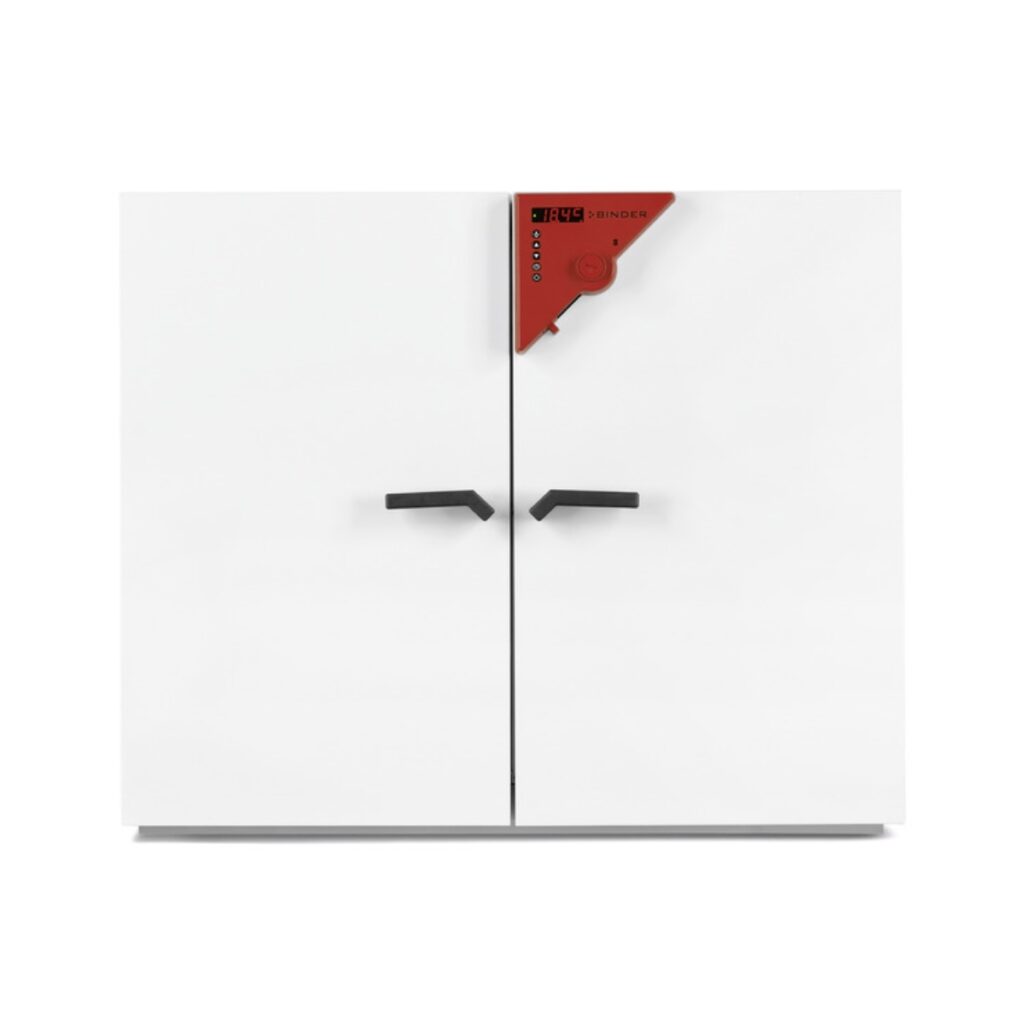

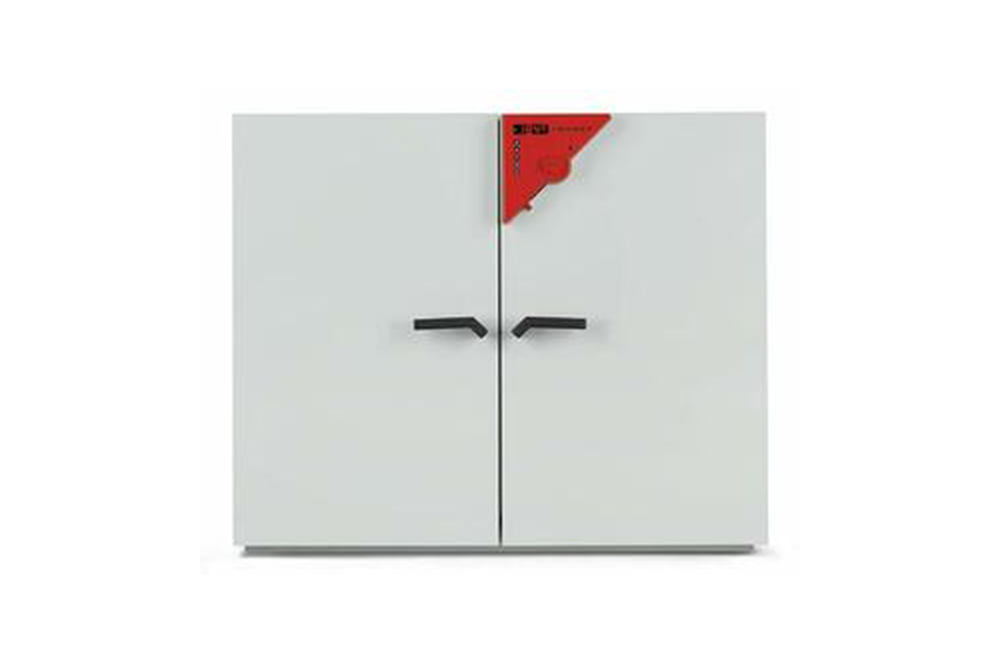

| FED 400 | 1235 x 1025 x 765 mm | 1000 x 800 x 510 mm | 145 kg | 400 L |
Available Models
- Temperature range: room temperature plus 5 °C to 300 °C
- APT.line™ preheating chamber technology
- Adjustable fan speed
- Adjustable exhaust air flap
- Controller with expanded timer functions
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Computer interface: RS 422
Multi Management Software APT-COM™
Binder From the Inside – See What Happens Behind the Scene
Key Industries
- Education & Academics
- Food & Beverage
- Pharmaceutical
- Service
